Section 5 (Fuel Charging And Controls - Turbocharger - 3.5L ECOBOOST (235KW/320PS))
>>
Description And Operation
>>

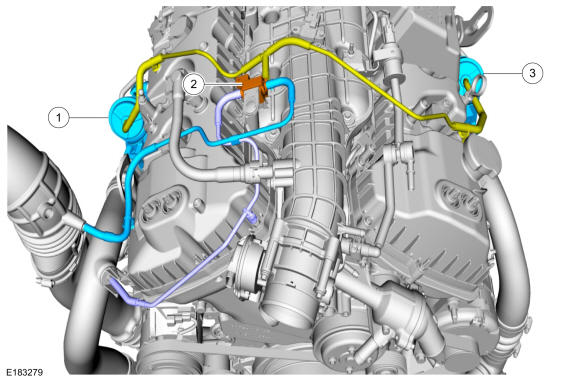

Turbocharger - Component Location
>>
3.5L EcoBoost
3.5L EcoBoost
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Right turbocharger
2
Wastegate control valve solenoid
3
Left turbocharger
Courtesy of FORD MOTOR COMPANY
