Section 3 (Engine - 3.5L ECOBOOST (235KW/320PS)): Removal: Engine
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Special Tool(s) / General Equipment
| Floor Crane |
|---|
| Adjustable Mounting Arm |
| Oil Drain Equipment |
| Vehicle/Axle Stands |
| Hose Clamp Remover/Installer |
| Wooden Block |
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground cable.
- Remove the following items:
- Refer to: Wheel and Tire .
- Refer to: COOLING MODULE .
-

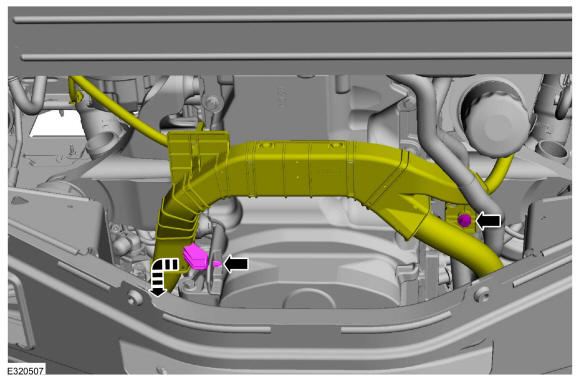

- Disconnect the wiring harness electrical connector and detach the retainer.
- Disconnect the fuel vapor tube quick release coupling.

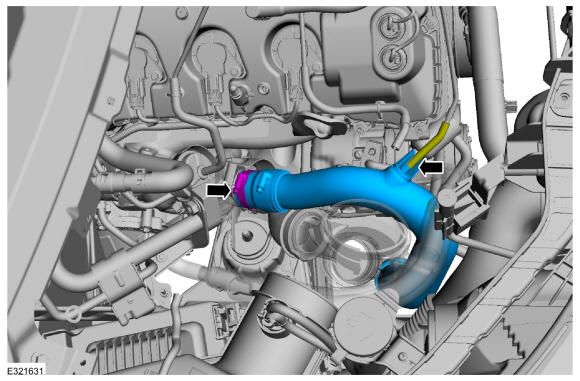

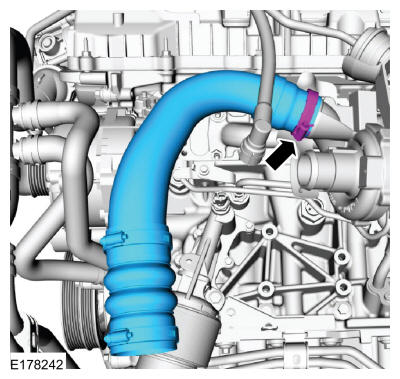

- Loosen the clamp and remove the CAC outlet pipe.

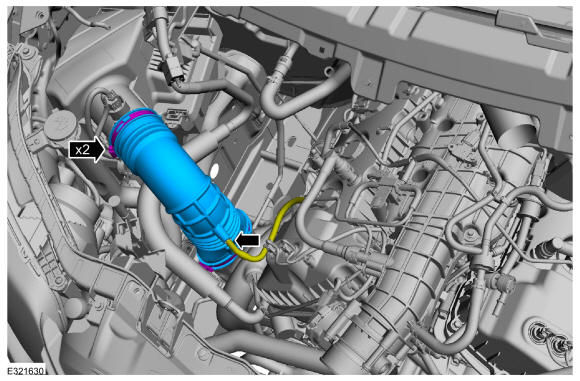

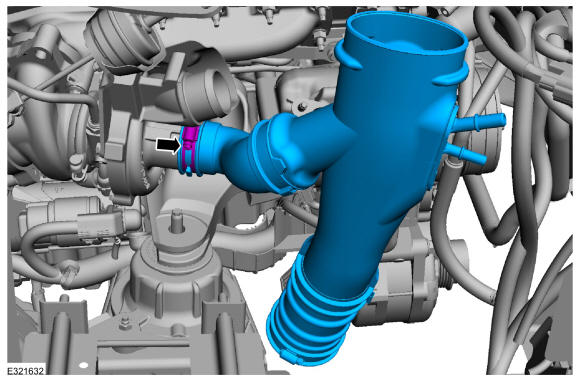

- Disconnect the vacuum hose, loosen the clamps and remove the air cleaner outlet pipe.

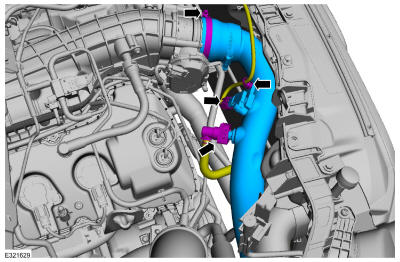

- Disconnect the vacuum hose, loosen the clamp and remove the RH TC inlet pipe.
- Disconnect the vacuum hose, loosen the clamp and remove the RH TC outlet pipe.
-
- Disconnect the PCV tube quick release coupling.

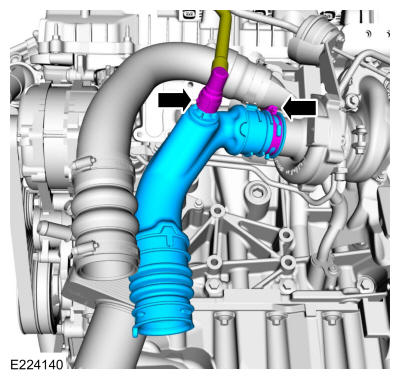

- Loosen the clamp and remove the LH TC inlet pipe.
- Loosen the clamp and remove the LH TC outlet pipe.

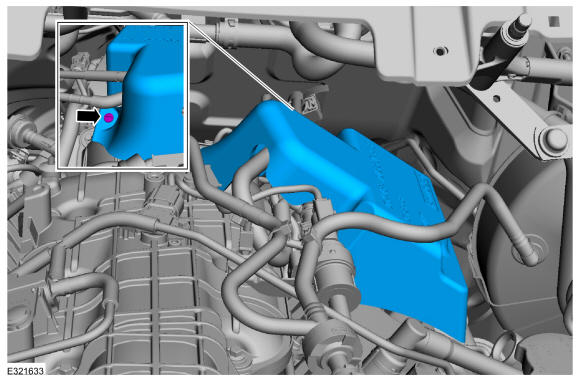

- Remove the screw and noise insulator.

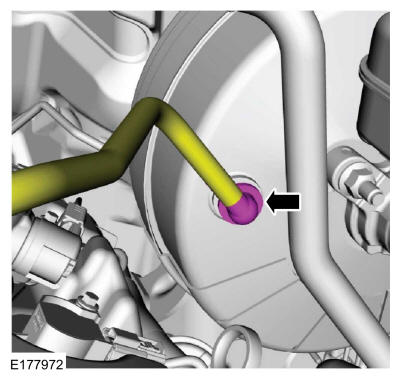

- Disconnect the brake vacuum tube.

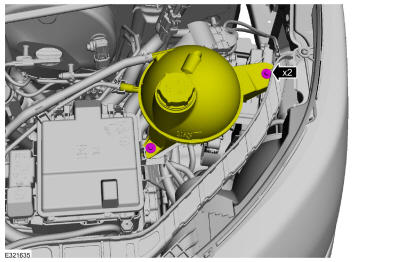

- Remove the bolts and position the degas bottle.

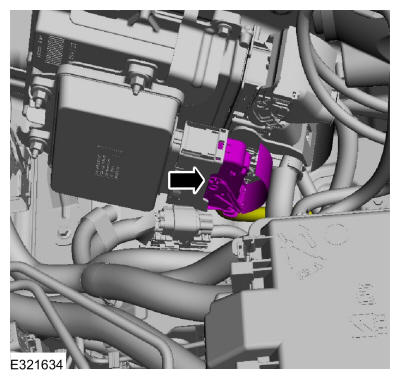

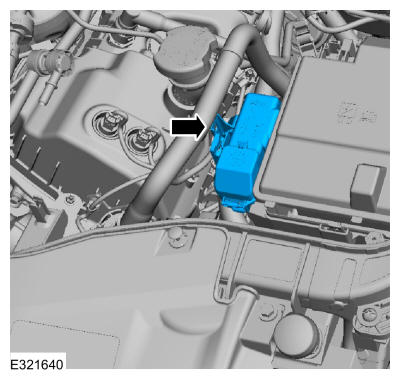

- Disconnect the PCM.
-

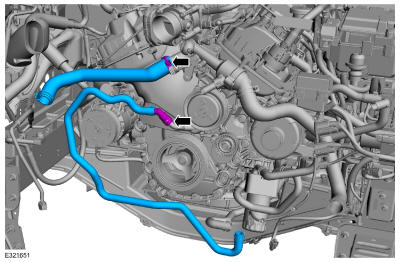

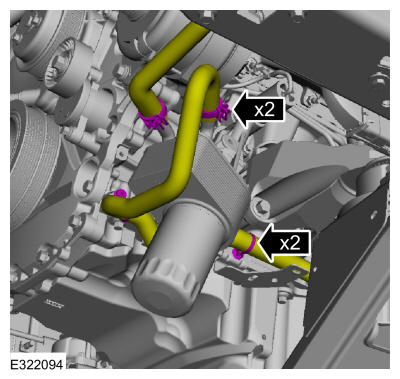

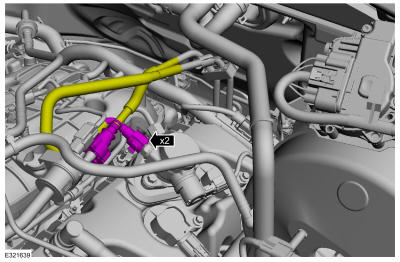

- Disconnect the heater and degas bottle hoses.
Use the General Equipment: Hose Clamp Remover/Installer
- If equipped. Disconnect the block heater electrical connector and detach the wiring harness retainers.

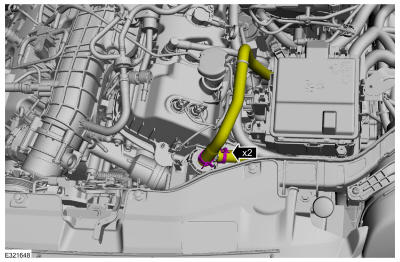

- Disconnect the heater and degas bottle hoses.
- Follow directions to release the quick release coupling type 2. Disconnect the heater hose. Refer to: Quick Release Coupling
.

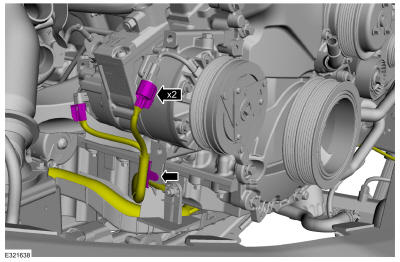

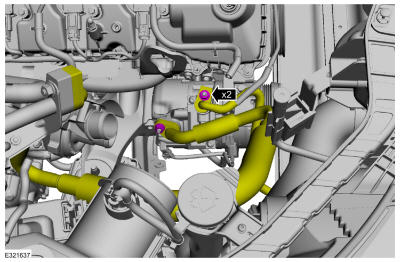

- Remove the nuts and disconnect the A/C tubes.
- Disconnect the A/C compressor electrical connector and detach the wiring harness retainers.
- Follow directions to release the quick release coupling type 10. Disconnect the fuel line. Refer to: Quick Release Coupling
.
- Remove the following items:
- Refer to: Starter Motor .
-
NOTE: RH and LH.
Refer to: Heated Oxygen Sensor (HO2S) .
-
NOTE: RH and LH.
Refer to: Catalyst Monitor Sensor .
-
- Position the protective cover aside.
- Remove the generator B+ terminal nut.

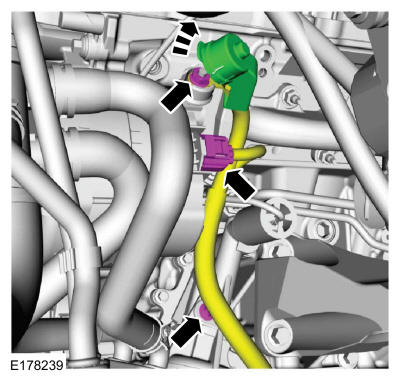

- Disconnect the generator electrical connector and detach the wiring harness retainer.
- Remove the ground wire cover.
- Remove the nut and position the ground wire and remove the pin-type retainer.
- Disconnect the heater hose and position aside.
-

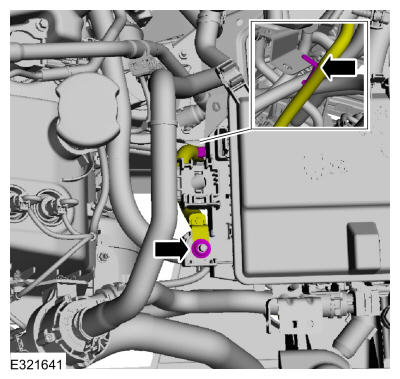

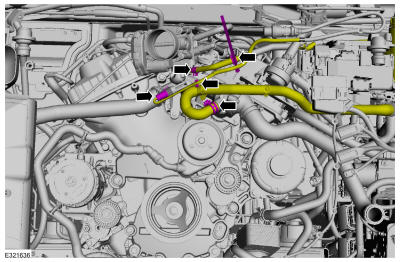

- Remove the bolts and position the ground wires.
- Remove the pin-type retainers.

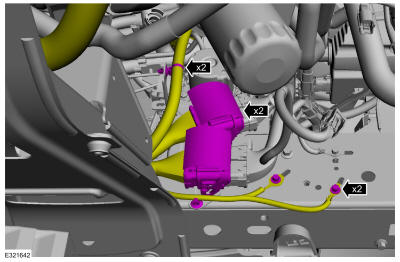

- Disconnect the electrical connectors.
- Remove the bolt and detach the wiring harness retainer.

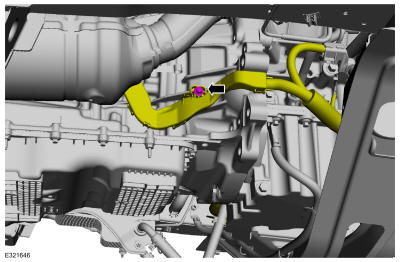

- Remove the wiring harness conduit bolt and the heater hose pin-type retainer.
Vehicles equipped with dual generators
- Remove the A/C compressor.
- Remove the accessory drive bracket stud and bolt.

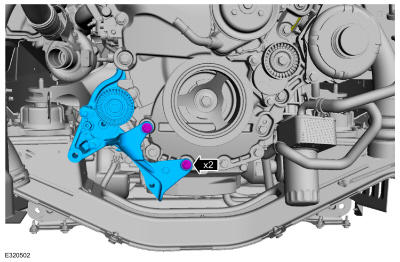

- Remove the bolts and the accessory drive bracket.
- Remove the bolt, detach the wire harness and position aside.
Vehicles equipped with single generator

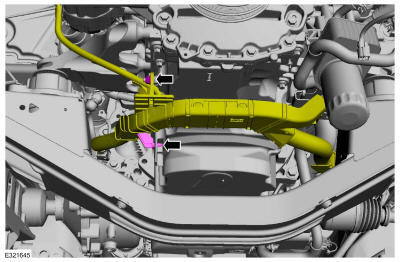

- Remove the nut, detach wiring harness conduit and position the harness aside.
Vehicles with front axle
- Remove the axle assembly. Refer to: Axle Assembly .

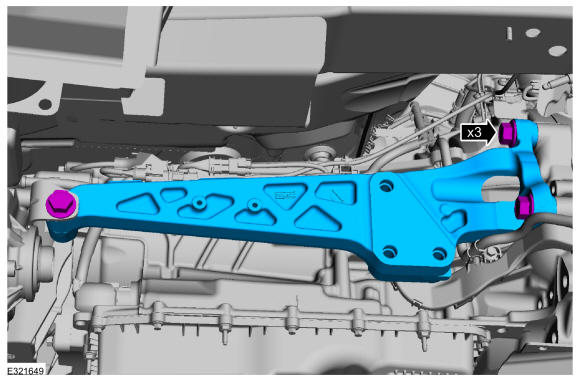

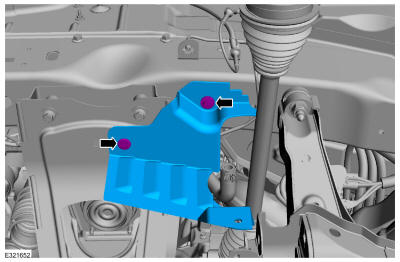

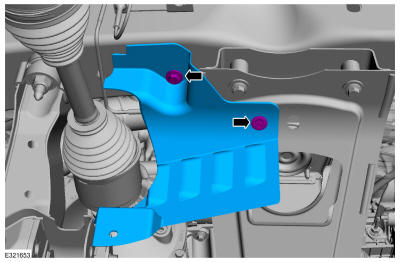

- Remove the bolts and the support bracket.

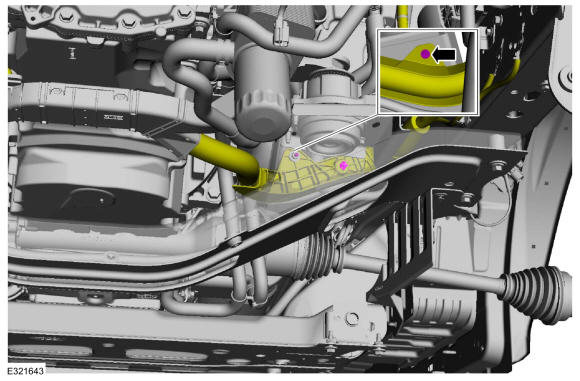

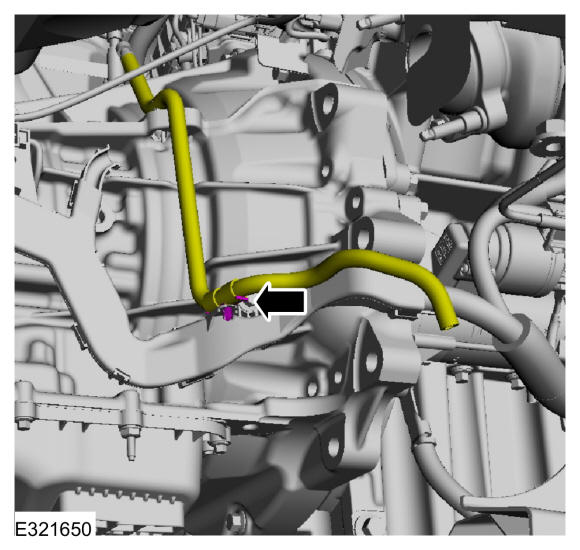

- Remove the pin-type retainer and position the vent tube.
All vehicles
- Remove the nut and position the harness aside.
-
- Remove the upper coolant hose.

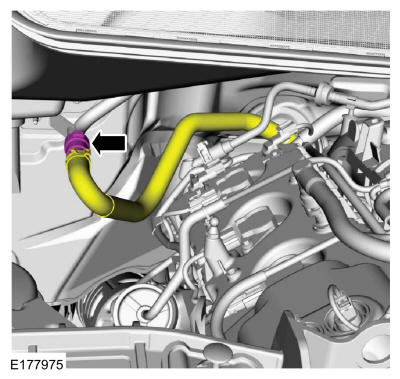

- Follow directions to release the quick release coupling type 2. Disconnect the coolant hose. Refer to: Quick Release Coupling .

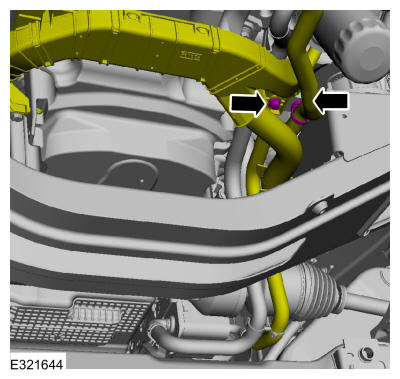

- Remove the pin-type retainers and hoses.

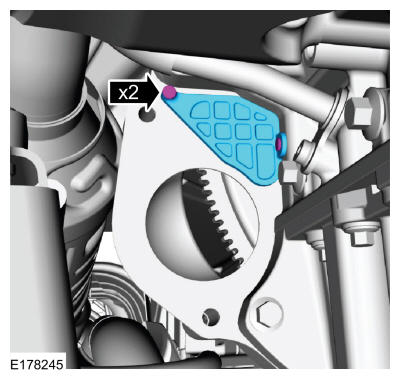

- Remove the retainers and the access cover.
-

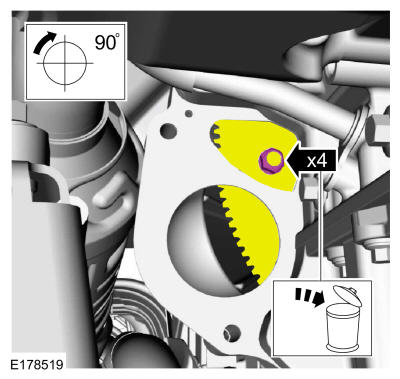

NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.
Remove and discard the torque converter nuts.

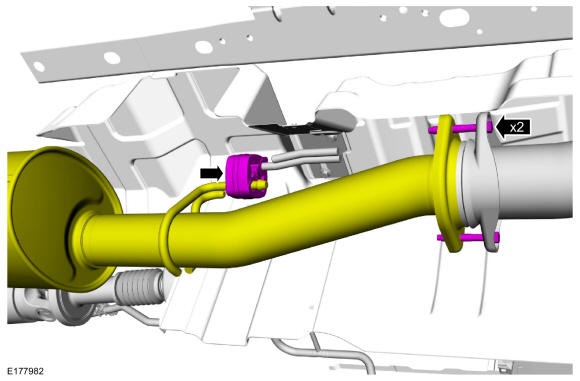

- Remove the exhaust flange bolts and detach the exhaust hanger.

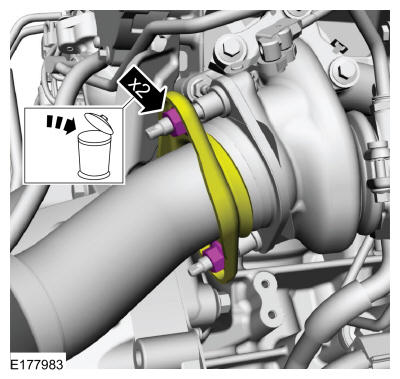

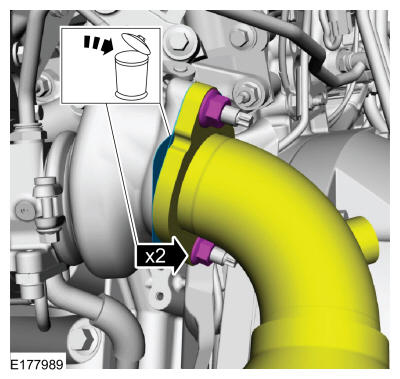

- Remove and discard the RH catalytic converter flange nuts.
-
- Remove and discard the LH catalytic converter flange nuts.
- Position the catalytic converter assembly aside and remove and discard the gasket.
-
- Remove the oil pan plug and drain the engine oil.
Use the General Equipment: Oil Drain Equipment
Torque: 20 lb.ft (27 Nm)
- Remove and discard the oil filter.
- Remove the oil pan plug and drain the engine oil.

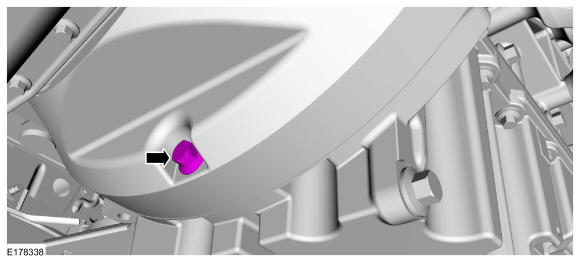

- Remove the lower bellhousing bolt.

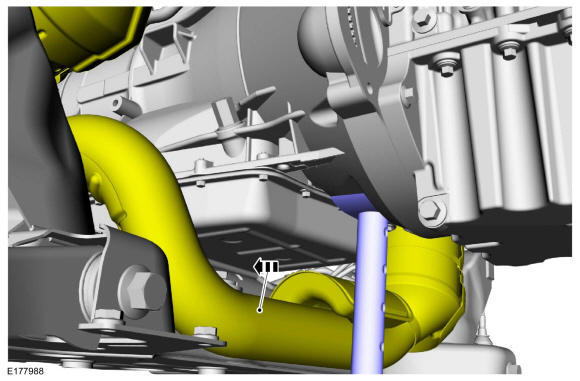

- Position the exhaust back and install the stand under the transmission bellhousing.
Use the General Equipment: Vehicle/Axle Stands

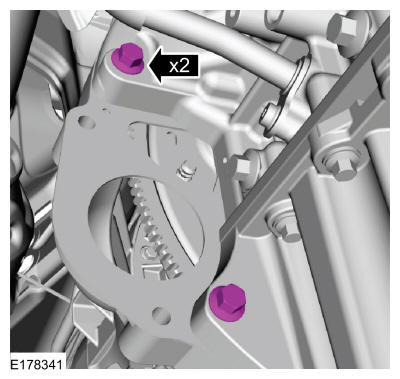

- Remove the upper bellhousing bolts.

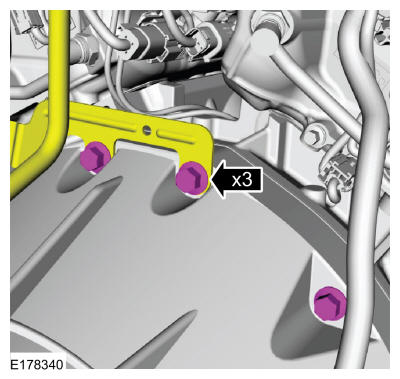

- Remove the LH side bellhousing bolts and the shift cable bracket.

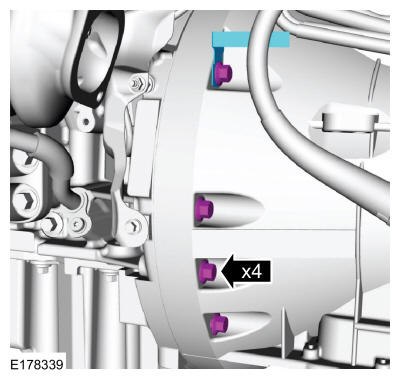

- Remove the RH side bellhousing bolts.
- Detach the ground wire retainers and position aside.

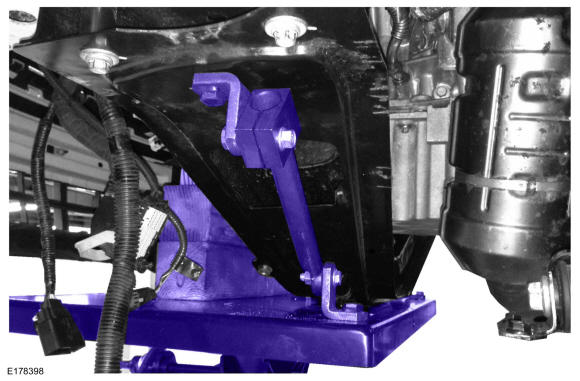

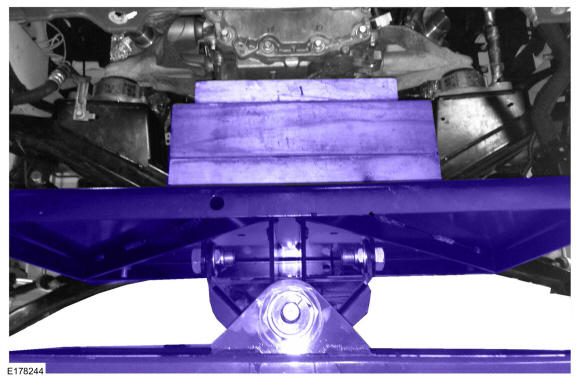

- Position the powertrain lift table under the engine crossmember and support the front of the oil pan with wood blocks.
Use the General Equipment: Wooden Block

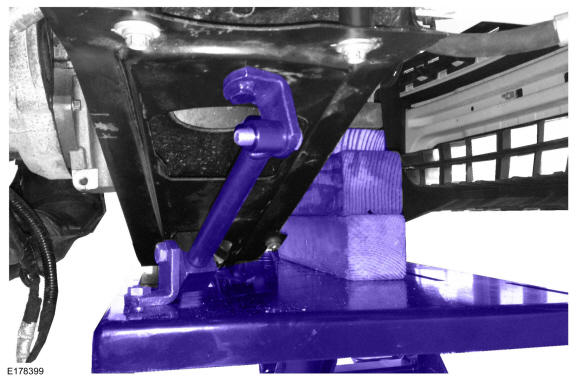

- Install the adjustable mounting arm to the LH side of the engine crossmember.
Use the General Equipment: Adjustable Mounting Arm
- Install the adjustable mounting arm to the RH side of the engine crossmember.
Use the General Equipment: Adjustable Mounting Arm
- Remove the pin-type retainer the bolt and the LH wheel liner.

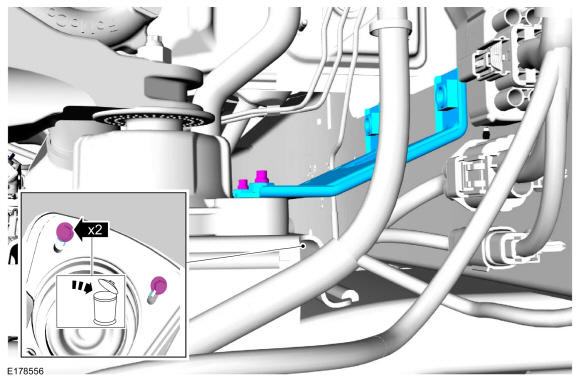

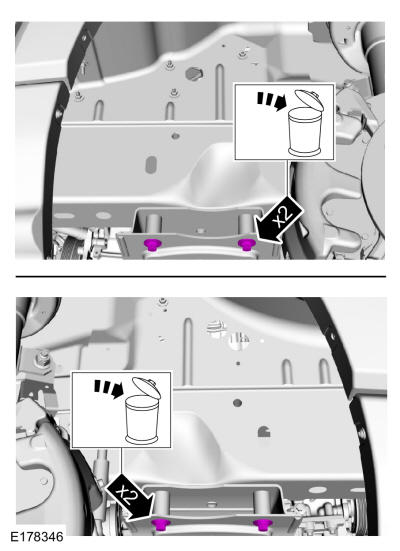

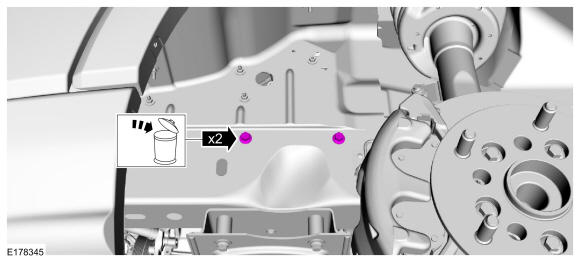

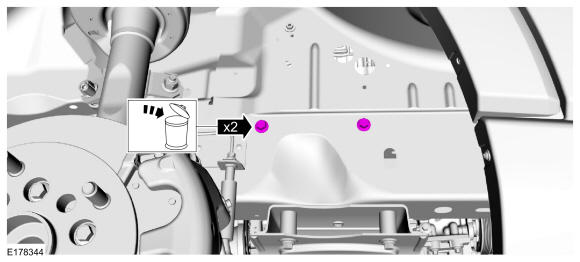

- Remove and discard the LH engine crossmember bracket bolts.

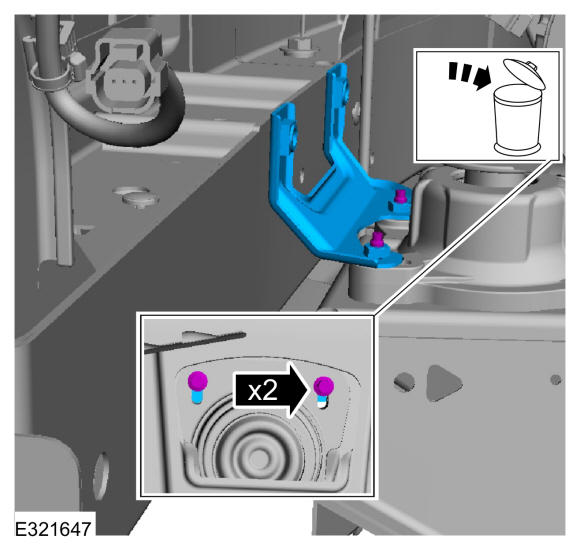

- Remove and discard the bolts and remove the LH engine crossmember bracket.
- Remove the pin-type retainer the bolt and the RH wheel liner.
- Remove and discard the RH engine crossmember bracket bolts.
- Remove and discard the bolts and remove the RH engine crossmember bracket.
- Remove and discard the engine crossmember bolts.

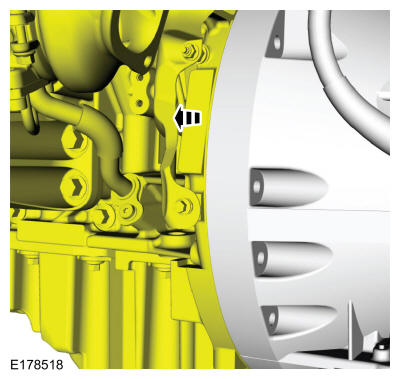

- Separate the engine from the transmission.

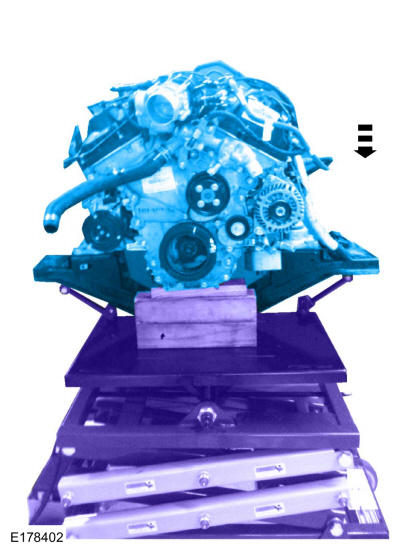

- Using the powertrain lift table lower the engine from the vehicle.

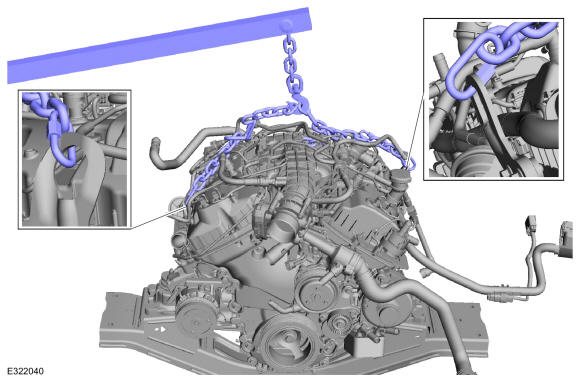

- Install a commercially available quick links and a floor crane.
Use the General Equipment: Floor Crane
-

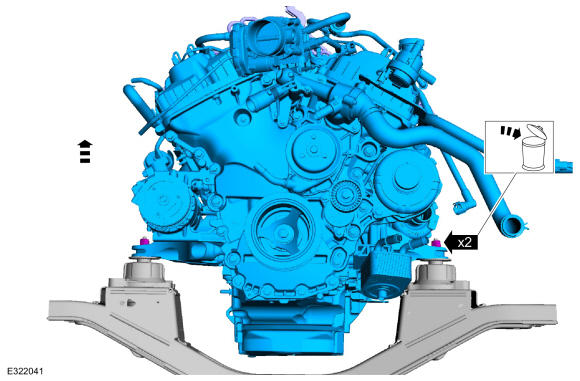

- Remove and discard the engine mount nuts.
- Using the floor crane, lift the engine from the engine crossmember.
Use the General Equipment: Floor Crane
