Timing Chain Tensioner: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.
  1. Remove the engine front cover. Refer to: Engine Front Cover .
  2. NOTE: Rotate the crankshaft in a clockwise direction only.

    Rotate the crankshaft clockwise and align the timing marks on the intake VCT units as shown in illustration.

    GFD564770Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the LH oil tube.
    GFD564771Courtesy of FORD MOTOR COMPANY
  4. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    GFD564772Courtesy of FORD MOTOR COMPANY
  5. Remove the bolts and the RH oil tube.
    GFD564773Courtesy of FORD MOTOR COMPANY
  6. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    GFD564774Courtesy of FORD MOTOR COMPANY

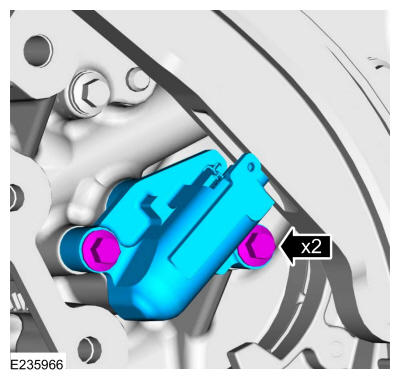

  7. Remove the bolts and the timing chain tensioner.
GFD564814Courtesy of FORD MOTOR COMPANY
