Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

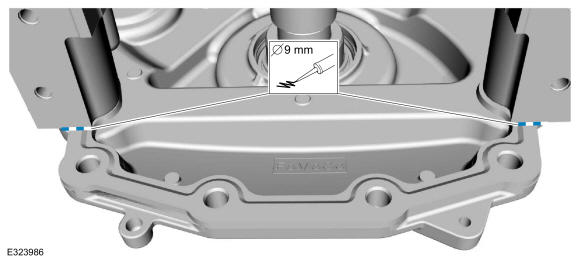

  1. Apply a 9 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft engine front cover-to-cylinder block joint areas.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD564742Courtesy of FORD MOTOR COMPANY
  2. NOTE: The oil pan and the specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

    Apply a 5 mm (0.20 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD564743Courtesy of FORD MOTOR COMPANY
  3. Apply a 9 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD564744Courtesy of FORD MOTOR COMPANY

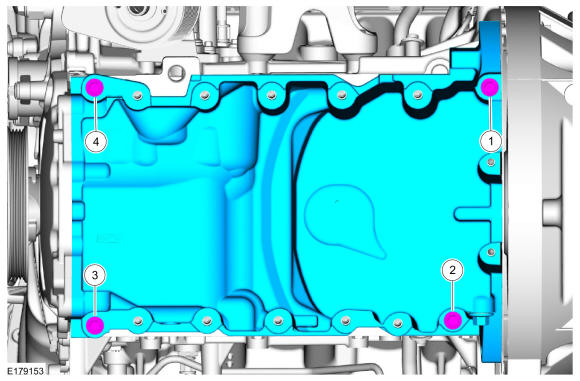

  4. NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.
    NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

    Install the oil pan and the bolts finger tight.

    GFD564745Courtesy of FORD MOTOR COMPANY

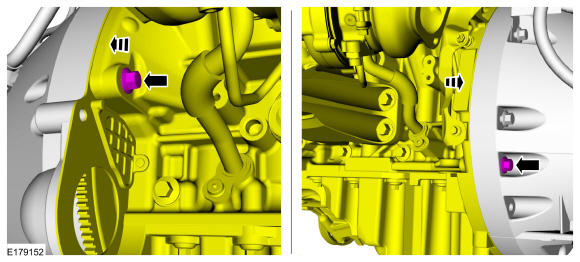

  5. NOTE: Do not torque at this time.

    Draw the transmission and engine together using the bolts.

    GFD564746Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with front axle assembly

  6. NOTE: Do not torque at this time.

    Install the oil pan stud.

    GFD564719Courtesy of FORD MOTOR COMPANY
  7. NOTE: Do not torque at this time.
    NOTE: Access to the bolt is limited.

    Install the oil pan bolt.

    GFD564720Courtesy of FORD MOTOR COMPANY

    Vehicles equipped without a front axle assembly

  8. NOTE: Do not torque at this time.

    Install the oil pan bolts.

    GFD564721Courtesy of FORD MOTOR COMPANY

    All vehicles

  9. NOTE: Do not torque at this time.

    Install the oil pan bolt.

    GFD564724Courtesy of FORD MOTOR COMPANY

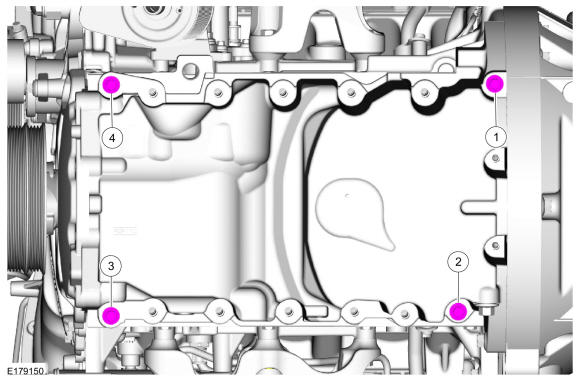

  10. Tighten the oil pan bolts.

    Torque: 27 lb.in (3 Nm)

    GFD564747Courtesy of FORD MOTOR COMPANY

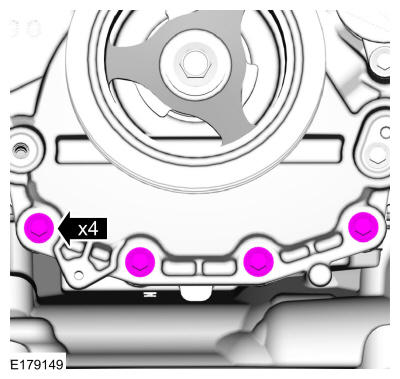

  11. NOTE: If equipped with dual generators it will be necessary to obtain a W503297 (10mm HEX) M8 X 1.25 X 35 bolt and washer to replace the accessory bracket bolt during the oil pan tightening process.

    Install the engine front cover bolts finger tight.

    GFD564748Courtesy of FORD MOTOR COMPANY

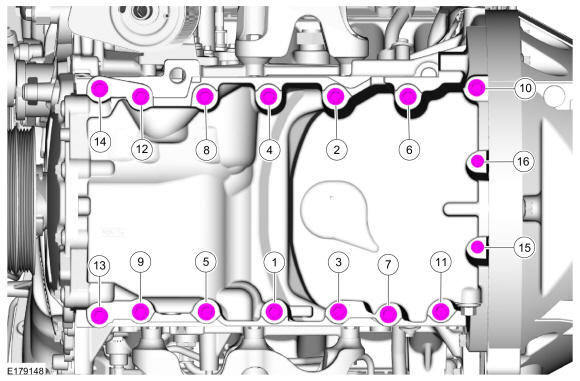

  12. Install the remaining oil pan bolts and tighten in sequence.

    Torque:

    Stage 1: Tighten bolts 1 through 14 to: 18 lb.ft (24 Nm)

    Stage 2: Tighten bolt 10 an additional: 90°

    Stage 3: Tighten bolts 15 and 16 to: 89 lb.in (10 Nm)

    Fig 1: Oil Pan Tightening Sequence
    GFD564749Courtesy of FORD MOTOR COMPANY
  13. NOTE: If equipped with dual generators, after the tightening sequence is completed, the W503297 (10 mm HEX) M8 X 1.25 X 35 bolt and washer will be removed to accommodate installation of the accessory bracket.

    Tighten the engine front cover bolts.

    Torque: 18 lb.ft (24 Nm)

    GFD564748Courtesy of FORD MOTOR COMPANY

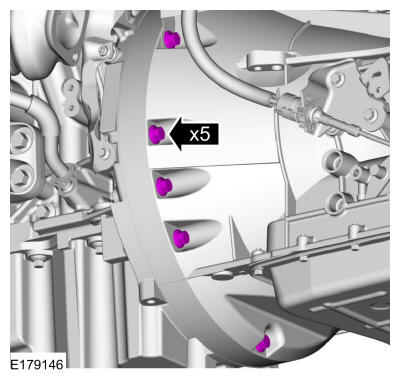

  14. NOTE: Vehicle without a front axle assembly shown in illustration, with a front axle assembly similar.

    Tighten the oil pan and bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD564750Courtesy of FORD MOTOR COMPANY
  15. Tighten the oil pan and bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD564751Courtesy of FORD MOTOR COMPANY

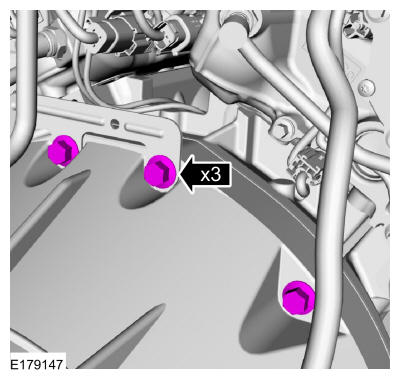

  16. Tighten the bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD564752Courtesy of FORD MOTOR COMPANY
  17. With the aid of an assistant, install the engine crossmember and the bolts.

    Torque: 46 lb.ft (63 Nm)

    GFD564753Courtesy of FORD MOTOR COMPANY
  18. Position back the ground wire and install the retainers.
    GFD564734Courtesy of FORD MOTOR COMPANY
  19. NOTE: RH shown in illustration, LH similar.

    Install the RH and LH engine mount bolts from the bottom of the engine crossmember.

    Torque: 22 lb.ft (30 Nm)

    GFD564754Courtesy of FORD MOTOR COMPANY

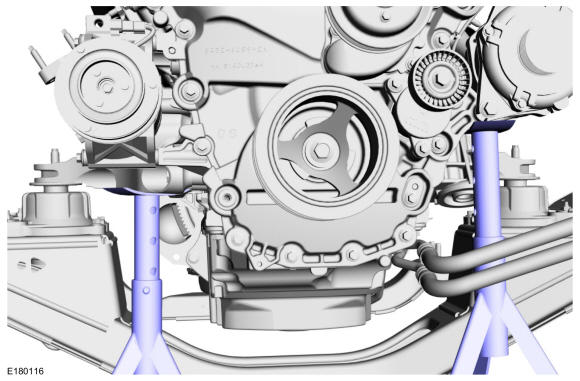

  20. Remove the stands.

    Use the General Equipment: Vehicle/Axle Stands

    GFD564755Courtesy of FORD MOTOR COMPANY
  21. NOTE: RH shown in illustration, LH similar.

    Install the RH and LH engine mount nuts.

    Torque: 85 lb.ft (115 Nm)

    GFD564756Courtesy of FORD MOTOR COMPANY
  22. Install the oil cooler and the retainer.

    Torque: 43 lb.ft (58 Nm)

    GFD564731Courtesy of FORD MOTOR COMPANY

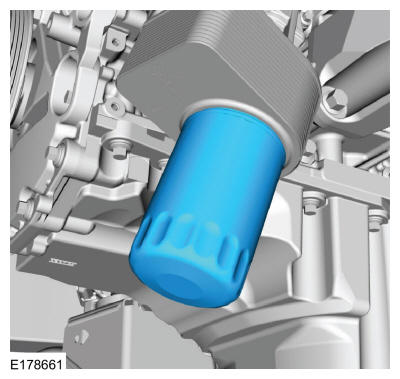

  23. NOTE: Do not lubricate the engine oil filter gasket.

    Install a new oil filter.

    Torque:

    Stage 1: 44 lb.in (5 Nm)

    Stage 2: 180°

    GFD564757Courtesy of FORD MOTOR COMPANY
  24. Install the coolant lines pin-type retainers.
    GFD564723Courtesy of FORD MOTOR COMPANY
  25. Install the coolant line pin-type retainer.
    GFD564722Courtesy of FORD MOTOR COMPANY

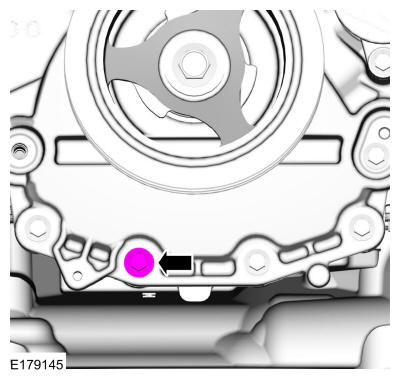

  26. NOTE: If equipped with dual generators.

    Remove the engine front cover bolt.

    GFD564758Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with dual generators

  27. Position back and attach the wire harness, install the bolt.

    Torque: 71 lb.in (8 Nm)

    GFD564759Courtesy of FORD MOTOR COMPANY
  28. Install the accessory drive bracket, stud and bolts hand tight then tighten in the sequence shown in illustration.

    Torque: Bolt 1: 28 lb.in (3.2 Nm)

    Stud 2: 28 lb.in (3.2 Nm)

    Bolt 3: 26 lb.ft (35 Nm)

    Bolt 4: 26 lb.ft (35 Nm)

    GFD564760Courtesy of FORD MOTOR COMPANY
  29. Tighten the accessory drive bracket fasteners.

    Torque: Bolt 1: 35 lb.ft (47.5 Nm)

    Stud 2: 26 lb.ft (35 Nm)

    GFD564761Courtesy of FORD MOTOR COMPANY
  30. Install the A/C compressor.

    Vehicles equipped with single generator

  31. Install the stud bolt.

    Torque: 27 lb.in (3 Nm)

    GFD564718Courtesy of FORD MOTOR COMPANY
  32. Position back and attach the wire harness, install the bolt.

    Torque: 71 lb.in (8 Nm)

    GFD564759Courtesy of FORD MOTOR COMPANY
  33. Attach the retainer and connect A/C compressor electrical connectors.
    GFD564717Courtesy of FORD MOTOR COMPANY
  34. Remove the wiring harness nut.

    Torque: 71 lb.in (8 Nm)

    GFD564716Courtesy of FORD MOTOR COMPANY

    All vehicles

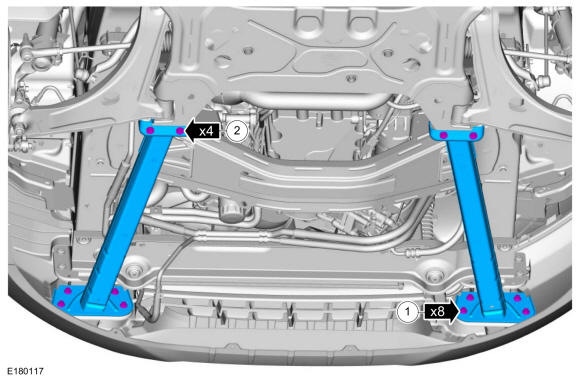

  35. Install the lower load path bars and retainers.

    Torque: 1: 41 lb.ft (55 Nm)

    2: 18 lb.ft (25 Nm)

    GFD564762Courtesy of FORD MOTOR COMPANY

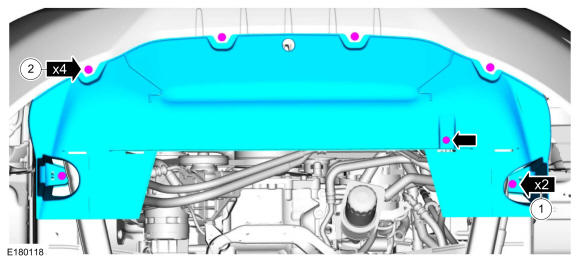

  36. Install the shield and retainers.

    Torque: 1: 97 lb.in (11 Nm)

    2: 44 lb.in (5 Nm)

    GFD564763Courtesy of FORD MOTOR COMPANY
  37. Install the following items:

    1. Refer to: Starter Motor .
    2. Refer to: Air Cleaner Outlet Pipe .

  38. Install the oil level indicator.
    GFD564711Courtesy of FORD MOTOR COMPANY
  39. Fill the engine with clean engine oil. Refer to: Specifications .
    GFD564643Courtesy of FORD MOTOR COMPANY
  40. Connect the battery ground cable. Refer to: Battery - Vehicles With: Single Battery . Refer to: Battery - Vehicles With: Dual Batteries .
