Front Cover to Coolant Pipe Seal: Installation
WARNING: This page is about a different variant/trim than selected.
-

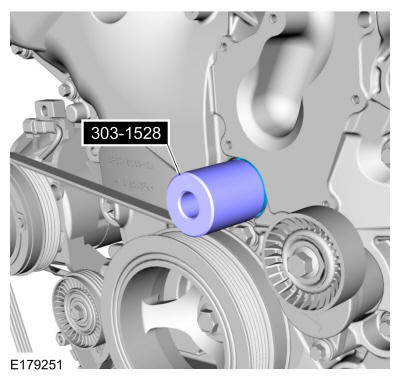

- Using the special tool, install the front cover to coolant pipe seal.
Use Special Service Tool: 303-1528 Remover/Installer, Water Tube Seal.
- Position the front cover to coolant pipe seal on the special tool.
- Position the special tool into the engine front cover.
- Using a brass hammer, tap the special tool until the front cover to coolant pipe seal bottoms out.
- Using the special tool, install the front cover to coolant pipe seal.

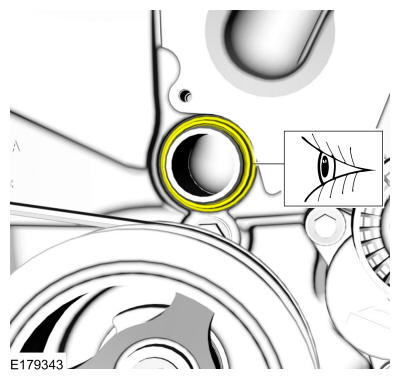

- Inspect the front cover to coolant pipe seal for proper installation or damage.
- Install the following items:
- Refer to: COOLANT PUMP .
- Refer to: COOLING FAN MOTOR AND SHROUD .
