Engine Mount RH: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the engine crossmember. Refer to: Engine Crossmember .

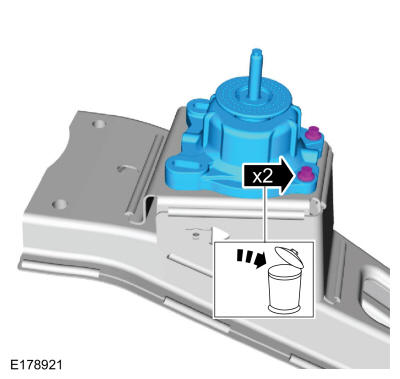

- Remove and discard the bolts.
  Torque: 22 lb.ft (30 Nm)
- Remove the engine mount.

Courtesy of FORD MOTOR COMPANY
