Crankshaft Front Seal: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

Remove the A/C compressor belt.
Remove the cooling module. Refer to: Cooling Module .

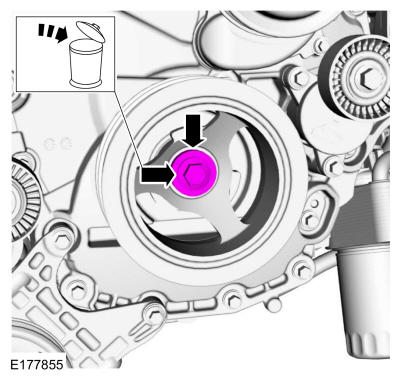

- Remove the crankshaft bolt and washer.
- Discard the bolt.
Courtesy of FORD MOTOR COMPANY

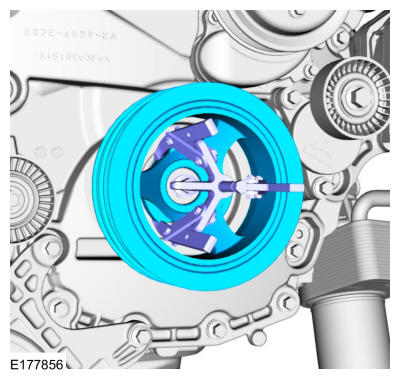

Using a three leg puller, remove the crankshaft pulley.
Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY

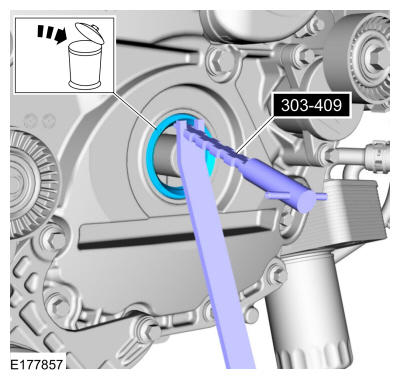

Using the special tool, remove and discard the crankshaft front seal.
Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

Courtesy of FORD MOTOR COMPANY
