Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.

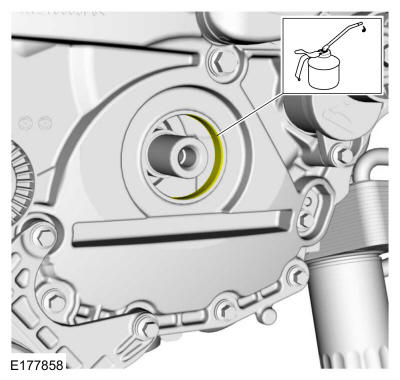

Lubricate the crankshaft front seal bore with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

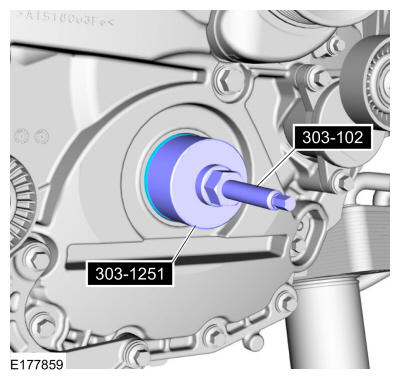

Using the special tools, install the crankshaft front seal.
Use Special Service Tool: 303-102 Installer, Crankshaft Pulley, 303-1251 Installer, Front Seal.

Courtesy of FORD MOTOR COMPANY

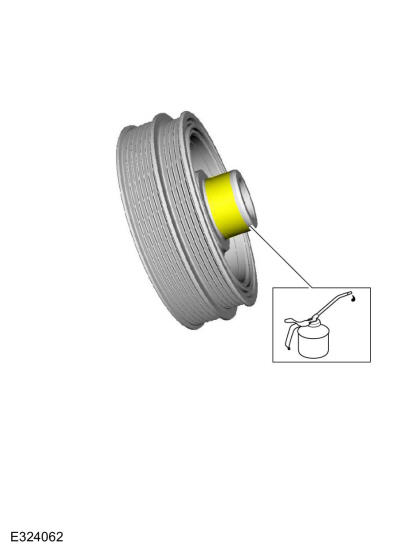

Lubricate the crankshaft pulley with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

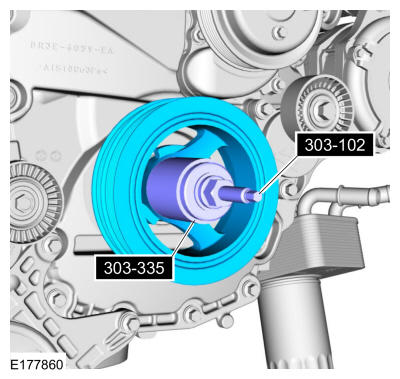

Using the special tools, install the crankshaft pulley.
Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal, 303-102 Installer, Crankshaft Pulley.

Courtesy of FORD MOTOR COMPANY

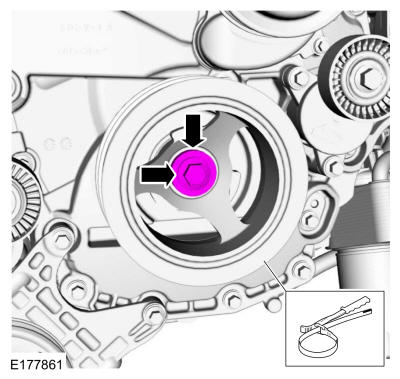

Using the strap wrench, install the new crankshaft bolt and the washer and tighten in 4 stages.
Use the General Equipment: Strap Wrench

Torque:

Stage 1: 89 lb.ft (120 Nm)

Stage 2: Loosen: 1 turn(s)

Stage 3: 37 lb.ft (50 Nm)

Stage 4: 90°

Courtesy of FORD MOTOR COMPANY
Install the cooling module. Refer to: Cooling Module .
Install the A/C compressor belt.
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
