Section 3 (Engine - 3.5L ECOBOOST (235KW/320PS)): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Materials

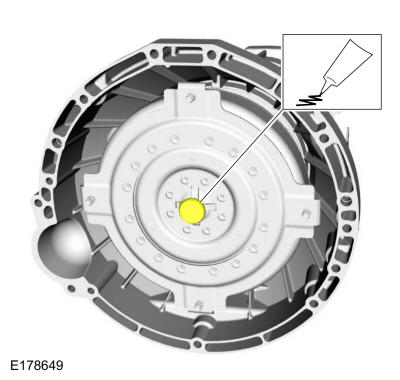

1. Lubricate the torque converter pilot hub with multi-purpose grease.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

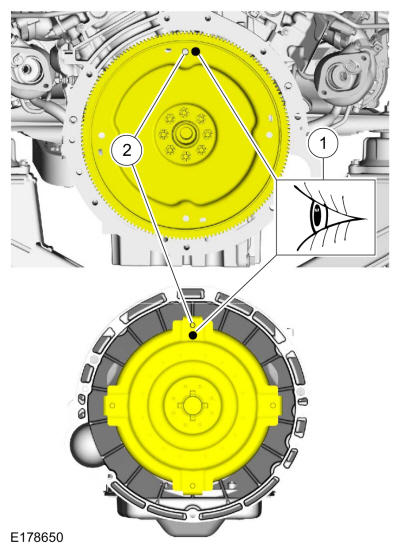

2. • Inspect the torque converter stud and flexplate for paint marks.
   • Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

   Courtesy of FORD MOTOR COMPANY

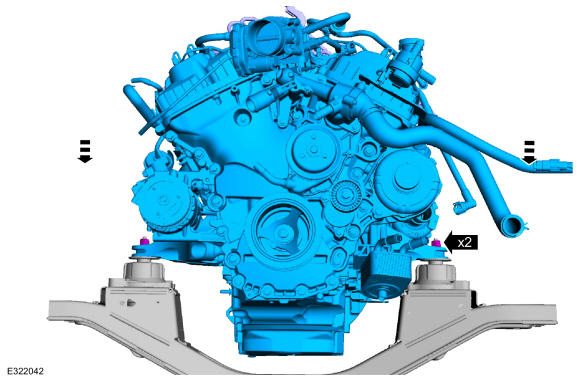

3. • Using the floor crane, lower the engine onto the engine crossmember. Use the General Equipment: Floor Crane
   • Install new engine mount nuts.

     Torque: 85 lb.ft (115 Nm)

   Courtesy of FORD MOTOR COMPANY

4. Remove the commercially available quick links and floor crane. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

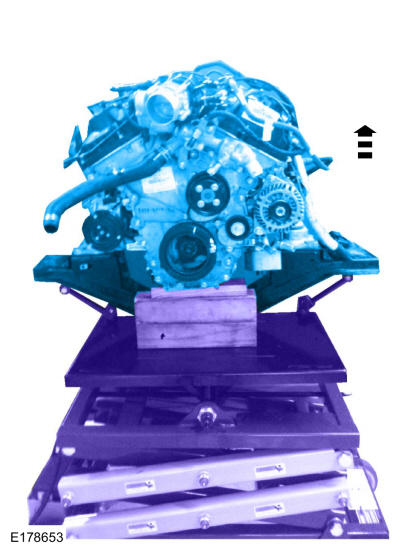

5. Using the powertrain lift table raise the engine into the vehicle.

   Courtesy of FORD MOTOR COMPANY

6. Align the engine to the transmission and draw together using the bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

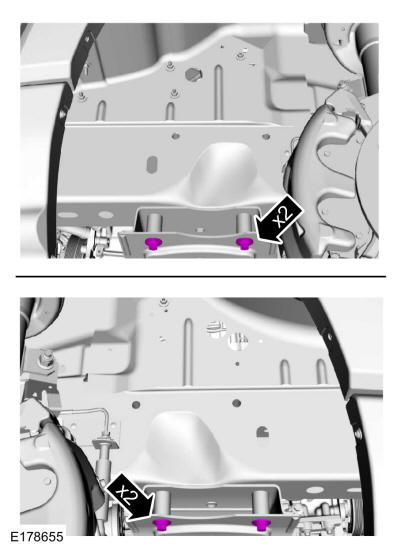

7. Install new engine crossmember bolts.

   Torque: 46 lb.ft (63 Nm)

   Courtesy of FORD MOTOR COMPANY

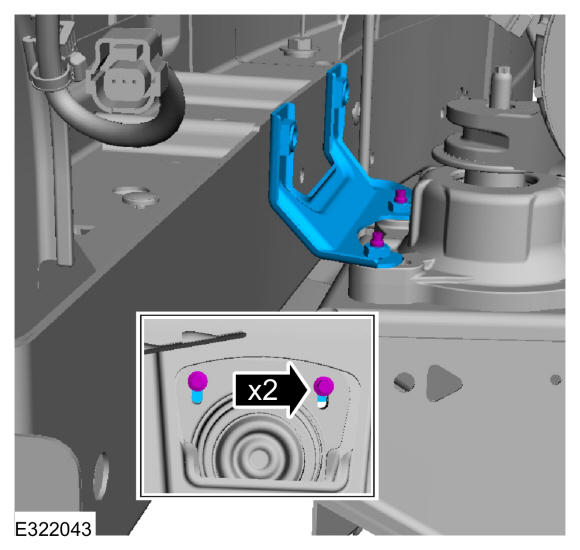

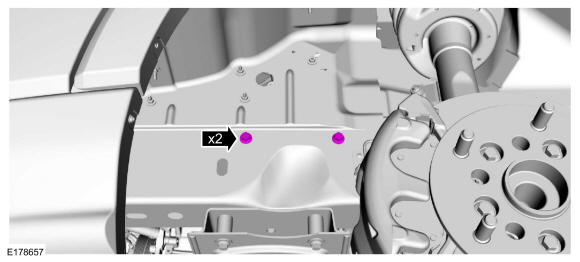

8. Install the RH engine crossmember bracket and new bolts.

   Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

9. Install new RH engine crossmember bracket bolts.

   Torque: 46 lb.ft (63 Nm)

   Courtesy of FORD MOTOR COMPANY

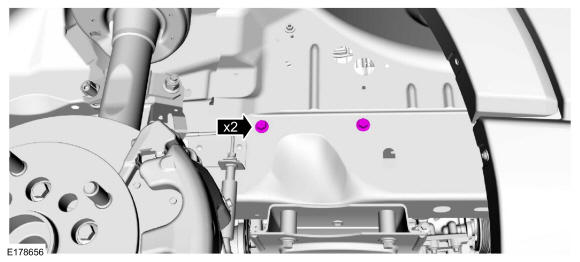

10. Install the RH wheel liner and fasteners.

    Courtesy of FORD MOTOR COMPANY

11. Install the LH engine crossmember bracket and new bolts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Install new LH engine crossmember bracket bolts.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Install the LH wheel liner and fasteners.

    Courtesy of FORD MOTOR COMPANY

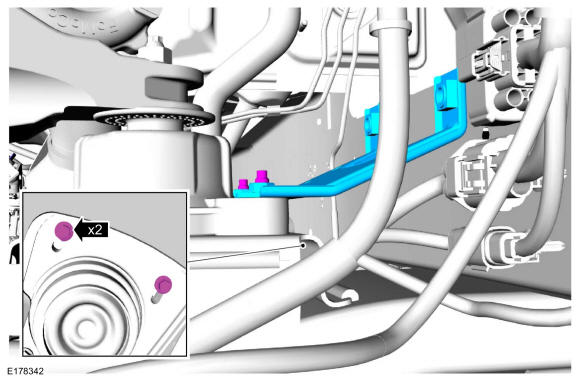

14. Remove the adjustable mounting arm from the RH side of the engine crossmember. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

15. Remove the adjustable mounting arm from the LH side of the engine crossmember. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

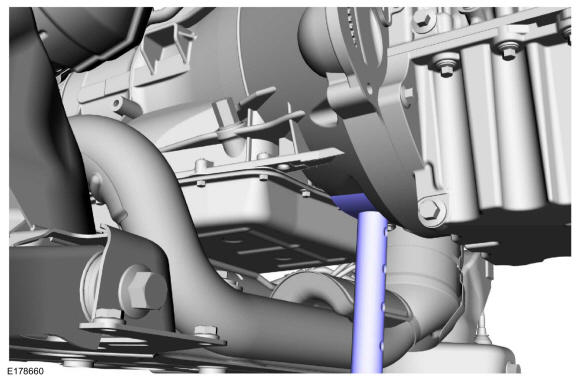

16. Remove the powertrain lift table and wood blocks. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

17. Position back the ground wire and install the retainers.

    Courtesy of FORD MOTOR COMPANY

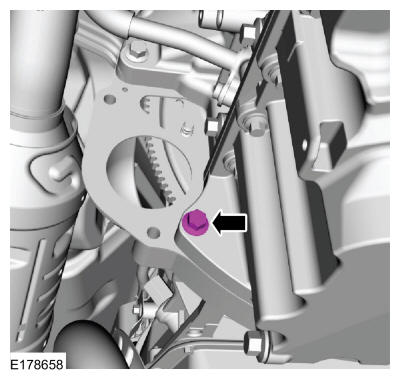

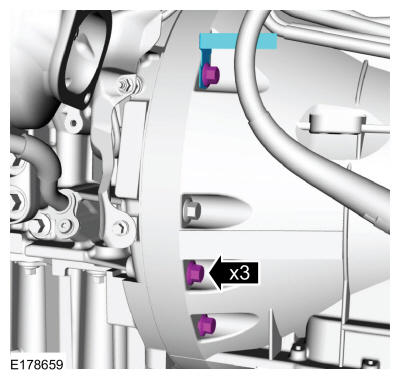

18. Install the RH side bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

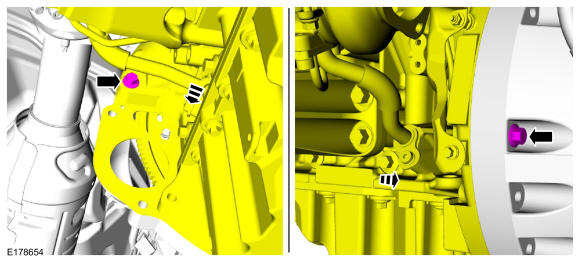

19. Install the shift cable bracket and the LH side bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

20. Install the upper bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Remove the stand. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

22. Install the lower bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

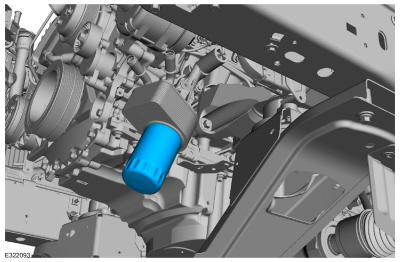

23. NOTE: Do not lubricate the engine oil filter gasket.

    Install a new oil filter.

    Torque:

    Stage 1: 44 lb.in (5 Nm)

    Stage 2: 180°

    Courtesy of FORD MOTOR COMPANY

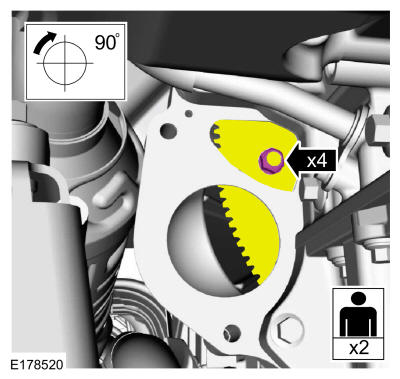

24. • Using a new gasket, position the LH catalytic converter flange onto the TC.
    • Install new nuts.

      Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

25. Install the RH catalytic converter flange and new nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

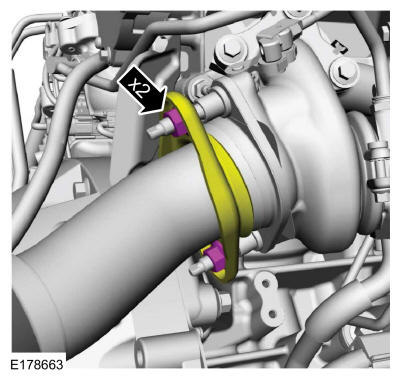

26. Attach the exhaust hanger and install the exhaust flange bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

27. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install new torque converter nuts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

28. Install the access cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

29. Install the hoses and the pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

30. • Install the upper coolant hose.
    • Follow directions to connect the quick release coupling type 2. Connect the coolant hose. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

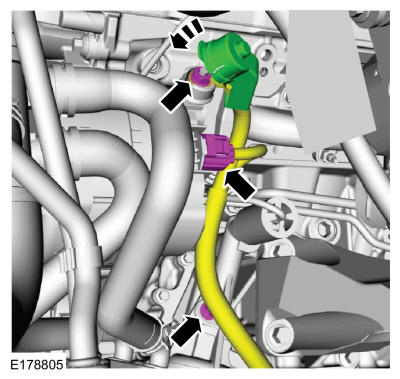

31. Position the harness and install the bolt.

    Torque: 53 lb.in (6 Nm)

    Courtesy of FORD MOTOR COMPANY

    Vehicles with front axle

32. Remove the pin-type retainer and position the vent tube.

    Courtesy of FORD MOTOR COMPANY

33. Install the support bracket and bolts.

    Torque: 295 lb.ft (400 Nm)

    Courtesy of FORD MOTOR COMPANY

34. Install the axle assembly. Refer to: Axle Assembly .

    Vehicles equipped with dual generators

35. Position back and attach the wire harness, install the bolt.

    Torque: 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

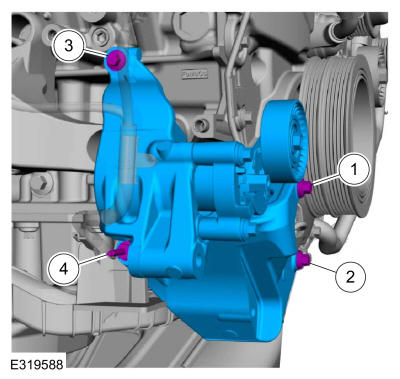

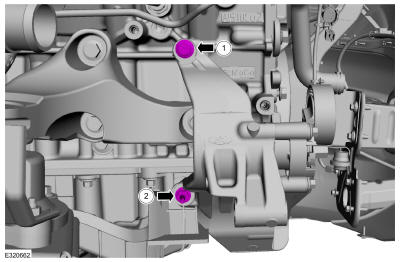

36. Install the accessory drive bracket, stud and bolts hand tight then tighten in the sequence shown in illustration.

    Torque: Bolt 1: 28 lb.in (3.2 Nm)

    Stud 2: 28 lb.in (3.2 Nm)

    Bolt 3: 26 lb.ft (35 Nm)

    Bolt 4: 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

37. Tighten the accessory drive bracket fasteners.

    Torque: Bolt 1: 35 lb.ft (47.5 Nm)

    Stud 2: 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

38. Install the A/C compressor.

    Vehicles equipped with single generator

39. Remove the nut, detach wiring harness conduit and position the harness aside.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

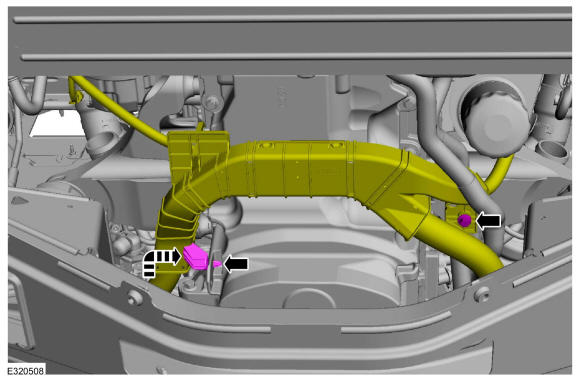

40. Install the wiring harness conduit bolt and the heater hose pin-type retainer.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

41. Remove the bolt and detach the wiring harness retainer.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

42. • Connect the electrical connectors.
    • Install the ground wires and bolts.

      Torque: 106 lb.in (12 Nm)

    • Connect the pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

43. Install and connect the heater hoses.

    Courtesy of FORD MOTOR COMPANY

44. Install the ground wire, nut and attach the pin-type retainer.

    Courtesy of FORD MOTOR COMPANY

45. Install the ground wire cover.

    Courtesy of FORD MOTOR COMPANY

46. • Install the generator B+ terminal nut.

      Torque: 142 lb.in (16 Nm)

    • Position the protective cover.
    • Connect the generator electrical connector and attach wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

47. Install the following items:
    1. NOTE: RH and LH.

       Refer to: Catalyst Monitor Sensor .

    2. NOTE: RH and LH.

       Refer to: Heated Oxygen Sensor (HO2S) .

    3. Refer to: Starter Motor .

48. Install the front wheels and tires. Refer to: Wheel and Tire .
49. Follow directions to connect the quick release coupling type 10. Connect the fuel line. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with single generator

50. Connect the A/C compressor electrical connector and attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

51. Install the A/C tubes and nuts.

    Torque: 159 lb.in (18 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

52. Connect the heater hose quick release coupling.

    Courtesy of FORD MOTOR COMPANY

53. • Connect the heater and degas bottle hoses. Use the General Equipment: Hose Clamp Remover/Installer
    • If equipped. Connect the block heater electrical connector and attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

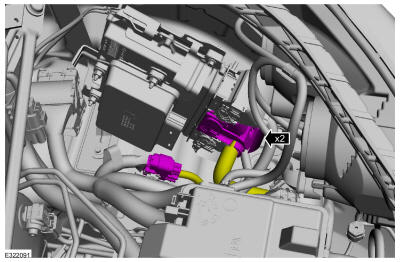

54. Connect the PCM electrical connector.

    Courtesy of FORD MOTOR COMPANY

55. Connect the drive line control module.

    Courtesy of FORD MOTOR COMPANY

56. Remove the bolts and position the degas bottle.

    Courtesy of FORD MOTOR COMPANY

57. Connect the brake vacuum tube.

    Courtesy of FORD MOTOR COMPANY

58. Install the noise insulator and screw.

    Courtesy of FORD MOTOR COMPANY

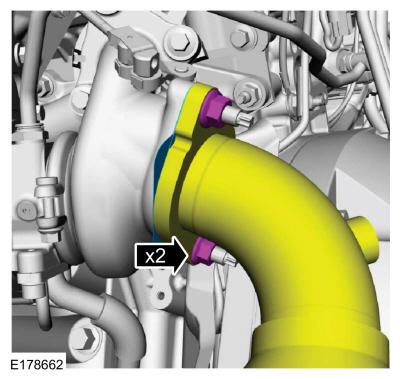

59. Install the LH TC outlet pipe and clamp.

    Torque: 53 lb.in (6 Nm)

    Courtesy of FORD MOTOR COMPANY

60. • Install the LH TC inlet pipe and clamp.

      Torque: 53 lb.in (6 Nm)

    • Connect the PCV tube quick release coupling.

    Courtesy of FORD MOTOR COMPANY

61. Install the RH TC outlet pipe, tighten the clamp and connect the vacuum hose.

    Courtesy of FORD MOTOR COMPANY

62. Install the RH TC inlet pipe, tighten the clamps and connect the vacuum hose.

    Courtesy of FORD MOTOR COMPANY

63. Install the air cleaner outlet pipe, tighten the clamps an connect the vacuum hose.

    Courtesy of FORD MOTOR COMPANY

64. • Install the CAC outlet pipe and tighten the clamp.
    • Follow directions to connect the quick release coupling type 4. Connect the fuel vapor tube quick release coupling.
    • Connect the wiring harness electrical connector and attach the retainer.

    Courtesy of FORD MOTOR COMPANY

65. Install the following items:
    1. Refer to: Cooling Module .
    2. Refer to: Wheel and Tire .

66. Connect the battery ground cable.

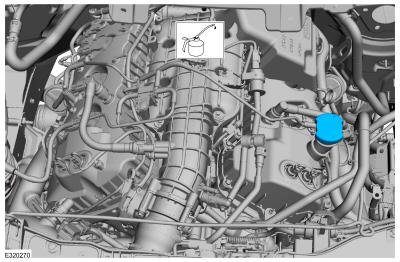

67. Fill the engine with clean engine oil. Refer to: Specifications .

    Courtesy of FORD MOTOR COMPANY

68. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
