Engine Oil Draining and Filling
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Special Tool(s) / General Equipment
| Oil Drain Equipment |
|---|
Activation

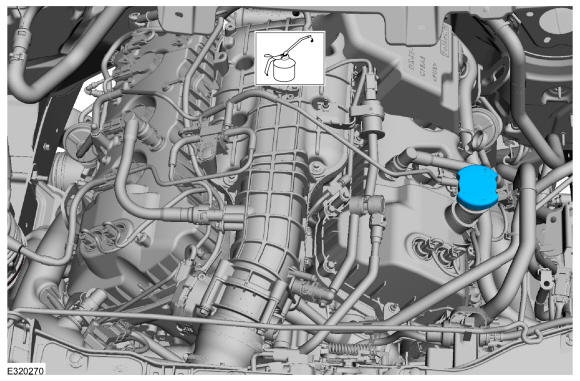

- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

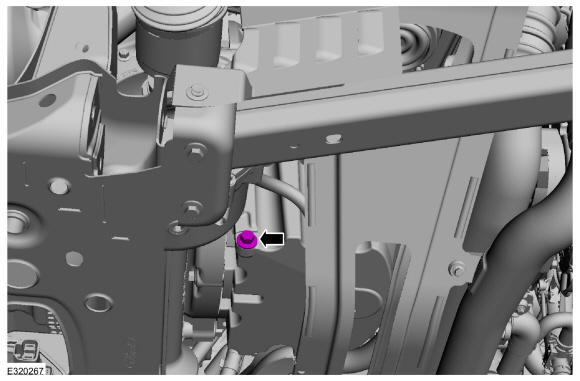

- Remove the oil pan drain plug and drain the engine oil.
Use the General Equipment: Oil Drain Equipment
- Install the oil drain plug.
Torque: 20 lb.ft (27 Nm)
- Remove the oil pan drain plug and drain the engine oil.

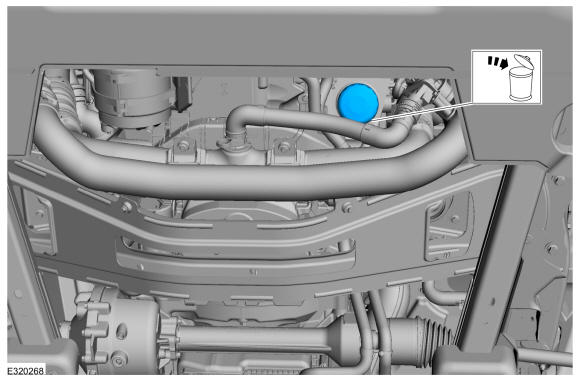

- Remove and discard the oil filter.

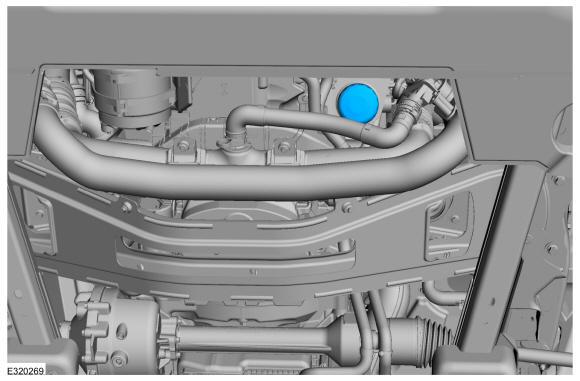

- Install a new oil filter.
Torque:
Stage 1: 44 lb.in (5 Nm)
Stage 2: 180°
- Fill the engine with clean engine oil. Refer to: Specifications .
