Cylinder Head: Disassembly

WARNING: This page is about a different variant/trim than selected.
NOTE: If replacing the cylinder head, do not reuse the secondary timing chain tensioners, they must be replaced or damage to the engine may occur. Refer to Variable Camshaft Timing (VCT) Unit .
NOTE: Vehicles with cast iron exhaust manifolds have 8 studs. Vehicles with stainless steel exhaust manifolds have 9 studs.

LH cylinder head

  1. Loosen the fitting and remove the turbocharger coolant supply tube.
    GFD565085Courtesy of FORD MOTOR COMPANY
  2. NOTE: Cylinder head equipped with cast iron exhaust manifold.

    Remove the nuts and the exhaust manifold, discard the nuts.

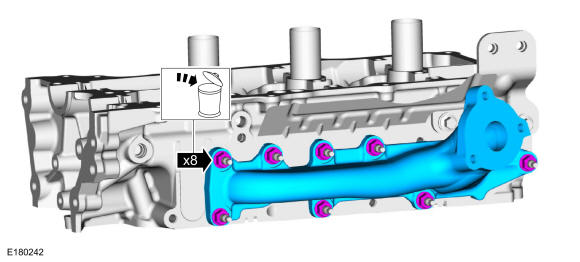

    GFD565086Courtesy of FORD MOTOR COMPANY
  3. NOTE: Cylinder head equipped with cast iron exhaust manifold.

    Remove and discard the studs and the exhaust manifold gasket.

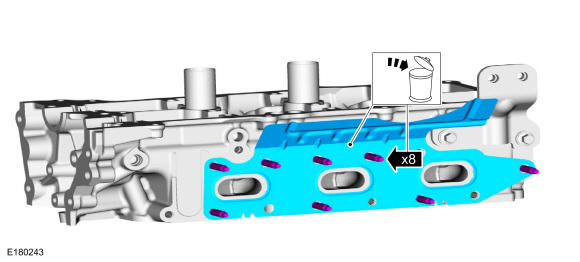

    GFD565087Courtesy of FORD MOTOR COMPANY
  4. This step is only necessary if the original cast iron exhaust manifold is being replaced by a stainless steel exhaust manifold. Using a bottoming tap, clean the threads of the stud holes that were not used for the original exhaust manifold.

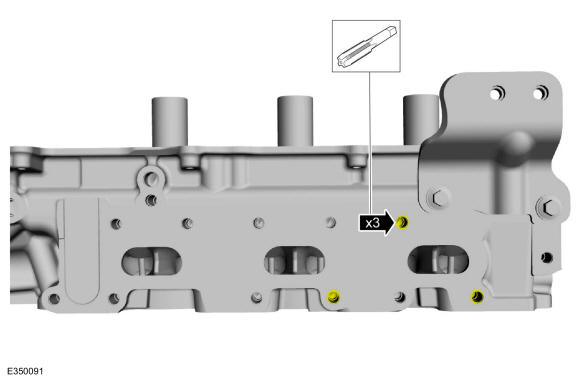

    GFD565088Courtesy of FORD MOTOR COMPANY
  5. NOTE: Cylinder head equipped with stainless steel exhaust manifold.

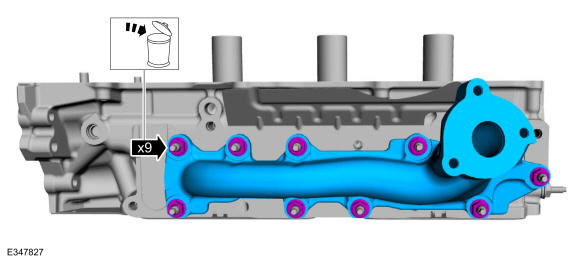

    Remove the nuts and the exhaust manifold, discard the nuts.

    GFD565089Courtesy of FORD MOTOR COMPANY
  6. NOTE: Cylinder head equipped with stainless steel exhaust manifold.

    Remove and discard the studs and the exhaust manifold gasket.

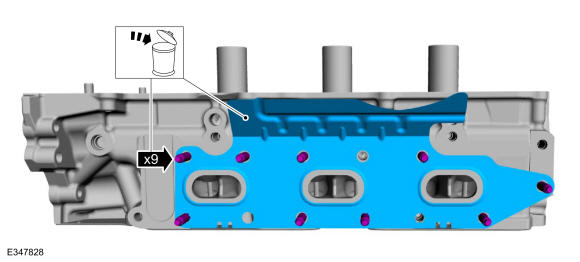

    GFD565090Courtesy of FORD MOTOR COMPANY
  7. Remove the bolts and the lift eye bracket.
    GFD565091Courtesy of FORD MOTOR COMPANY
  8. Remove the timing chain guide pin.
    GFD565092Courtesy of FORD MOTOR COMPANY

    RH cylinder head

  9. Loosen the fitting and remove the turbocharger coolant supply tube.
    GFD565093Courtesy of FORD MOTOR COMPANY
    • Remove the stud bolt.

    • Remove and discard the CHT sensor.

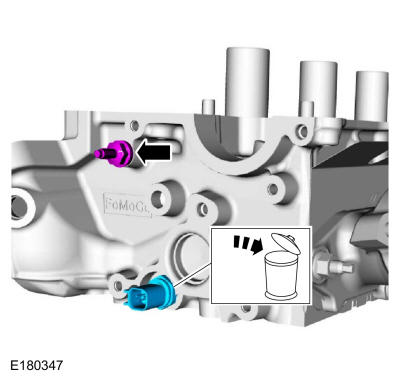

    GFD565094Courtesy of FORD MOTOR COMPANY
  10. NOTE: Cylinder head equipped with cast iron exhaust manifold.

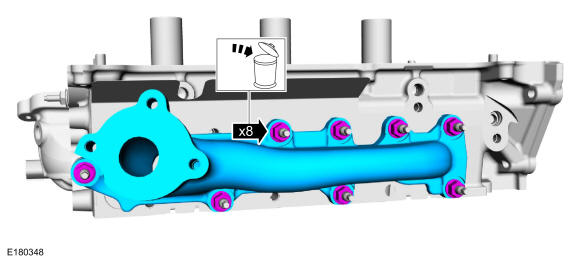

    Remove the nuts and the exhaust manifold, discard the nuts.

    GFD565095Courtesy of FORD MOTOR COMPANY
  11. NOTE: Cylinder head equipped with cast iron exhaust manifold.

    Remove and discard the studs and the exhaust manifold gasket.

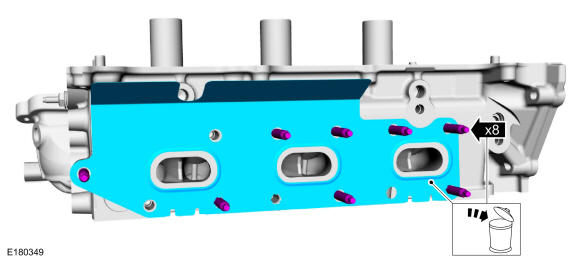

    GFD565096Courtesy of FORD MOTOR COMPANY

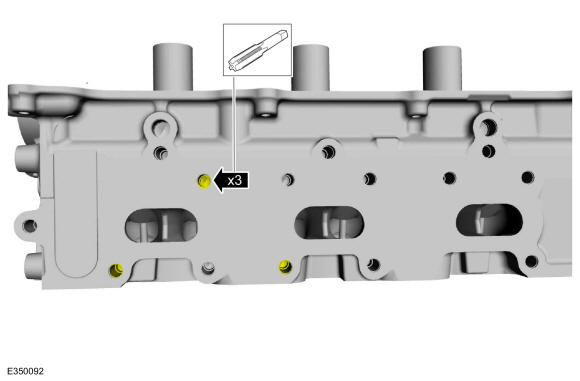

  12. This step is only necessary if the original cast iron exhaust manifold is being replaced by a stainless steel exhaust manifold. Using a bottoming tap, clean the threads of the stud holes that were not used for the original exhaust manifold.
    GFD565097Courtesy of FORD MOTOR COMPANY
  13. NOTE: Cylinder head equipped with stainless steel exhaust manifold.

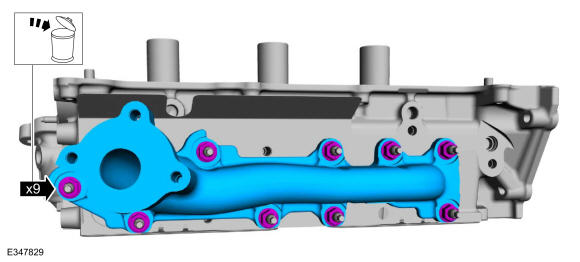

    Remove the nuts and the exhaust manifold, discard the nuts.

    GFD565098Courtesy of FORD MOTOR COMPANY
  14. NOTE: Cylinder head equipped with stainless steel exhaust manifold.

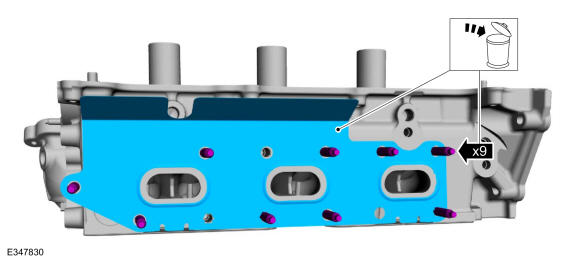

    Remove and discard the studs and the exhaust manifold gasket.

    GFD565099Courtesy of FORD MOTOR COMPANY
  15. Remove the timing chain tensioner arm and timing chain guide pins.
    GFD565100Courtesy of FORD MOTOR COMPANY

    All cylinder heads

  16. NOTE: RH shown in illustration LH similar.

    • Disconnect the fuel injector electrical connectors.

    • Remove and discard the fuel injector bolts.

    • NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.
      NOTE: When removing the fuel rails, the fuel injectors may remain in the cylinder heads and require the use of a Fuel Injector Remover tool to extract. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.

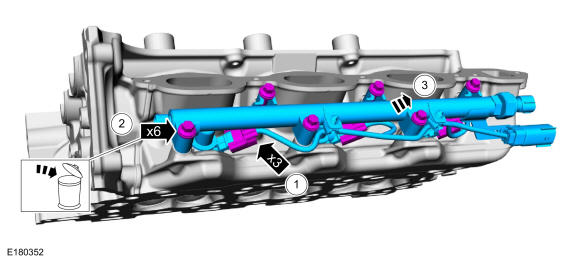

      Remove the fuel rail and fuel injectors.

    GFD565101Courtesy of FORD MOTOR COMPANY

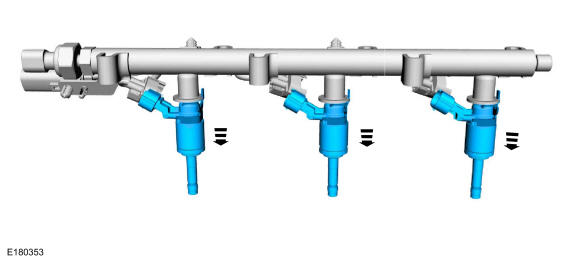

  17. Remove the fuel injectors from the fuel rail.
    GFD565102Courtesy of FORD MOTOR COMPANY

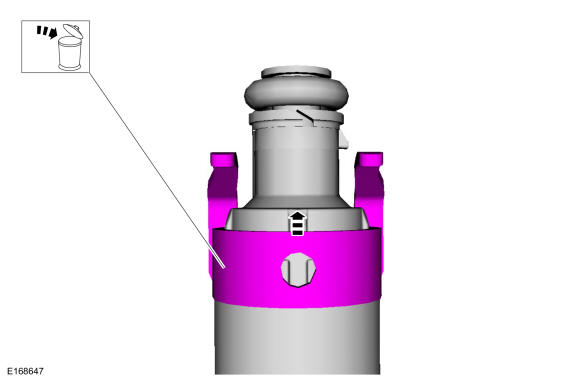

  18. Remove and discard the clips from all of the fuel injectors including any injectors that have remained in the cylinder head.
    GFD565103Courtesy of FORD MOTOR COMPANY
  19. NOTE: Use minimal force to remove the fuel injectors that remained in the cylinder head with the Fuel Injector Remover tool or damage to the fuel injector assembly may occur.

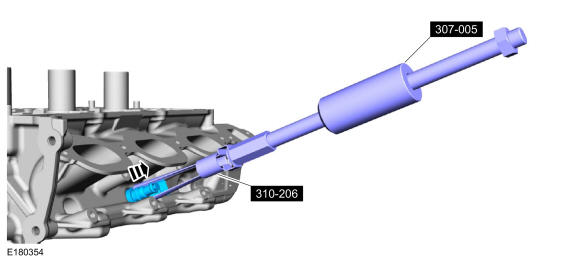

    Using the special tools, remove the fuel injectors that remained in the cylinder head.

    Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer, 310-206 Remover, Fuel Injector.

    GFD565104Courtesy of FORD MOTOR COMPANY
  20. NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.
    NOTE: Do not use compressed air to clean the tip of the fuel injector.
    NOTE: Do not use a brush to clean the tip of the fuel injector.

    Using the special tool, clean the cylinder head fuel injector bores.

    Use Special Service Tool: 310-205 Fuel Injector Brush.

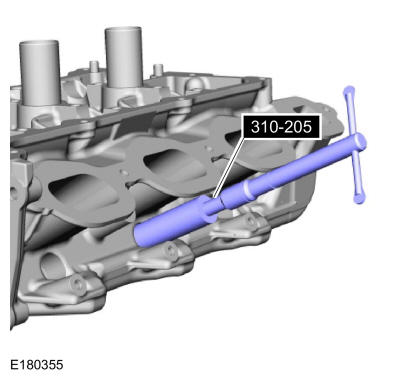

    GFD565105Courtesy of FORD MOTOR COMPANY
  21. Remove the spark plugs. Refer to: Spark Plugs .
  22. NOTE: LH shown in illustration, RH similar.
    NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

    Using the special tools, remove the valve collet, valve spring retainer and the valve spring.

    Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor, 303-350 (T89P-6565-A) Compressor, Valve Spring, 303-1249 Valve Spring Compressor.

    GFD565106Courtesy of FORD MOTOR COMPANY
  23. Remove and discard the valve stem seal.

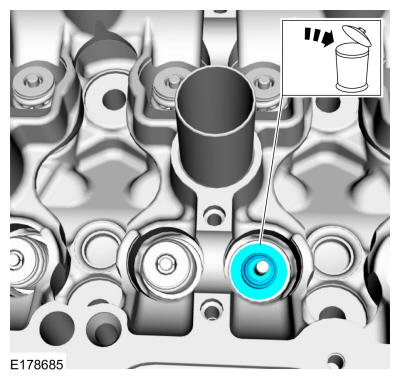

    GFD565107Courtesy of FORD MOTOR COMPANY
  24. Remove the valve.
    GFD565108Courtesy of FORD MOTOR COMPANY
  25. Repeat the previous 3 steps for each valve.
