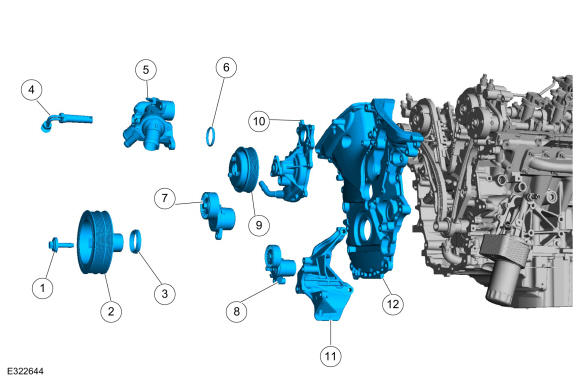

Exploded View Of Engine Front
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | W701512/N806165/N806165 | Crankshaft pulley bolt and washer |
| 2 | 6316 | Crankshaft pulley |
| 3 | 6700 | Crankshaft front seal |
| 4 | 030311 | Block heater |
| 5 | 8A586 | Thermostat housing assembly |
| 6 | 8A571 | Thermostat housing assembly O-ring seal |
| 7 | 6B209 | Accessory drive belt tensioner |
| 8 | 6A228 | Accessory drive belt tensioner |
| 9 | 8A528 | Coolant pump pulley |
| 10 | 8501 | Coolant pump |
| 11 | 8D611 | Generator bracket |
| 12 | 6019 | Engine front cover |
