Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details
- Remove the RH valve cover. Refer to: Valve Cover RH .

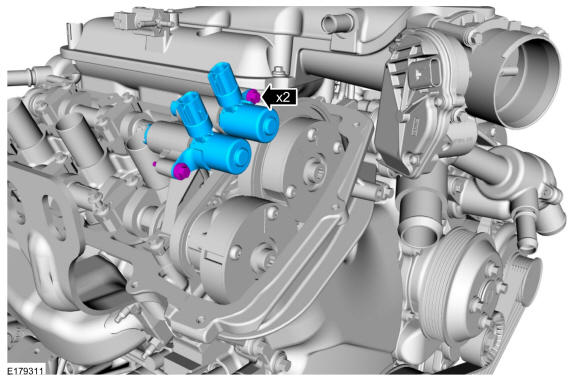

- Remove the bolts and the RH VCT oil control solenoids.
Torque:
Stage 1: 71 lb.in (8 Nm)
Stage 2: 20°
- Remove the LH valve cover. Refer to: VALVE COVER LH .

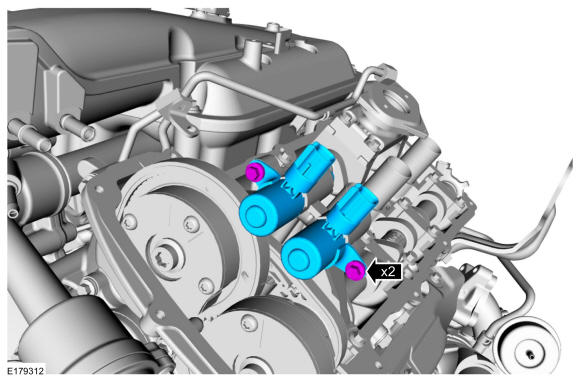

- Remove the bolts and the LH VCT oil control solenoids.
Torque:
Stage 1: 71 lb.in (8 Nm)
Stage 2: 20°
