Turbocharger Bypass Valve: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

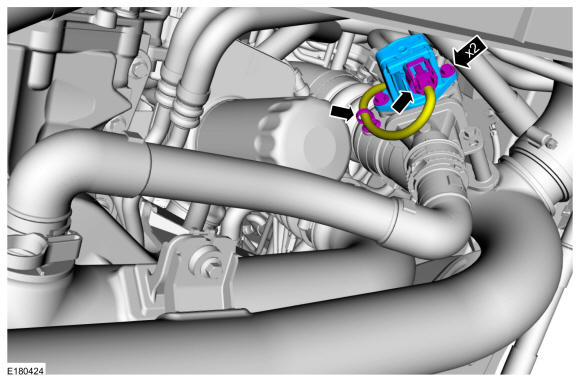

- Disconnect the Turbo bypass valve electrical connector and release the wiring retainer to position aside the harness.
- Remove the 2 bolts and the Turbo bypass valve.
Torque: 62 lb.in (7 Nm)
