Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
-
NOTE:
Removal steps in this procedure may contain installation details.

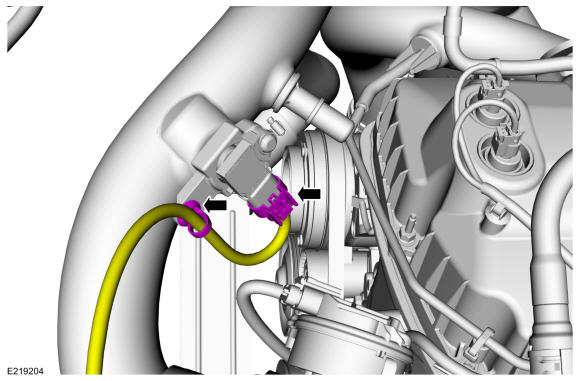

Disconnect the Turbocharger Boost Pressure and Charge Air Temperature Sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

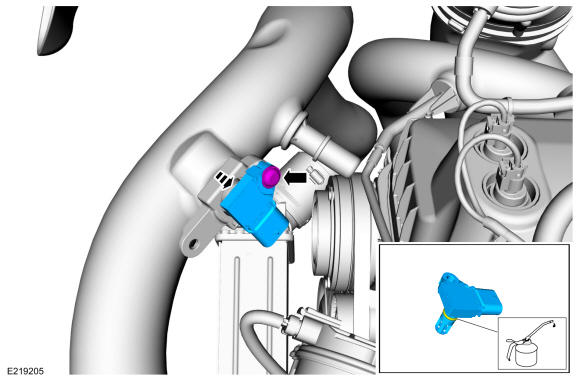

- Remove the screw and the Turbocharger Boost Pressure and Charge Air Temperature Sensor.
Torque: 27 lb.in (3 Nm)
 Courtesy of FORD MOTOR COMPANY
|
