Powertrain Control Module (PCM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description .

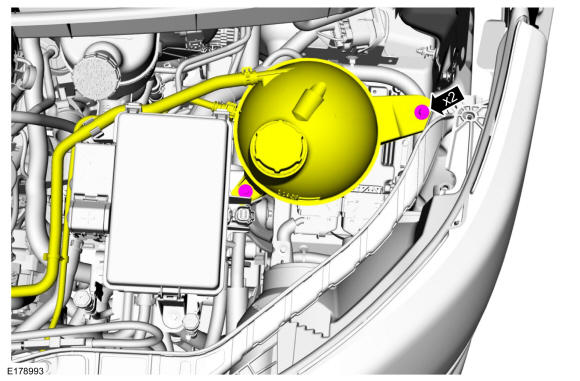

Remove the retainers and position aside the degas bottle.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

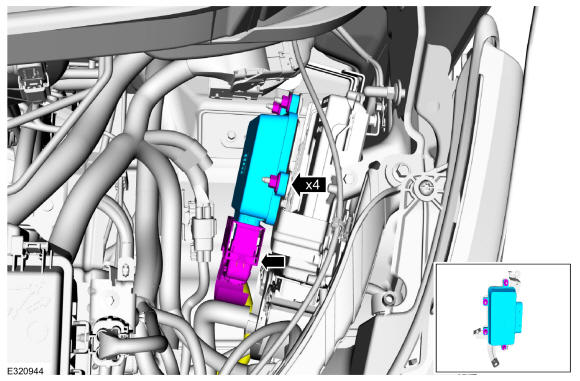

Disconnect the electrical connector. Remove the retainers and the module.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

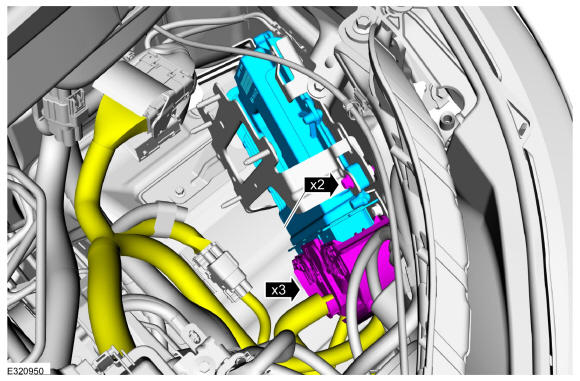

- Disconnect the PCM electrical connectors.
- Remove the mounting bolts and the PCM.
  Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
