Manifold Absolute Pressure and Temperature (MAPT) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

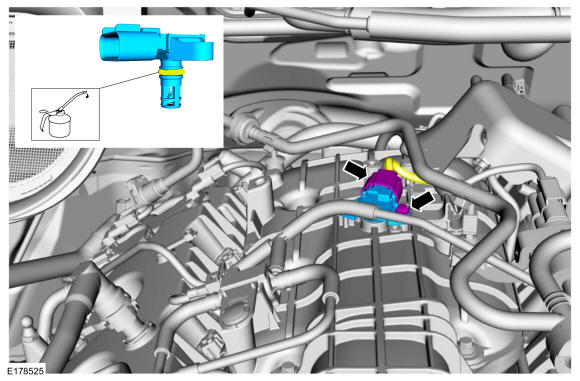

NOTE: Lubricate the O-ring seal with clean engine oil.
- Install the MAPT sensor and the bolt.
  Torque: 27 lb.in (3 Nm)
- Connect the MAPT electrical connector.

Courtesy of FORD MOTOR COMPANY
