Intake Air Temperature (IAT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

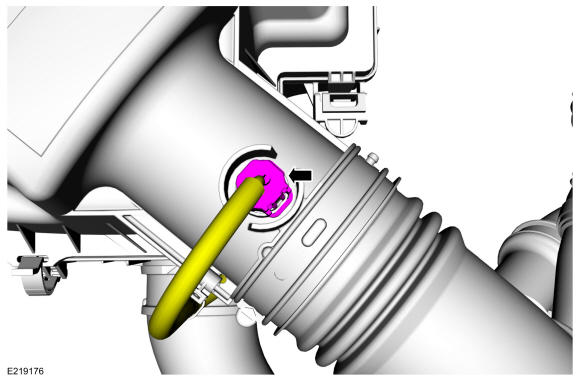

  1. NOTE: Removal steps in this procedure may contain installation details.

    Disconnect the IAT sensor electrical connector.

    GFD566516Courtesy of FORD MOTOR COMPANY

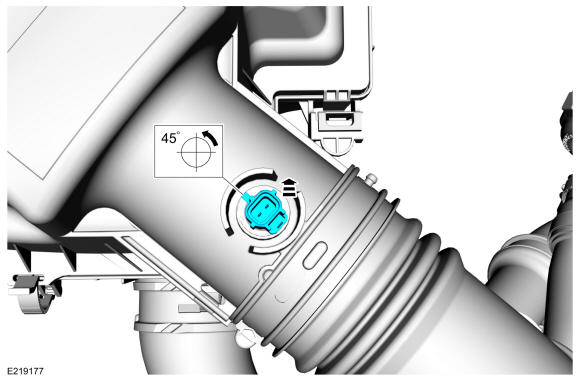

  2. Remove the IAT sensor.
GFD566517Courtesy of FORD MOTOR COMPANY
