Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

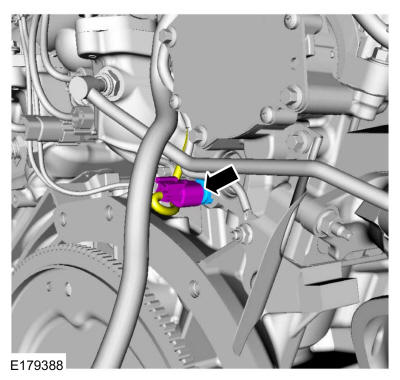

  1. Disconnect the CHT sensor electrical connector.
    GFD566507Courtesy of FORD MOTOR COMPANY

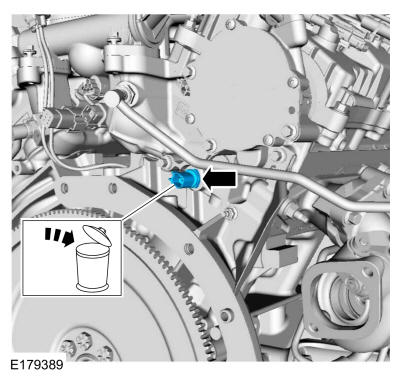

  2. Remove the CHT sensor.

    Torque: 89 lb.in (10 Nm)

GFD566508Courtesy of FORD MOTOR COMPANY
