Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the LH turbocharger. Refer to: Turbocharger LH .

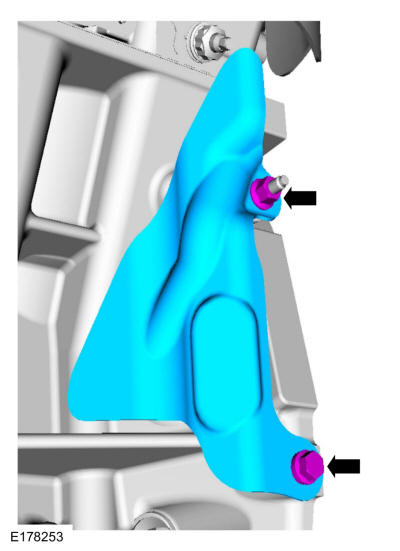

  2. Remove the retainers and heat shield.
    GFD566503Courtesy of FORD MOTOR COMPANY

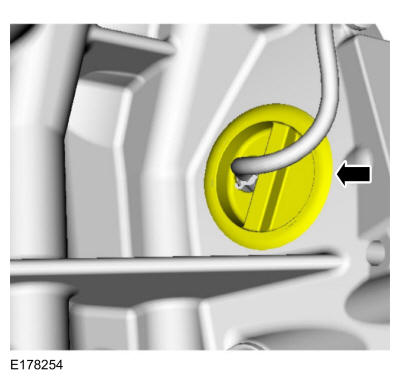

  3. Position aside the CKP sensor access plug.
    GFD566504Courtesy of FORD MOTOR COMPANY

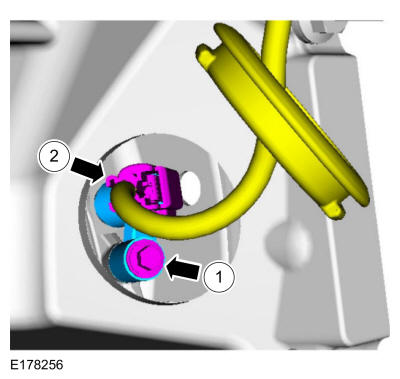

  4. NOTE: Remove the bolt and the CKP sensor from the bell housing before disconnecting the electrical connector to prevent the CKP sensor from falling in the bell housing.

    • Remove the CKP sensor bolt.

    • Remove the CKP sensor then disconnect the electrical connector.

GFD566505Courtesy of FORD MOTOR COMPANY
