Crankshaft Position (CKP) Sensor: Installation
WARNING: This page is about a different variant/trim than selected.
-

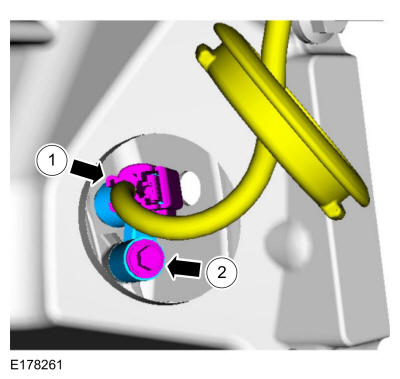

- Connect the electrical connector then install the CKP sensor.
- Install the bolt.
Torque: 89 lb.in (10 Nm)
- Position back the CKP sensor access plug.
- Install the heat shield and retainers.
Torque: 89 lb.in (10 Nm)
- Install the LH turbocharger. Refer to: Turbocharger LH .
- Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
