Camshaft Position (CMP) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

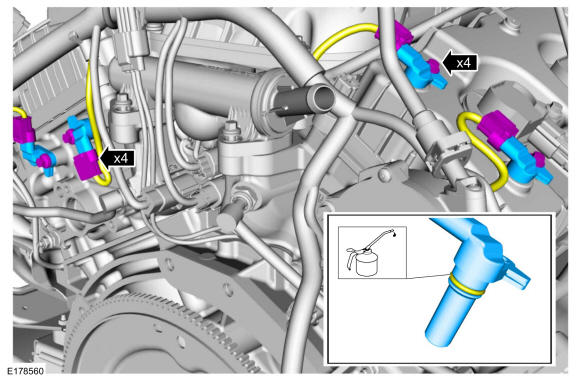

NOTE: Lubricate the O-ring seal with clean engine oil.
- Install the CMP sensors and the bolts.
  Torque: 89 lb.in (10 Nm)
- Connect the CMP connectors.

Courtesy of FORD MOTOR COMPANY
