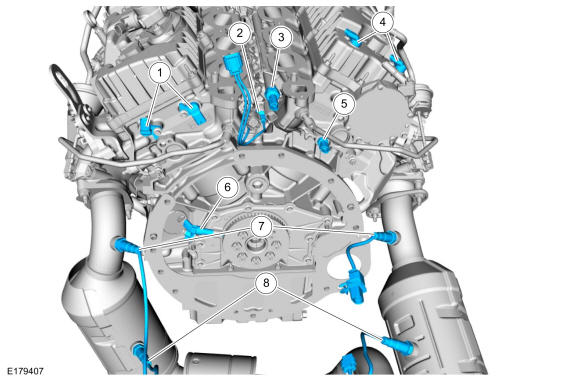

Electronic Engine Controls - Rear
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
LH CMP sensor |
| 2 |
KS |
| 3 |
FRP sensor |
| 4 |
RH CMP sensor |
| 5 |
CHT sensor |
| 6 |
CKP sensor |
| 7 |
HO2S |
| 8 |
Catalyst monitor sensor |
