Fuel Tank: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation steps.

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery ground cable.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Drain the fuel tank. Refer to: Fuel Tank Draining .

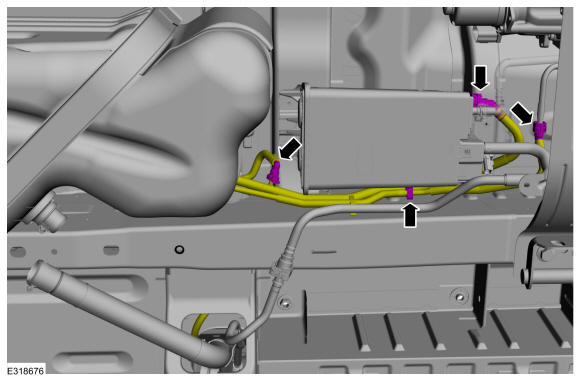

- Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- Release the retainer clip.
Courtesy of FORD MOTOR COMPANY

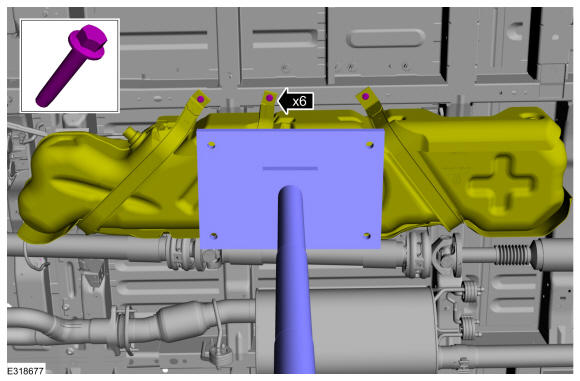

- Support the fuel tank with a transmission jack and remove the fuel tank strap bolts.
  Use the General Equipment: Transmission Jack

  Torque

  : 35 lb.ft (48 Nm)

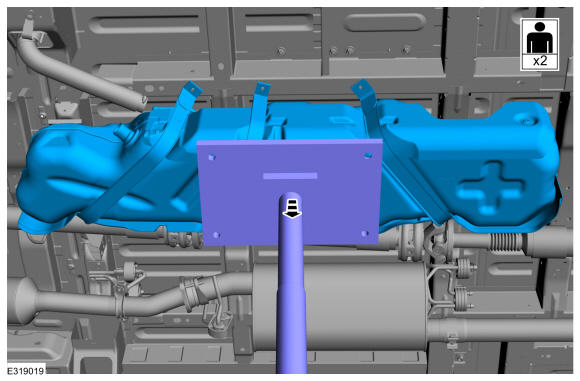

- Lower the fuel tank.
Courtesy of FORD MOTOR COMPANY

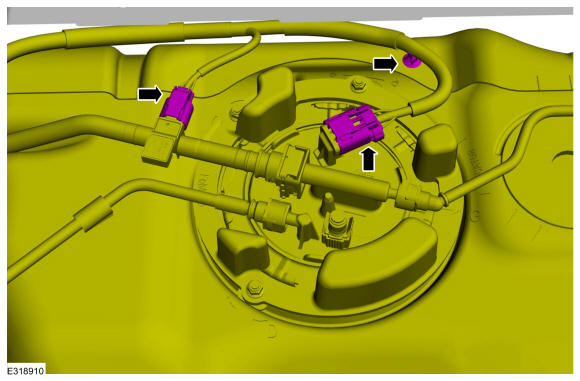

Disconnect the electrical connectors and detach the wiring harness clip.

Courtesy of FORD MOTOR COMPANY
NOTE: The procedure step requires the aid of the another technician.

Remove the fuel tank.

Courtesy of FORD MOTOR COMPANY
