Fuel Level Sender: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .

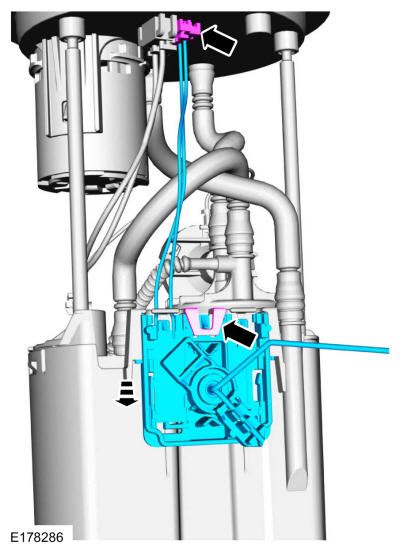

- Disconnect the fuel level sender electrical connector, release the retainer and remove the fuel level sender.
