Section 10 (Fuel Charging And Controls - 3.5L ECOBOOST (235KW/320PS))
>>
Description And Operation
>>

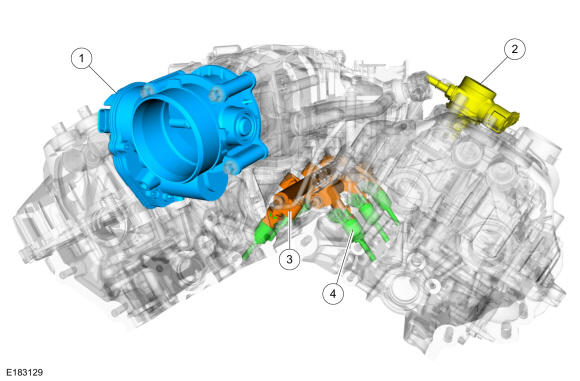

Fuel Charging and Controls - Component Location
>>
3.5L EcoBoost
3.5L EcoBoost
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Throttle body
2
High-pressure fuel pump
3
Fuel rail
4
Fuel injector
Courtesy of FORD MOTOR COMPANY
