Starting System

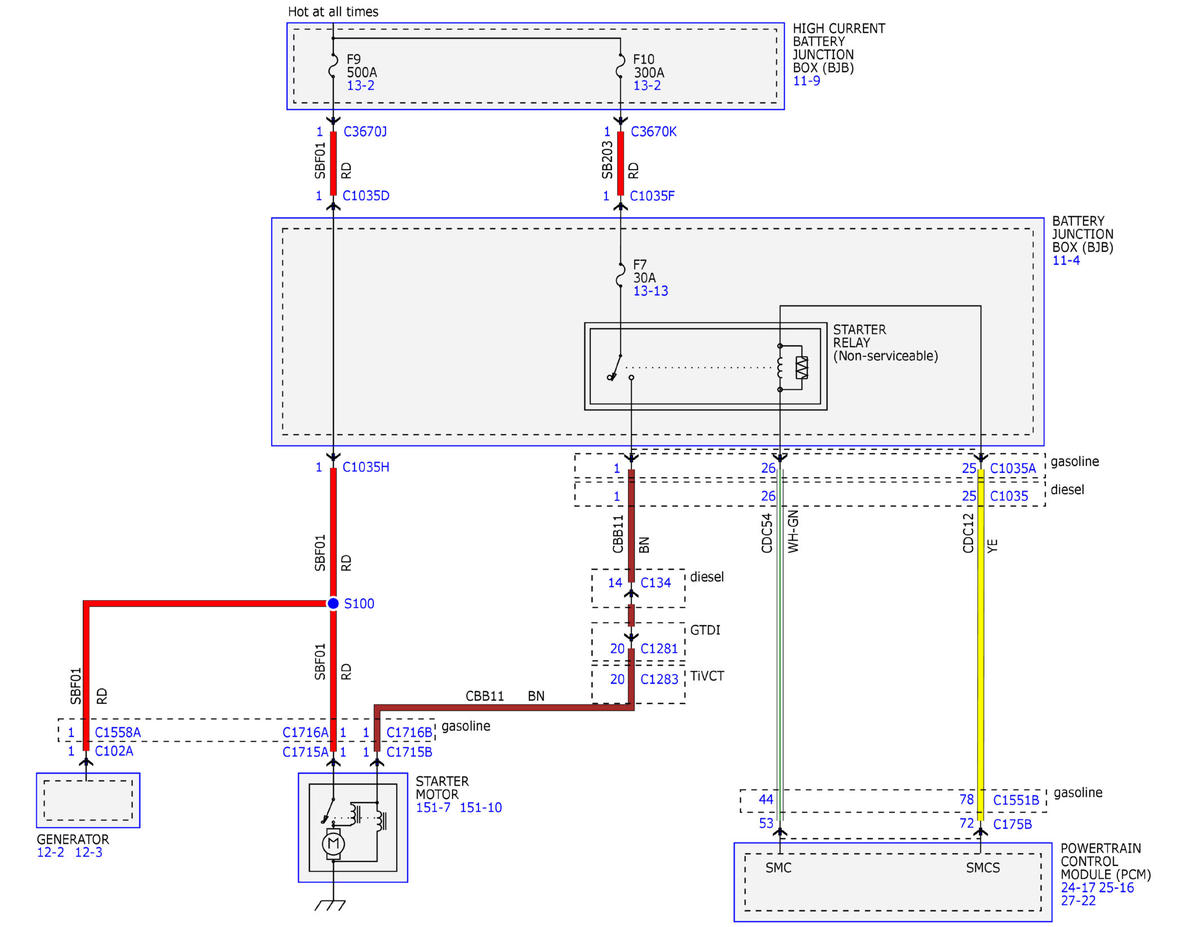

Fig 1: Starting System Wiring Diagrams (1 Of 3)
GFDWR127964Courtesy of FORD MOTOR COMPANY

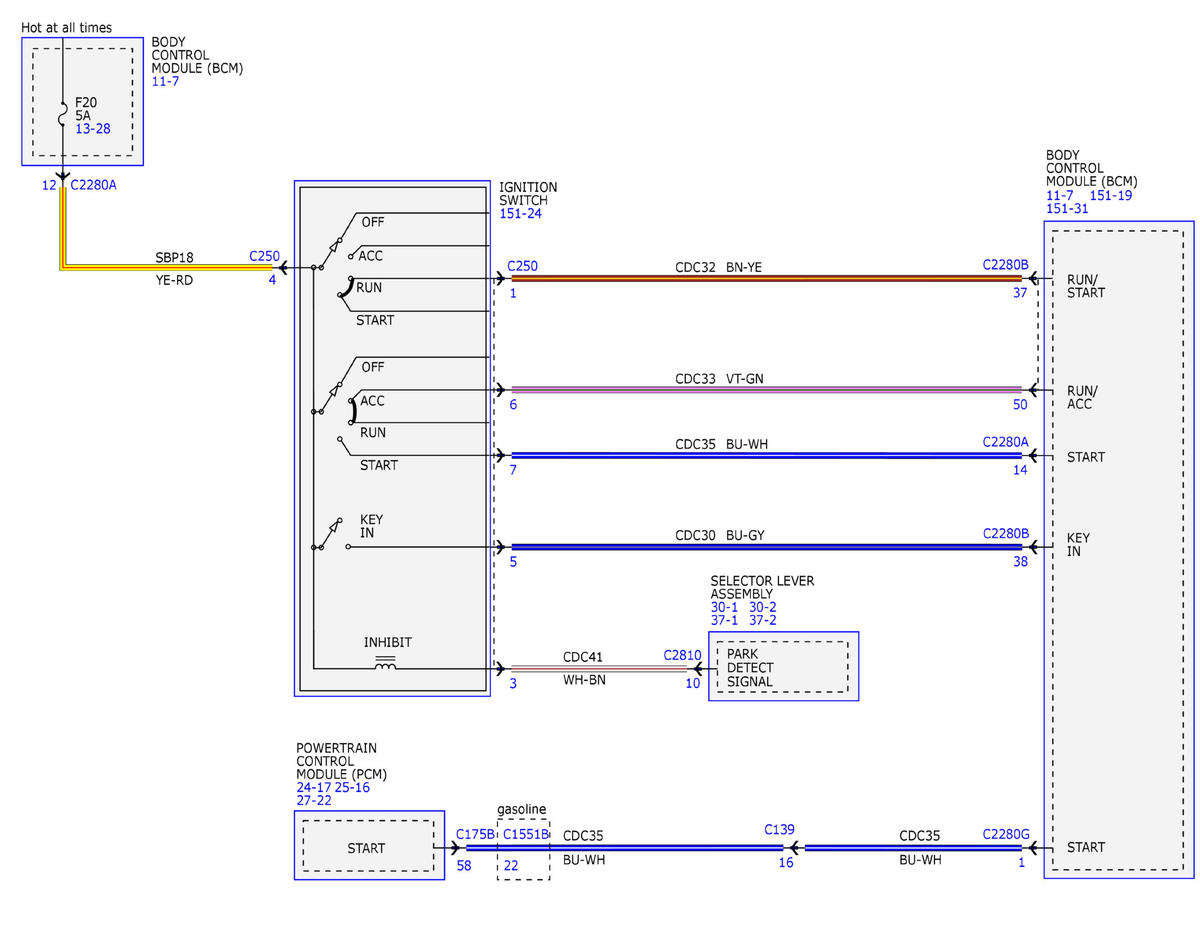

Fig 2: Starting System Wiring Diagrams (2 Of 3)
GFDWR127965Courtesy of FORD MOTOR COMPANY

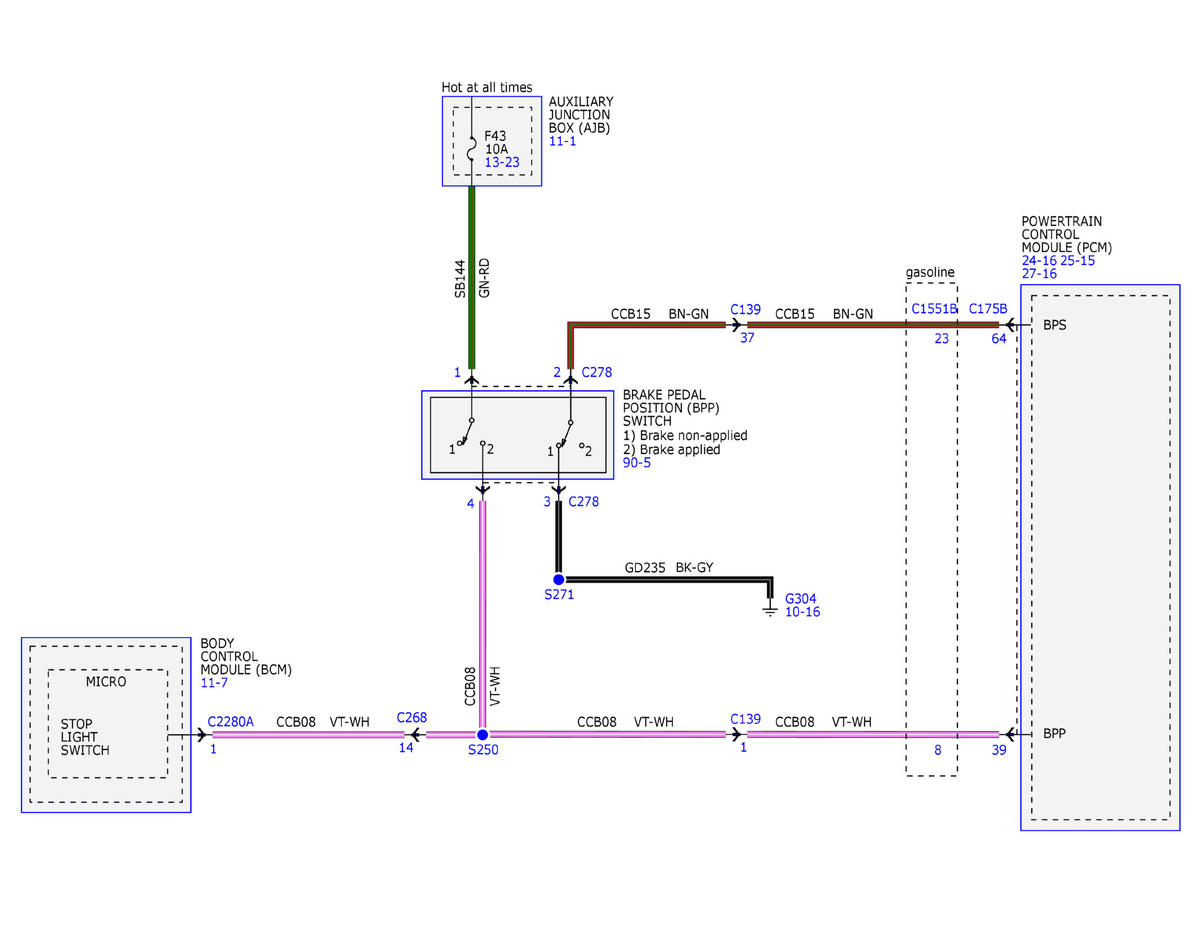

Fig 3: Starting System Wiring Diagrams (3 Of 3)
GFDWR127966Courtesy of FORD MOTOR COMPANY
