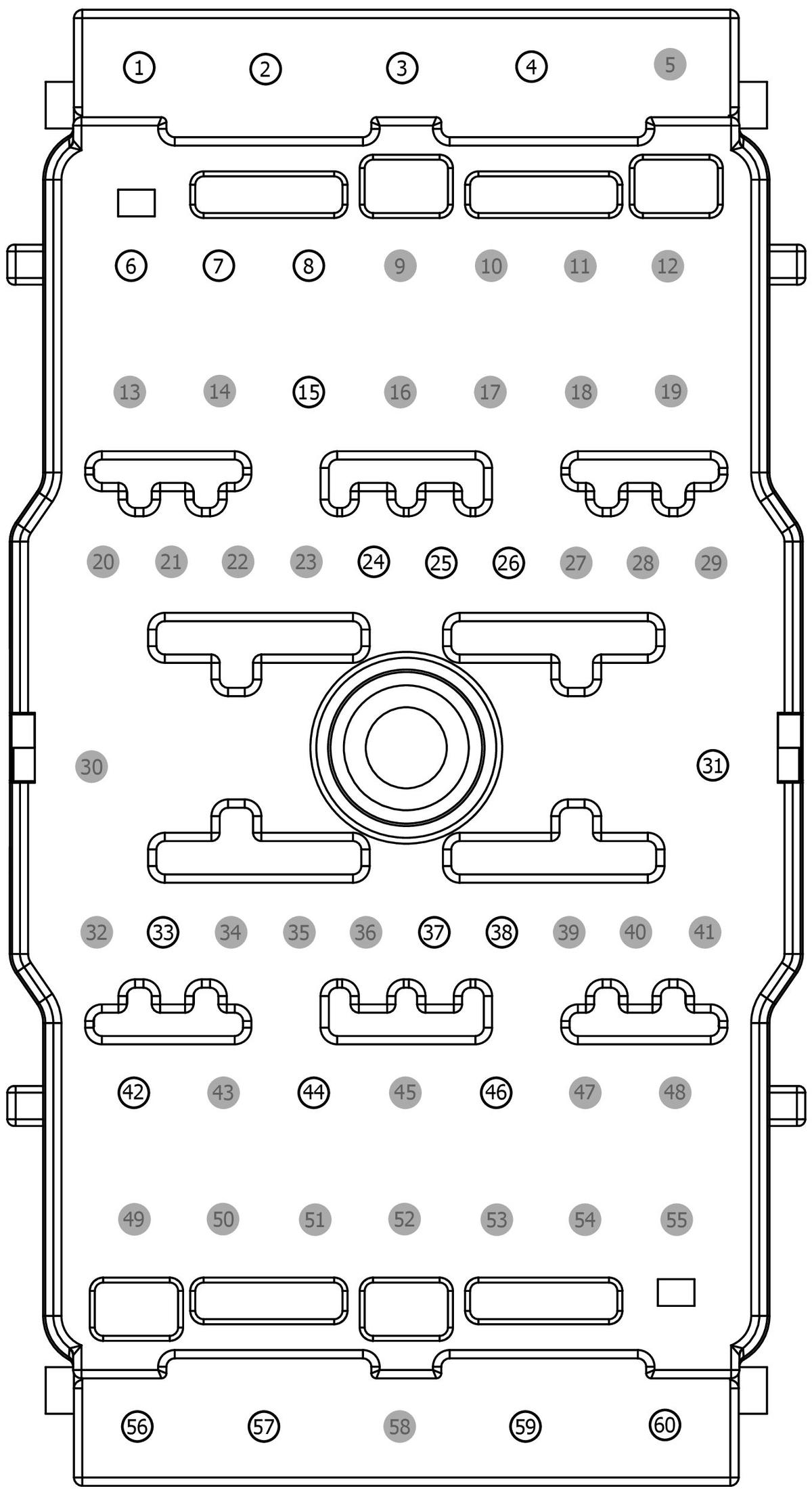

Connector End View (C1035A) - BATTERY JUNCTION BOX (BJB)

Connector: Description Color Harness Base Part # Service Pigtail
C1035A BATTERY JUNCTION BOX (BJB) 9K499 part# N/A Not Available
GFDWR127134Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
DU5T-14474-NBB EU2Z-14474-AB 2.80
DU5T-14474-LBB EU2Z-14474-AB 2.80
DU5T-14474-UBB KU2Z-14474-DA 6.30
DU5T-14474-JBB EU2Z-14474-AB 2.80
7C3T-14474-CA DU2Z-14474-DA 1.50
XF2T-14474-BA EU2Z-14474-AB 2.80
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CBB11 (BN) 12 STARTER CONTROL DU5T-14474-NBB
2 SBB28 (GN-RD) 14 FUSE - 28 OR CIRCUIT BREAKER light duty DU5T-14474-LBB
2 SBBB1 (WH-RD) 10 FUSE - 111 OR CIRCUIT BREAKER heavy duty DU5T-14474-UBB
3 CBB12 (GN-WH) 16 FUSE - 12 OR CIRCUIT BREAKER DU5T-14474-LBB
4 SBB29 (GY-RD) 10 FUSE - 29 OR CIRCUIT BREAKER DU5T-14474-UBB
5 * * Not Used N/A
6 CBB26 (BU-WH) 12 FUSE - 26 OR CIRCUIT BREAKER DU5T-14474-NBB
7 CBB23 (BN-YE) 20 FUSE - 23 OR CIRCUIT BREAKER DU5T-14474-JBB
8 CBB24 (VT-GN) 18 FUSE - 24 OR CIRCUIT BREAKER DU5T-14474-JBB
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 * * Not Used N/A
13 * * Not Used N/A
14 * * Not Used N/A
15 CBBF1 (BU-OG) 18 FUSE - 151 OR CIRCUIT BREAKER DU5T-14474-JBB
16 * * Not Used N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 * * Not Used N/A
20 * * Not Used N/A
21 * * Not Used N/A
22 * * Not Used N/A
23 * * Not Used N/A
24 CH302 (WH-BN) 18 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) 7C3T-14474-DA
25 CDC12 (YE) 18 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) 7C3T-14474-DA
26 CDC54 (WH-GN) 18 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) 7C3T-14474-DA
27 * * Not Used N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 SBB28 (GN-RD) 14 FUSE - 28 OR CIRCUIT BREAKER heavy duty DU5T-14474-LBB
31 CBB47 (GN-BU) 10 FUSE - 47 OR CIRCUIT BREAKER light duty DU5T-14474-UBB
32 * * Not Used N/A
33 CE302 (YE-BU) 20 CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) 7C3T-14474-CA
34 * * Not Used N/A
35 * * Not Used N/A
36 * * Not Used N/A
37 CEC01 (WH-BU) 20 CTRL MOD. - COOLING FAN CONTROL (FC2) 7C3T-14474-CA
38 CEC02 (GN-BU) 20 CTRL MOD. - COOLING FAN CONTROL (FC1) 7C3T-14474-CA
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 CBB06 (WH-BU) 14 FUSE - 6 OR CIRCUIT BREAKER DU5T-14474-LBB
43 * * Not Used N/A
44 CBB07 (GN-BU) 16 FUSE - 7 OR CIRCUIT BREAKER DU5T-14474-LBB
45 * * Not Used N/A
46 CBB08 (GY-YE) 16 FUSE - 8 OR CIRCUIT BREAKER DU5T-14474-LBB
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 * * Not Used N/A
52 * * Not Used N/A
53 * * Not Used N/A
54 * * Not Used N/A
55 * * Not Used N/A
56 CBB49 (VT-GY) 12 FUSE - 49 OR CIRCUIT BREAKER XF2T-14474-BA
57 CBB52 (GN-WH) 12 FUSE - 52 OR CIRCUIT BREAKER XF2T-14474-BA
58 * * Not Used N/A
59 GD119 (BK-BU) 10 GROUND - ENGINE COOLING FAN BRACKET light duty DU5T-14474-UBB
59 SBB47 (WH-RD) 10 FUSE - 47 OR CIRCUIT BREAKER heavy duty DU5T-14474-UBB
60 SBBA8 (GN-RD) 14 FUSE - 108 OR CIRCUIT BREAKER DU5T-14474-LBB
