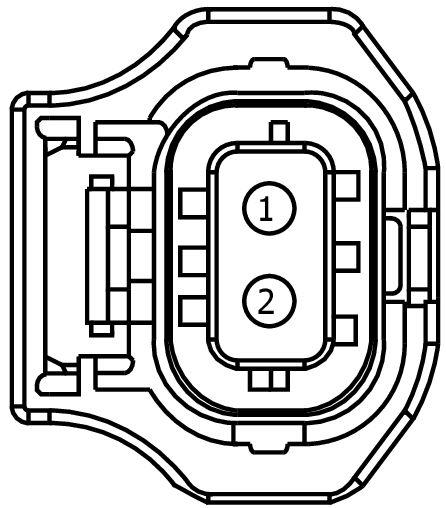

Connector End View (C4478) - PARKING BRAKE ACTUATOR MOTOR LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4478	PARKING BRAKE ACTUATOR MOTOR LH	14A107			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-TB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCB17 (BU)	12	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT UNLOCK (-)	EU5T-14474-TB
2	CCB16 (BK)	12	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT LOCK (+)	EU5T-14474-TB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1506

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-DB

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Actuator - Door Lock
• Fuel Injector
• Injector - UREA
• Sensor - Fuel Rail Pressure
• Solenoid - Engine Variable Timing
• Solenoid - Fuel Volume Regulator Control
• Valve - Fuel Metering
• Valve - Heated PCV
• Valve - Vapor Management
