Connector End View (C2280F) - BODY CONTROL MODULE (BCM)

Connector: Description Color Harness Base Part # Service Pigtail
C2280F BODY CONTROL MODULE (BCM) BK 14401 part# N/A Not Available

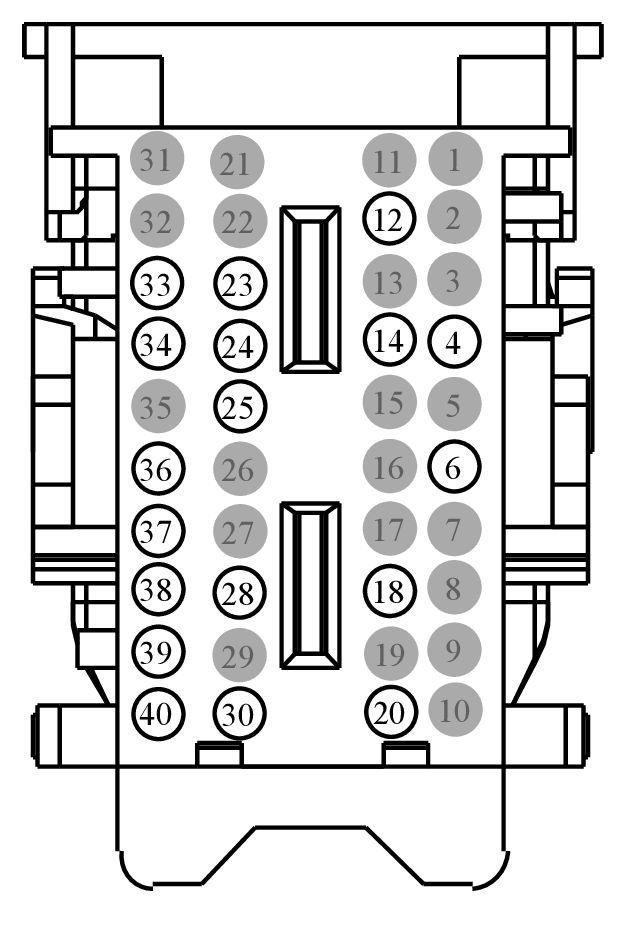

GFDWR127350Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-EB DU2Z-14474-AA 0.64
9U5T-14474-DB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 VDN03 (GY-VT) 18 CTRL MOD. - LIN BUS # BCM 3 9U5T-14474-EB
5 * * Not Used N/A
6 RLN29 (VT-GY) 22 CTRL MOD. - DOME LAMP - 9U5T-14474-DB
7 * * Not Used N/A
8 * * Not Used N/A
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 CAT11 (BN) 20 CTRL MOD. - TRAILER TOW # PARK LAMPS (COLOR TO SAE 1239) 9U5T-14474-DB
13 * * Not Used N/A
14 CRT17 (WH-BN) 22 SWITCH - ANTI THEFT INHIBIT # HOOD 9U5T-14474-DB
15 * * Not Used N/A
16 * * Not Used N/A
17 * * Not Used N/A
18 CE436 (VT-OG) 20 CTRL MOD. -WAKE UP PCM 9U5T-14474-DB
19 * * Not Used N/A
20 CRH04 (VT-GN) 22 CTRL MOD. - RELAY HORN 9U5T-14474-DB
21 * * Not Used N/A
22 * * Not Used N/A
23 CDC71 (YE-GY) 20 CTRL MOD. - POWER OUTLET ENABLE OR SET 9U5T-14474-DB
24 CDC64 (WH-BU) 20 RELAY - RUN ACCESSORY 9U5T-14474-DB
25 CDC01 (GN-VT) 20 CTRL MOD. - RELAY IGNITION 9U5T-14474-DB
26 * * Not Used N/A
27 * * Not Used N/A
28 CMC19 (GY-VT) 22 SWITCH - LOW LEVEL BRAKE FLUID 9U5T-14474-DB
29 * * Not Used N/A
30 CLS06 (GN-OG) 20 CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT 9U5T-14474-DB
31 * * Not Used N/A
32 * * Not Used N/A
33 CDC72 (BN-WH) 20 CTRL MOD. - POWER OUTLET DISABLE OR RESET 9U5T-14474-DB
34 CE607 (BN-YE) 22 RELAY - ENGINE RUNNING 9U5T-14474-DB
35 * * Not Used N/A
36 CLF62 (VT-WH) 18 CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT 9U5T-14474-EB
37 CLS07 (BN-YE) 18 CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT 9U5T-14474-DB|9U5T-14474-EB
38 CLS25 (YE-VT) 18 CTRL MOD. - TURN LAMP RIGHT FRONT 9U5T-14474-EB
39 CLS21 (BU-GN) 18 CTRL MOD. - TURN LAMP LEFT FRONT 9U5T-14474-EB
40 CLF61 (GY-BU) 18 CTRL MOD. - DAYTIME RUNNING LIGHT LEFT 9U5T-14474-EB
