Connector End View (C2280E) - BODY CONTROL MODULE (BCM)

Connector: Description Color Harness Base Part # Service Pigtail
C2280E BODY CONTROL MODULE (BCM) BU 14401 part# N/A Not Available

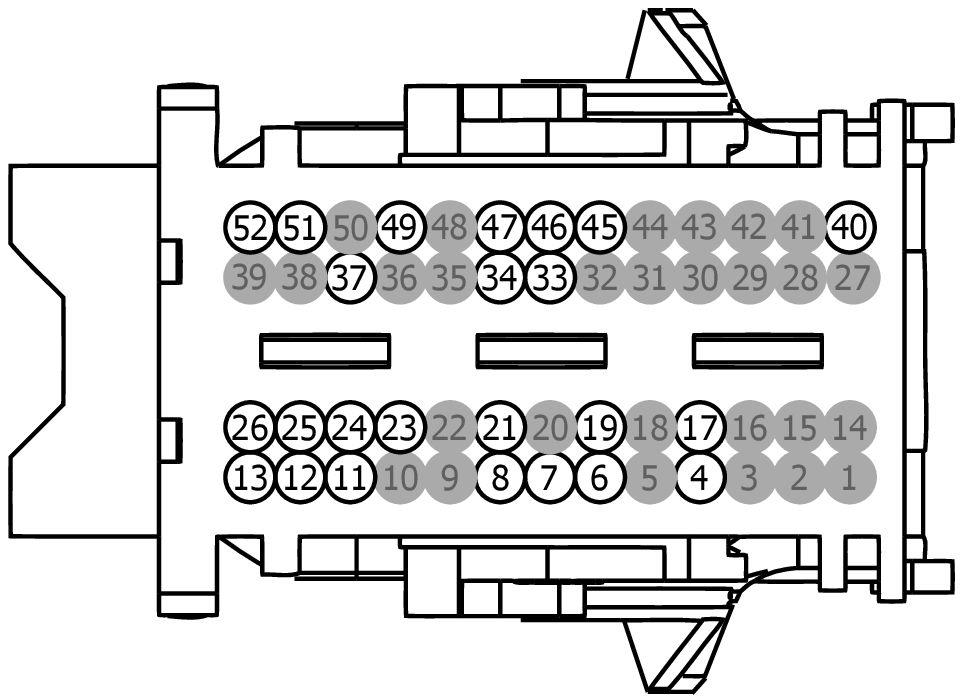

GFDWR127349Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-DB DU2Z-14474-AA 0.64
9U5T-14474-EB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 CPL43 (VT-GY) 22 SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK 9U5T-14474-DB
5 * * Not Used N/A
6 CBP19 (BN-WH) 22 FUSE - 19 OR CIRCUIT BREAKER 9U5T-14474-DB
7 CBP35 (YE-GY) 18 FUSE - 35 OR CIRCUIT BREAKER 9U5T-14474-EB
8 CLN13 (WH-BU) 20 SWITCH - TRUNK/CARGO LAMP 9U5T-14474-DB
9 * * Not Used N/A
10 * * Not Used N/A
11 CDC65 (GN-BU) 20 RELAY - LOAD MANAGEMENT (LOAD SHED) 9U5T-14474-DB
12 CET53 (BU-OG) 18 CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK 9U5T-14474-EB
13 CLS17 (YE-GY) 18 CTRL MOD. - STOP HIGH MOUNT 9U5T-14474-EB
14 * * Not Used N/A
15 * * Not Used N/A
16 * * Not Used N/A
17 CPL42 (GY-YE) 22 SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK 9U5T-14474-DB
18 * * Not Used N/A
19 CPL39 (YE) 22 SWITCH - LATCH REAR PASSENGER SIDE OR RIGHT REAR # AJAR (INCL.SLIDING DOOR) 9U5T-14474-DB
20 * * Not Used N/A
21 CPL31 (WH) 22 SWITCH - LATCH PASSENGER OR RIGHT FRONT # AJAR 9U5T-14474-DB
22 * * Not Used N/A
23 CLS53 (GY-VT) 20 CTRL MOD. - STOP/TURN RIGHT OUTBOARD 9U5T-14474-DB
24 CLS51 (WH-GN) 20 CTRL MOD. - STOP/TURN LEFT OUTBOARD 9U5T-14474-DB
25 CLS08 (VT-GN) 20 CTRL MOD. - PARK REAR LEFT 9U5T-14474-DB
26 CLS51 (WH-GN) 20 CTRL MOD. - STOP/TURN LEFT OUTBOARD 9U5T-14474-DB
26 CLS23 (GY-OG) 20 CTRL MOD. - TURN LAMP LEFT REAR chassis cab 9U5T-14474-DB
27 * * Not Used N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 * * Not Used N/A
32 * * Not Used N/A
33 CPL26 (GN-VT) 22 SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR 9U5T-14474-DB
34 CPL81 (GY) 22 CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID/CARGO AJAR 9U5T-14474-DB
35 * * Not Used N/A
36 * * Not Used N/A
37 VDN04 (VT-WH) 20 CTRL MOD. - LIN BUS # BCM 4 9U5T-14474-DB
38 * * Not Used N/A
39 * * Not Used N/A
40 CAT13 (GN-OG) 20 CTRL MOD. - TRAILER TOW # TRAILER CONNECT SIGNAL 9U5T-14474-DB
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 * * Not Used N/A
45 CPL70 (WH-BN) 18 SWITCH - LATCH REAR PASSENGER SIDE # CHILD LOCK FEEDBACK 9U5T-14474-EB
46 CPL36 (GN) 22 SWITCH - LATCH REAR DRIVER SIDE OR LEFT REAR # AJAR (INCL.SLIDING DOOR) 9U5T-14474-DB
47 CMC25 (WH-VT) 20 SWITCH - PARKING BRAKE 9U5T-14474-DB
48 * * Not Used N/A
49 CR167 (YE-VT) 20 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) 9U5T-14474-DB
50 * * Not Used N/A
51 CLS09 (WH-OG) 20 CTRL MOD. - PARK REAR RIGHT 9U5T-14474-DB
52 CLS53 (GY-VT) 20 CTRL MOD. - STOP/TURN RIGHT OUTBOARD 9U5T-14474-DB
52 CLS27 (GN-OG) 20 CTRL MOD. - TURN LAMP RIGHT REAR chassis cab 9U5T-14474-DB
