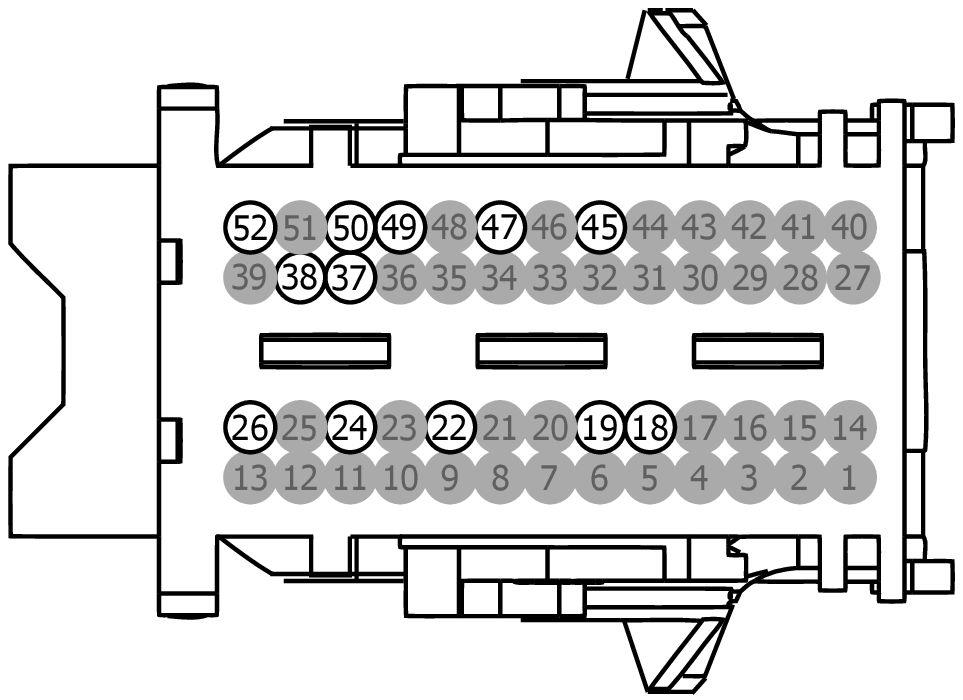

Connector End View (C2280B) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280B	BODY CONTROL MODULE (BCM)	BK	14K024	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
9U5T-14474-EB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	CRH02 (BU-WH)	20	SWITCH - HORN	9U5T-14474-DB
19	CLS32 (BN-YE)	22	SWITCH - HAZARD	9U5T-14474-DB
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	RLF14 (GY-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) -	9U5T-14474-DB
23	*	*	Not Used	N/A
24	VLF14 (BU-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +	9U5T-14474-DB
25	*	*	Not Used	N/A
26	VPL56 (BU-GY)	20	RECEIVER - REMOTE RF	9U5T-14474-DB
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	CDC32 (BN-YE)	18	SWITCH - IGNITION # RUN	9U5T-14474-EB
38	CDC30 (BU-GY)	18	SWITCH - IGNITION # KEY IN	9U5T-14474-EB
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-DB
46	*	*	Not Used	N/A
47	CPK43 (GY-VT)	20	CTRL MOD. - KEYLESS VEHICLE # PASSIVE ANTITHEFT MODULE POWER (PATS_PWR)	9U5T-14474-DB
48	*	*	Not Used	N/A
49	VLF25 (GN-VT)	20	CTRL MOD. - LIGHT SWITCH LIN BUS	9U5T-14474-DB
50	CDC33 (VT-GN)	18	SWITCH - IGNITION # RUN ACCESSORY	9U5T-14474-EB
51	*	*	Not Used	N/A
52	VDN01 (BU-WH)	20	CTRL MOD. - LIN BUS # BCM 1	9U5T-14474-DB
