Connector End View (C175B) - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C175B POWERTRAIN CONTROL MODULE (PCM) BK 9K499 part# N/A Not Available

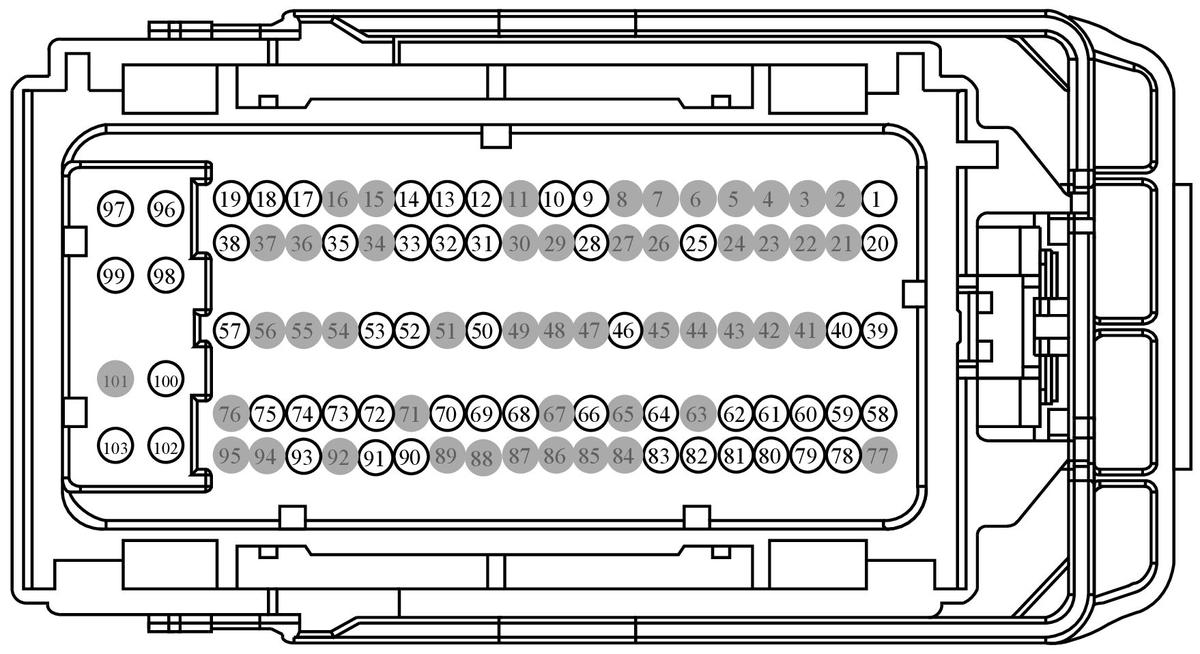

GFDWR126917Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
7C3T-14474-EA DU2Z-14474-DA 1.50
BU5T-14474-AB DU2Z-14474-CA 0.64
BU5T-14474-BB DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 GD121 (BK-YE) 18 GROUND - FENDER FRONT LEFT # 2ND POINT BU5T-14474-BB
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 * * Not Used N/A
9 LE423 (GN-VT) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) BU5T-14474-AB
10 VE925 (GN-WH) 20 SWITCH - POWER TAKE OFF RPM ADJUST (PTO_RPM) BU5T-14474-AB
11 * * Not Used N/A
12 LE137 (BU-GY) 18 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) BU5T-14474-BB
13 CE378 (GN-VT) 20 CTRL MOD. - POWERTRAIN # MASS AIR FLOW AND INTAKE AIR TEMP. SENSOR REFERENCE VOLTAGE BU5T-14474-AB
14 LE136 (GN-OG) 18 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) BU5T-14474-BB
15 * * Not Used N/A
16 * * Not Used N/A
17 CE326 (BU-WH) 20 CTRL MOD. - POWERTRAIN # POWER TAKE OFF OK INDICATOR (PTO_OKAY) (PTO_IND) BU5T-14474-AB
18 VE225 (YE-OG) 20 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) BU5T-14474-AB
19 VE462 (WH-BN) 18 CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE BU5T-14474-BB
20 CE140 (BN) 20 CTRL MOD. - POWERTRAIN # BATTERY CHARGE PROTECT INDICATOR (BCHPL) (BCPIL) BU5T-14474-AB
21 * * Not Used N/A
22 * * Not Used N/A
23 * * Not Used N/A
24 * * Not Used N/A
25 RE407 (YE-VT) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) BU5T-14474-BB
26 * * Not Used N/A
27 * * Not Used N/A
28 RH433 (BU-GY) 20 TRANSDUCER - A/C PRESSURE (ACPT) - BU5T-14474-AB
29 * * Not Used N/A
30 * * Not Used N/A
31 RE137 (YE-GN) 18 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) BU5T-14474-BB
32 RE320 (BU) 20 CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN) BU5T-14474-AB
33 RE136 (VT-GN) 18 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) BU5T-14474-BB
34 * * Not Used N/A
35 RE823 (GY-YE) 20 SENSOR - WATER IN FUEL - BU5T-14474-AB
36 * * Not Used N/A
37 * * Not Used N/A
38 VMC02 (BU-WH) 20 CTRL MOD. - POWERTRAIN # CLEAN TACHOMETER OUTPUT (CTO) BU5T-14474-AB
39 CCB08 (VT-WH) 20 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN BU5T-14474-AB
40 VE518 (BN-WH) 20 MONITOR - FUEL PUMP (FPM) BU5T-14474-AB
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 * * Not Used N/A
45 * * Not Used N/A
46 CE913 (BU) 20 SWITCH - POWER TAKE OFF IDLE CONTROL 1 (PTOIC) BU5T-14474-AB
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 VE702 (BU-WH) 20 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) BU5T-14474-AB
51 * * Not Used N/A
52 VE701 (YE-OG) 20 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) BU5T-14474-AB
53 CDC12 (YE) 18 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) BU5T-14474-BB
54 * * Not Used N/A
55 * * Not Used N/A
56 * * Not Used N/A
57 CEC02 (GN-BU) 18 CTRL MOD. - COOLING FAN CONTROL (FC1) BU5T-14474-BB
58 CDC35 (BU-WH) 18 SWITCH - IGNITION # START BU5T-14474-BB
59 CE302 (YE-BU) 20 CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) BU5T-14474-AB
60 CE436 (VT-OG) 20 CTRL MOD. -WAKE UP PCM BU5T-14474-AB
61 CET40 (GN-OG) 20 SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN) BU5T-14474-AB
62 CR167 (YE-VT) 20 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) BU5T-14474-AB
63 * * Not Used N/A
64 CCB15 (BN-GN) 20 SWITCH - BRAKE ON/OFF (BOO) NORMAL CLOSED BU5T-14474-AB
65 * * Not Used N/A
66 VE750 (GN-BU) 18 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) BU5T-14474-BB
67 * * Not Used N/A
68 VE807 (YE-VT) 20 SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) BU5T-14474-AB
69 VE823 (BU-BN) 20 SENSOR - WATER IN FUEL + BU5T-14474-AB
70 VH433 (VT-OG) 20 TRANSDUCER - A/C PRESSURE (ACPT) + BU5T-14474-AB
71 * * Not Used N/A
72 CDC54 (WH-GN) 18 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) BU5T-14474-BB
73 CEC01 (WH-BU) 18 CTRL MOD. - COOLING FAN CONTROL (FC2) BU5T-14474-BB
74 CE926 (VT-BN) 20 SWITCH - BATTERY CHARGE PROTECT MODE (BCPSW) BU5T-14474-AB
75 VE380 (YE-VT) 20 CTRL MOD. - POWERTRAIN # REDUCTANT INJECTOR COOLANT PUMP BU5T-14474-AB
76 * * Not Used N/A
77 * * Not Used N/A
78 CH302 (WH-BN) 18 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) BU5T-14474-BB
79 CBB24 (VT-GN) 20 FUSE - 24 OR CIRCUIT BREAKER BU5T-14474-AB
80 VDB05 (WH) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW BU5T-14474-AB
81 VDB04 (BU) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH BU5T-14474-AB
82 VE254 (BN-WH) 20 CTRL MOD. - POWERTRAIN # GLOW PLUG CONTROL CAN BUS LOW BU5T-14474-AB
83 VE253 (YE-GY) 20 CTRL MOD. - POWERTRAIN # GLOW PLUG CONTROL CAN BUS HIGH BU5T-14474-AB
84 * * Not Used N/A
85 * * Not Used N/A
86 * * Not Used N/A
87 * * Not Used N/A
88 * * Not Used N/A
89 * * Not Used N/A
90 RE226 (GN-VT) 18 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - BU5T-14474-BB
91 CE226 (YE-VT) 18 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + BU5T-14474-BB
92 * * Not Used N/A
93 CE148 (YE-GY) 20 CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE BU5T-14474-AB
94 * * Not Used N/A
95 * * Not Used N/A
96 GD120 (BK-GN) 16 GROUND - FENDER FRONT LEFT 7C3T-14474-EA
97 GD120 (BK-GN) 16 GROUND - FENDER FRONT LEFT 7C3T-14474-EA
98 GD120 (BK-GN) 16 GROUND - FENDER FRONT LEFT 7C3T-14474-EA
99 GD120 (BK-GN) 16 GROUND - FENDER FRONT LEFT 7C3T-14474-EA
100 CBB06 (WH-BU) 16 FUSE - 6 OR CIRCUIT BREAKER 7C3T-14474-EA
101 * * Not Used N/A
102 CBB06 (WH-BU) 16 FUSE - 6 OR CIRCUIT BREAKER 7C3T-14474-EA
103 CBB06 (WH-BU) 16 FUSE - 6 OR CIRCUIT BREAKER 7C3T-14474-EA
