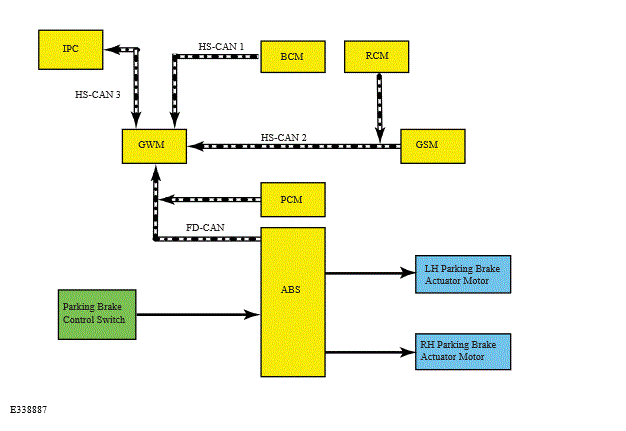

Home >> Ford >> 2021 >> Transit-250 Base, Van Cargo Extended, 3.5L Eng VIN 8, AWD >> Repair and Diagnosis >> Brakes >> Parking Brake System >> Parking Brake And Actuation - Vehicles With: Electronic Parking Brake (EPB) >> Description And Operation >> Parking Brake - System Operation and Component Description >> System Operation >> System Diagram
