Instrument Panel Cluster (IPC): Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: This step is only necessary when installing a new component.
Upload the instrument cluster configuration information using the Programmable Modules Installation Routine.
General Equipment
: Ford approved diagnostic tool
-
NOTE: This step is only necessary when installing a new component.
Record the odometer value from the original instrument cluster. If the odometer value cannot be obtained from the instrument cluster (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.

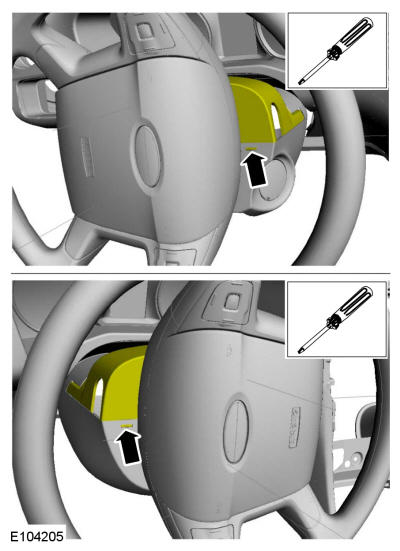

- Use the General Equipment: Flat Headed Screw Driver
