Instrument Panel Cluster (IPC) - Overview: Overview
The IPC uses gauges, warning and informational indicators, RTT indicators and chimes to alert the driver of vehicle conditions and system operation. The message center provides menu selections to configure various vehicle features. For a complete list and description of the features the message center controls, refer to the Owner's Literature.
The IPC provides a single display screen that contains the message center and RTT indicators.
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
RTT indicators illuminate in the message center and replace traditional informational or warning indicators, using the same iconic representation.
IPC

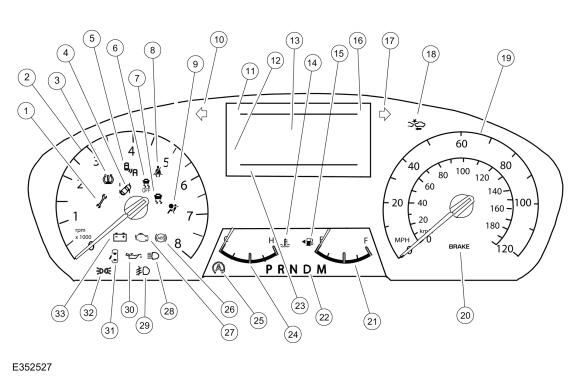

| Item | Description |
|---|---|
| 1 | Powertrain malfunction (wrench) indicator |
| 2 | Tachometer |
| 3 | TPMS warning indicator |
| 4 | Lane keeping assist indicator |
| 5 | BLIS/ CTA indicator |
| 6 | Traction control disabled indicator (sliding car OFF icon) |
| 7 | Stability-traction control indicator (sliding car icon) |
| 8 | Seatbelt indicator |
| 9 | Airbag warning indicator |
| 10 | LH turn indicator |
| 11 | Odometer display Menu selection |
| 12 | Main menu display |
| 13 | Message center display |
| 14 | Temperature indicator |
| 15 | Low fuel indicator |
| 16 | Outside air temperature display |
| 17 | RH turn indicator |
| 18 | Forward collision warning indicator |
| 19 | Speedometer |
| 20 | Brake warning indicator |
| 21 | Fuel gauge |
| 22 | PRNDL display |
| 23 | RTT display area Cruise control/adaptive cruise control Auto high beam Drive mode (Normal, Eco, Slippery, Mud/Ruts) Engine oil change required Lane keeping assist Speed limiter Tow haul |
| 24 | Engine temperature gauge |
| 25 | Auto stop/start indicator |
| 26 | ABS indicator |
| 27 | MIL |
| 28 | High beam indicator |
| 29 | Front fog lamps indicator |
| 30 | Low engine oil pressure warning indicator |
| 31 | Door ajar indicator |
| 32 | Lights on indicator |
| 33 | Charging system indicator |
