Cooling Fan Shroud: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

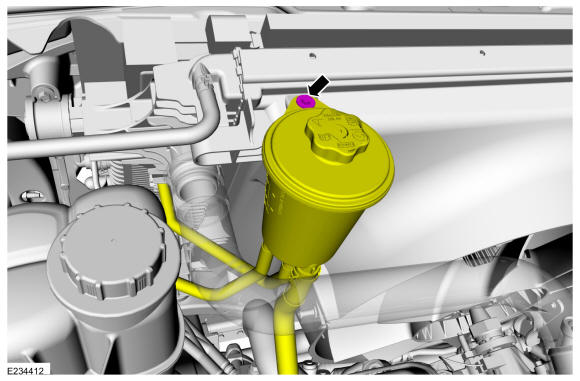

- Remove the bolt and position the power steering fluid reservoir aside.
Torque: 62 lb.in (7 Nm)
- Detach the wiring harness retainers from the cooling fan shroud.

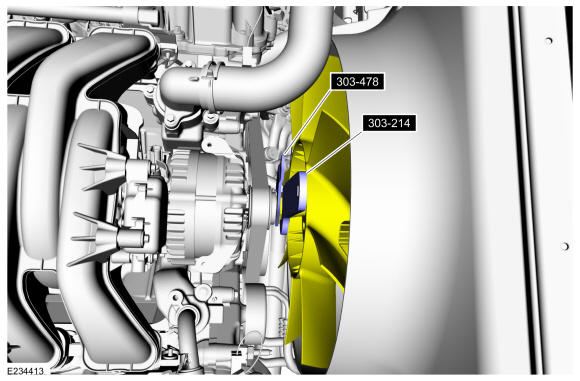

- Using the special tools, remove the cooling fan, the cooling fan clutch and position aside. Use Special Service Tool: 303-214 (T83T-6312-B) Wrench, Fan Clutch Nut., 205-036 (T70P-4067-A) Wrench.
Torque: 98 lb.ft (133 Nm)
-
NOTE: Components not shown for clarity.

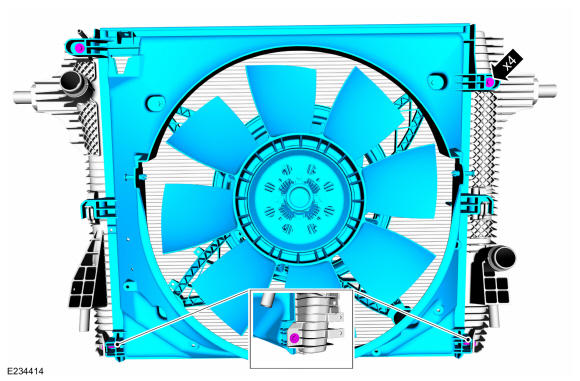

Remove the bolts, the cooling fan, the cooling fan clutch, and the cooling fan shroud.
Torque: 62 lb.in (7 Nm)
