Power Windows

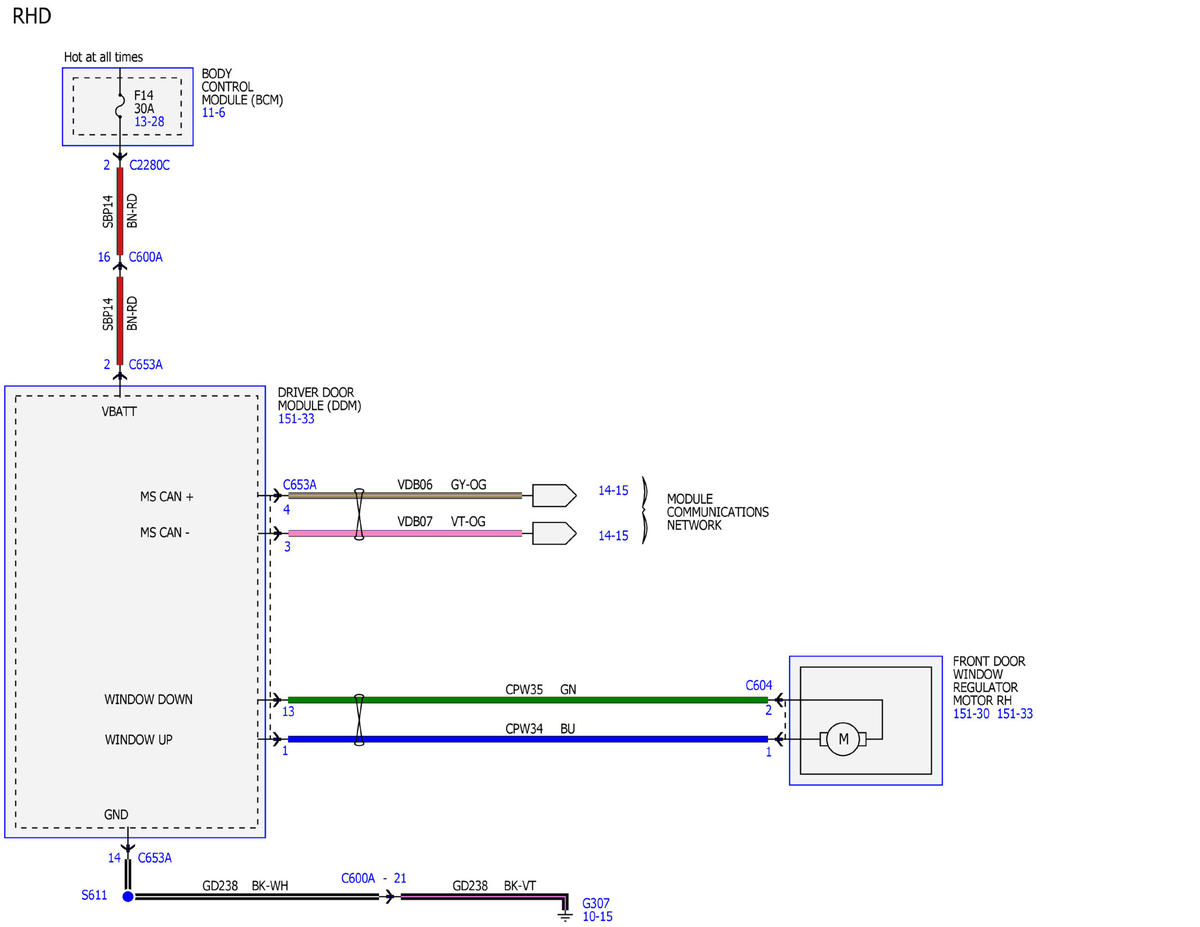

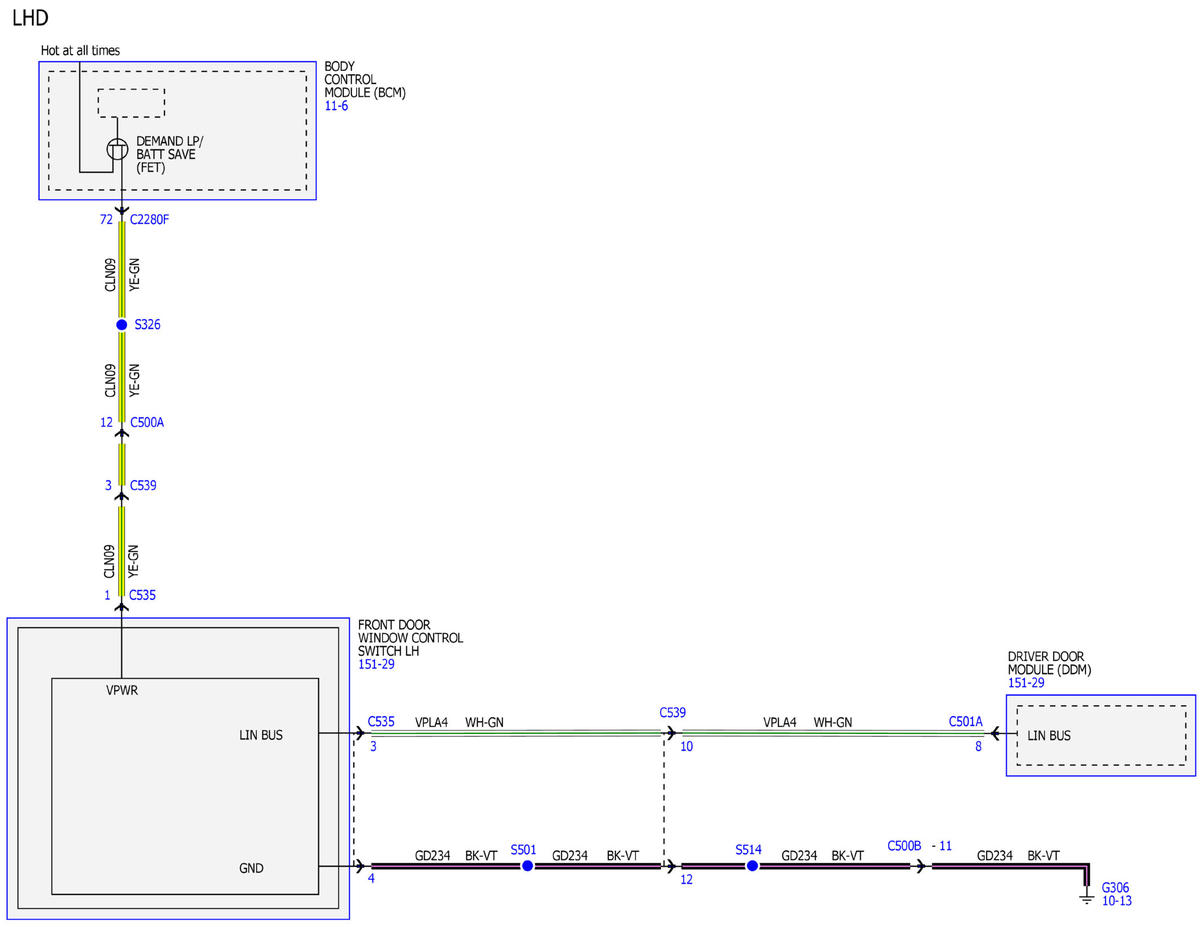

Fig 1: Power Windows Wiring Diagrams (1 Of 16)

GFDWR145405

Courtesy of FORD MOTOR COMPANY

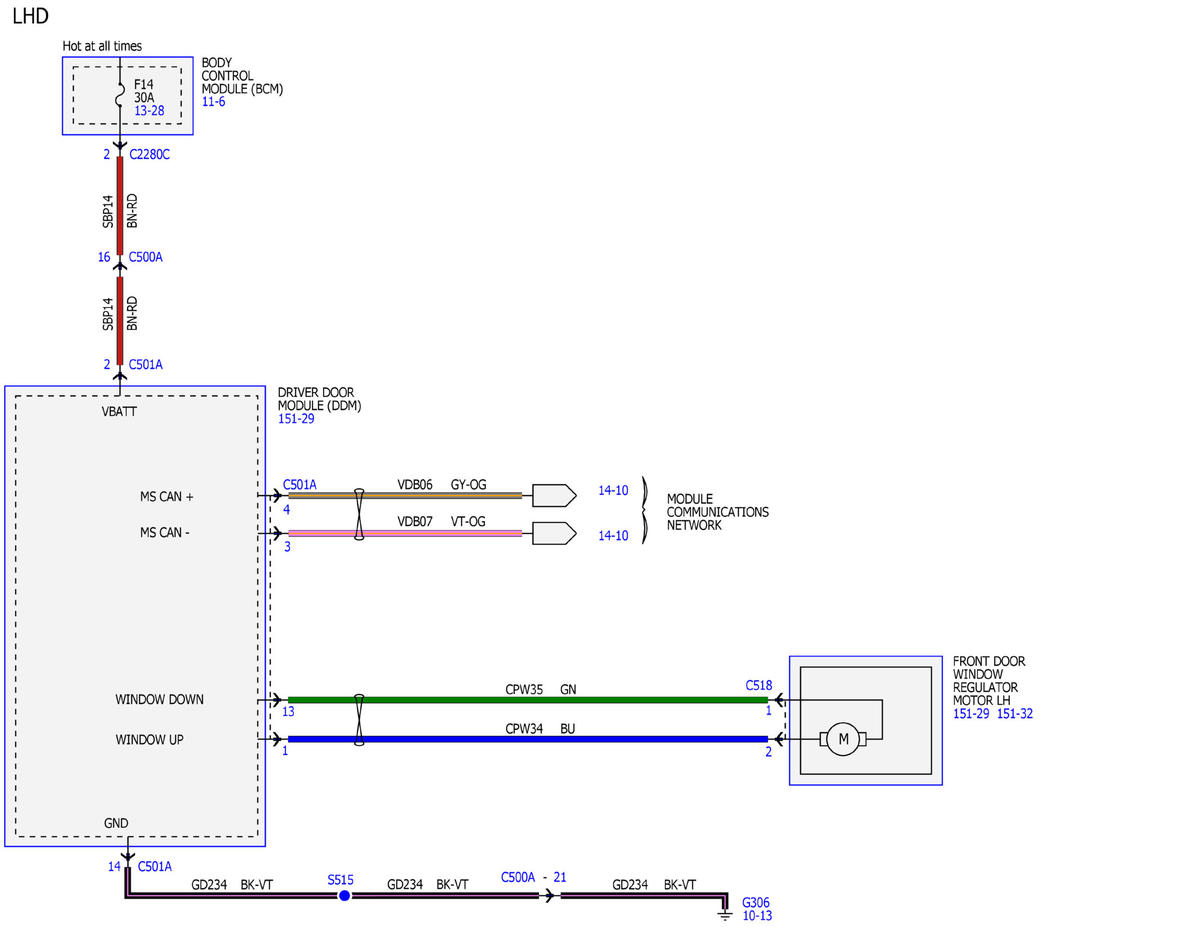

Fig 2: Power Windows Wiring Diagrams (2 Of 16)

GFDWR145413

Courtesy of FORD MOTOR COMPANY

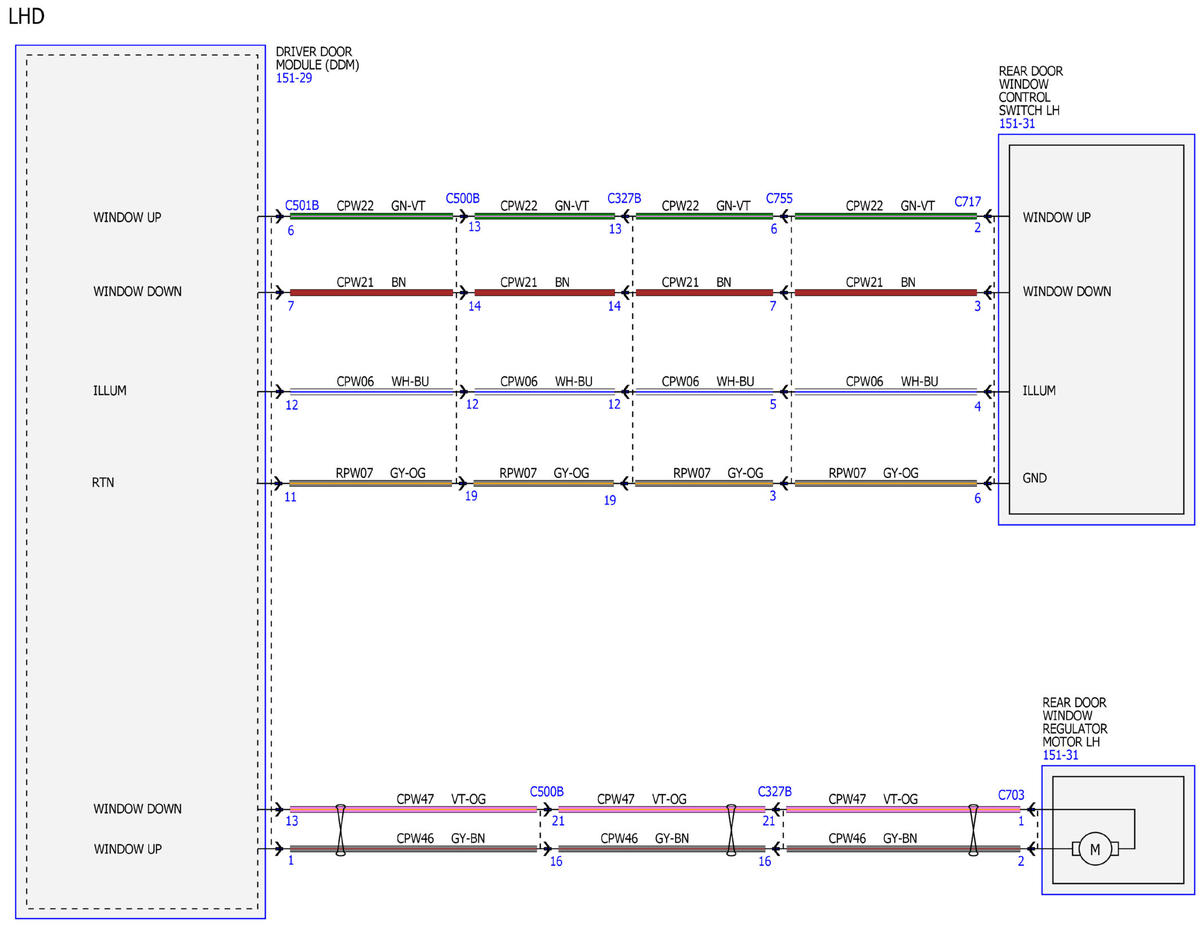

Fig 3: Power Windows Wiring Diagrams (3 Of 16)

GFDWR145414

Courtesy of FORD MOTOR COMPANY

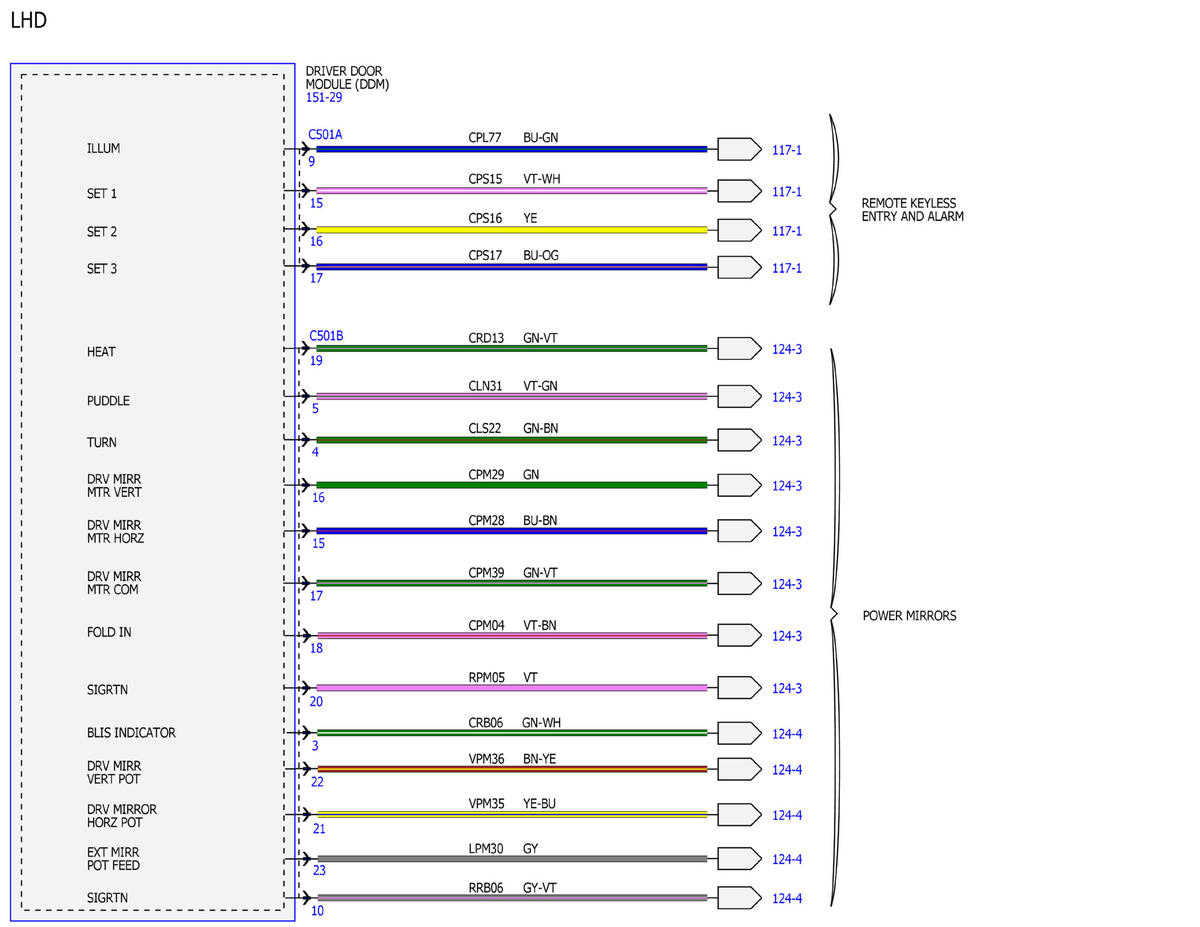

Fig 4: Power Windows Wiring Diagrams (4 Of 16)

GFDWR145415

Courtesy of FORD MOTOR COMPANY

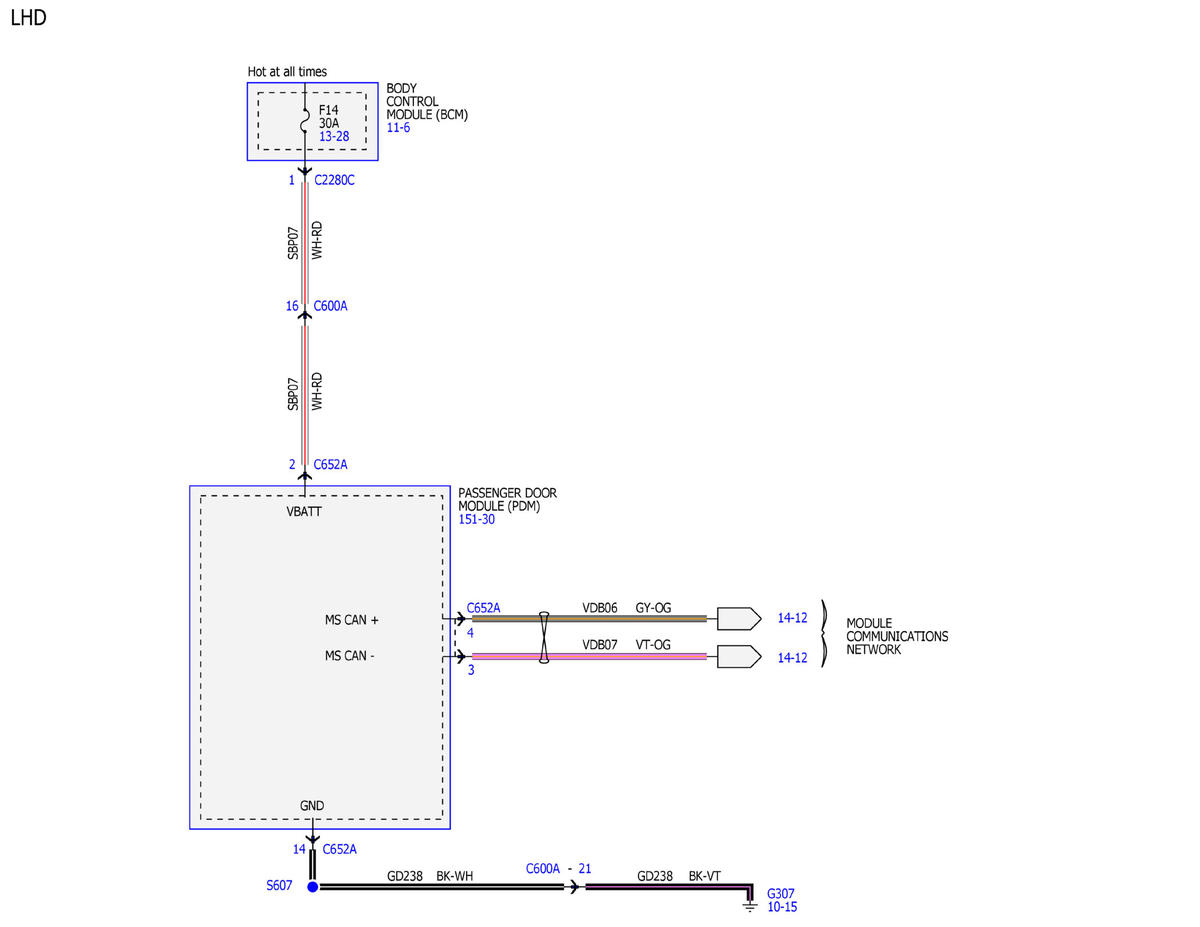

Fig 5: Power Windows Wiring Diagrams (5 Of 16)

GFDWR145416

Courtesy of FORD MOTOR COMPANY

Fig 6: Power Windows Wiring Diagrams (6 Of 16)

GFDWR145417

Courtesy of FORD MOTOR COMPANY

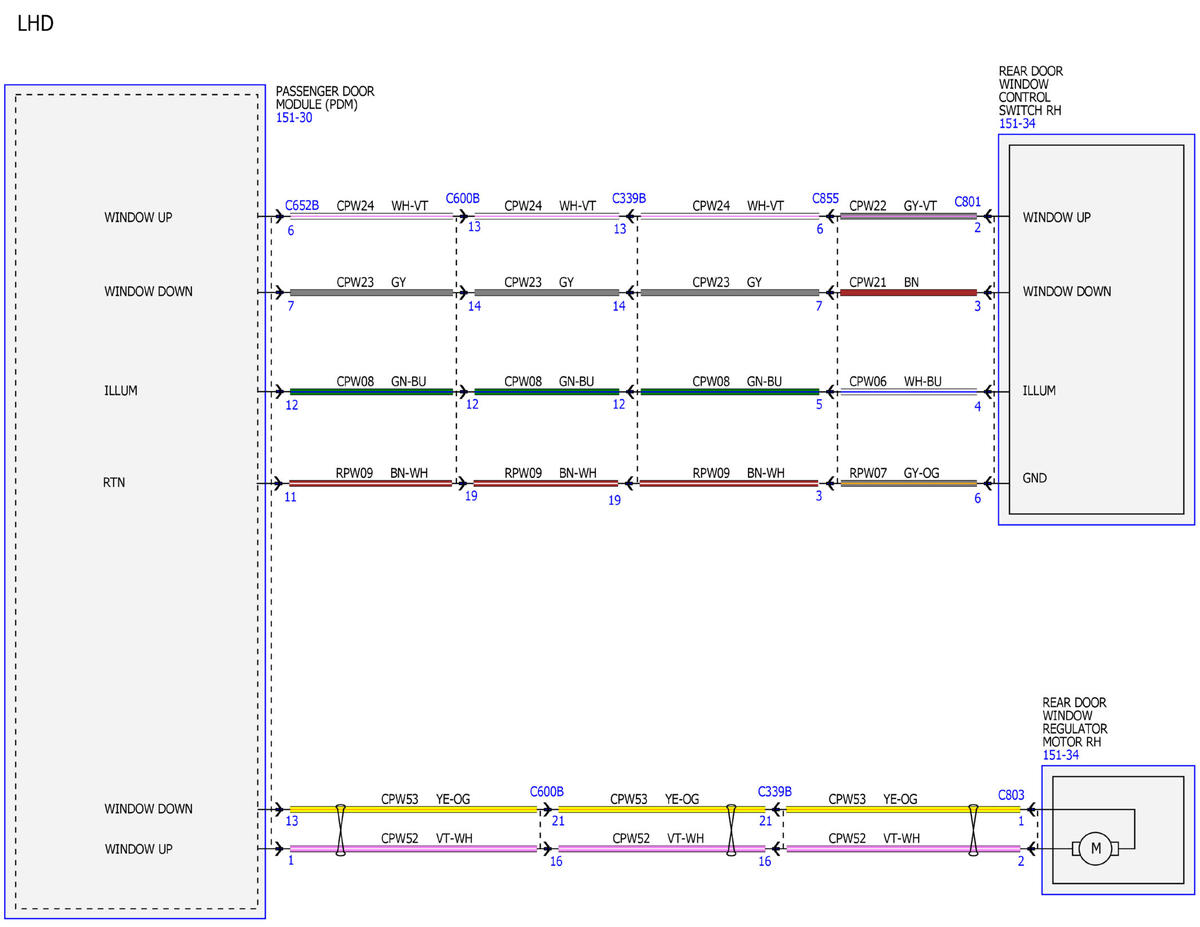

Fig 7: Power Windows Wiring Diagrams (7 Of 16)

GFDWR145418

Courtesy of FORD MOTOR COMPANY

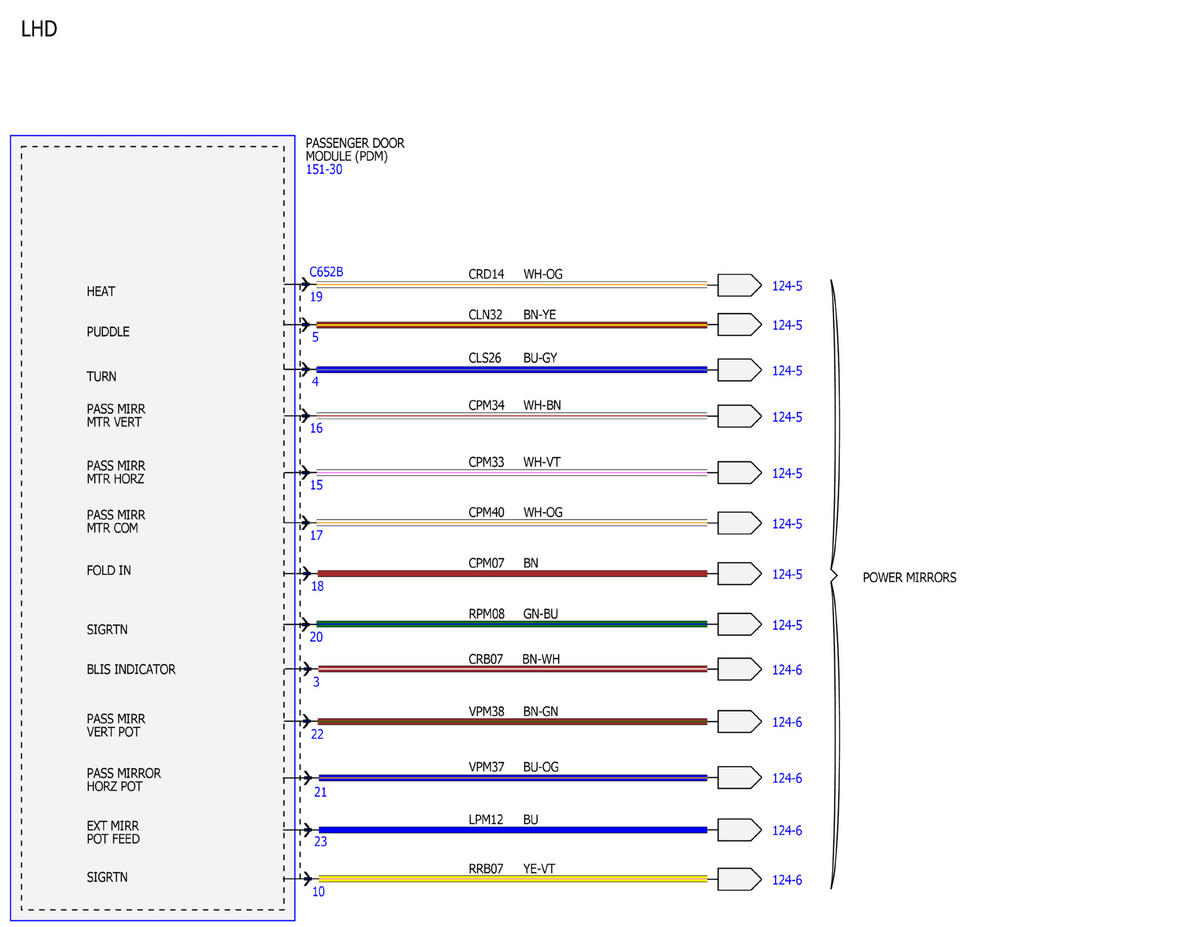

Fig 8: Power Windows Wiring Diagrams (8 Of 16)

GFDWR145419

Courtesy of FORD MOTOR COMPANY

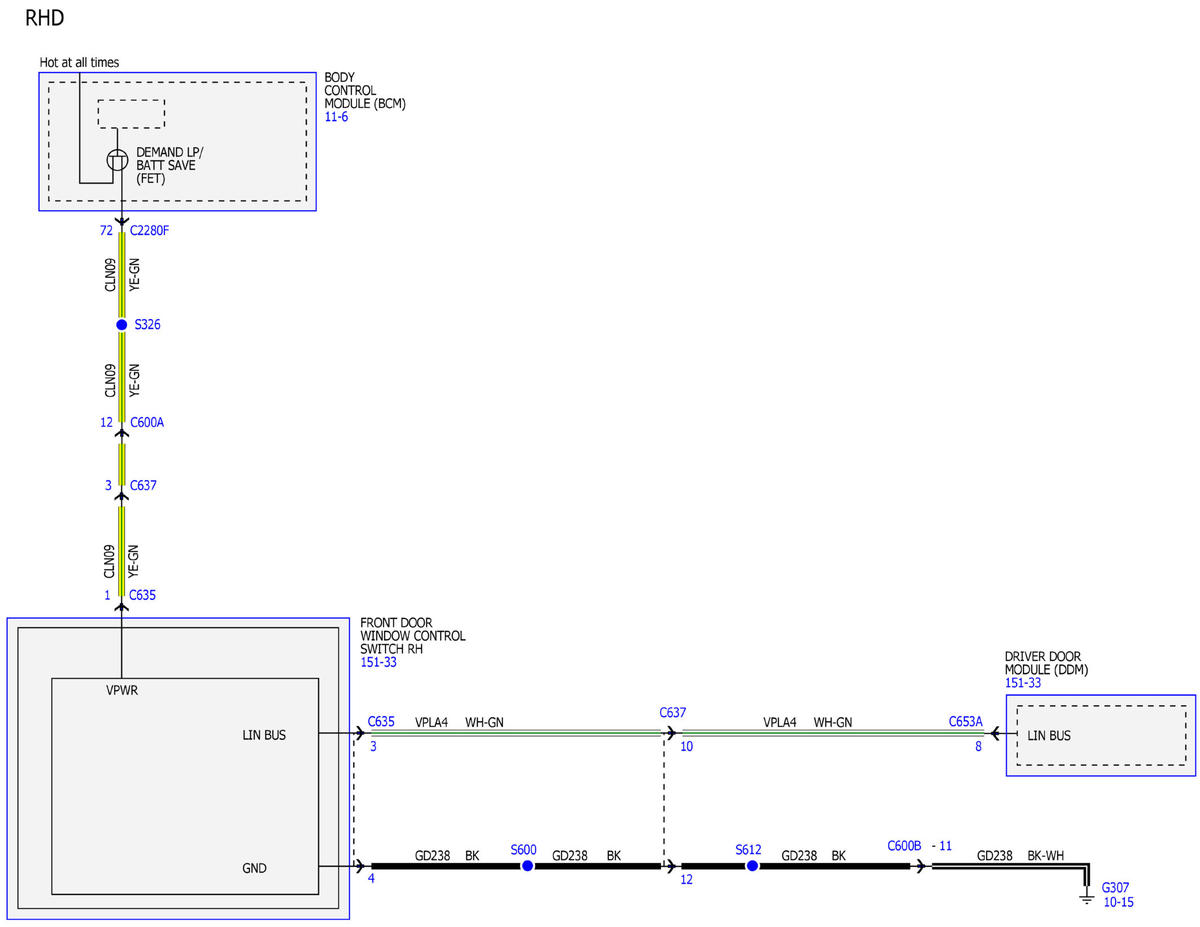

Fig 9: Power Windows Wiring Diagrams (9 Of 16)

GFDWR145420

Courtesy of FORD MOTOR COMPANY

Fig 10: Power Windows Wiring Diagrams (10 Of 16)

GFDWR145406

Courtesy of FORD MOTOR COMPANY

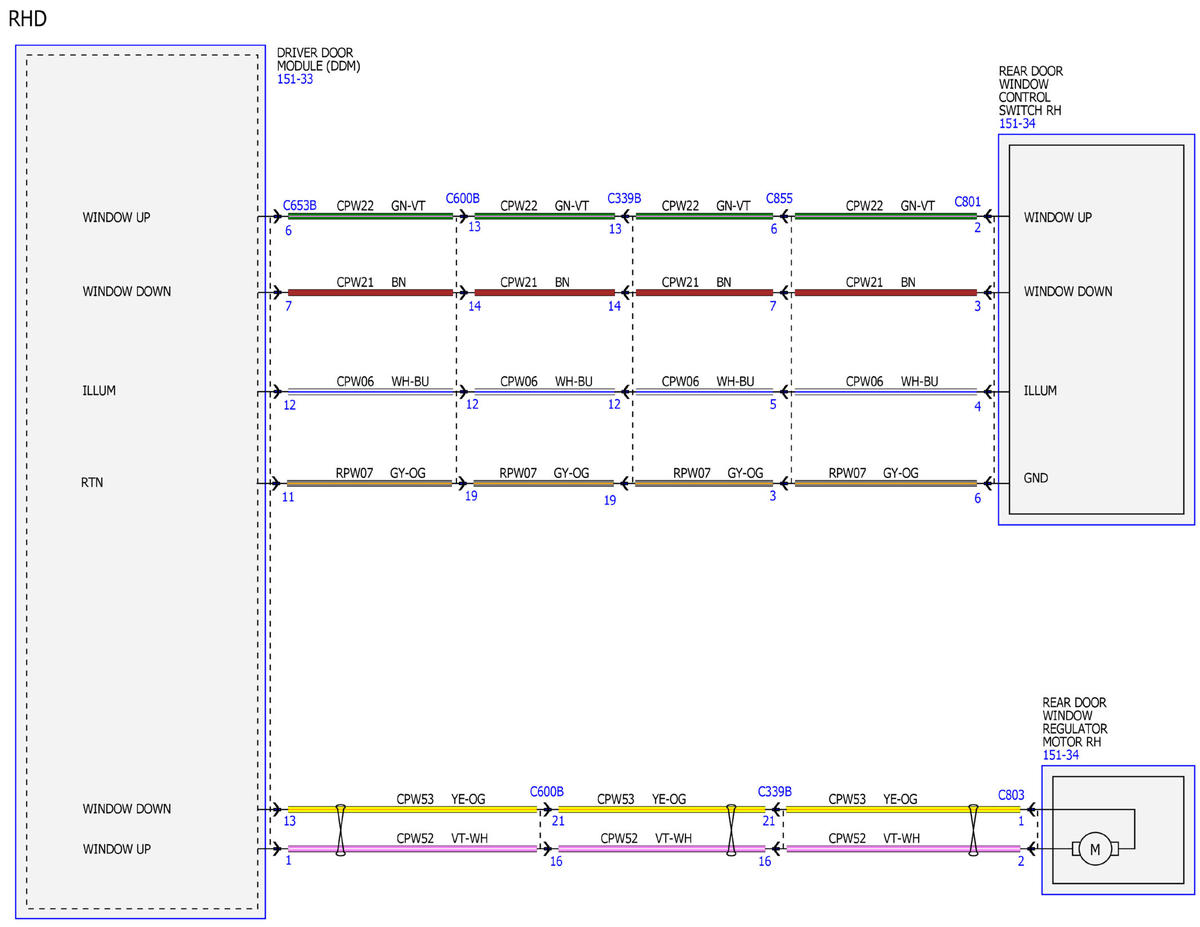

Fig 11: Power Windows Wiring Diagrams (11 Of 16)

GFDWR145407

Courtesy of FORD MOTOR COMPANY

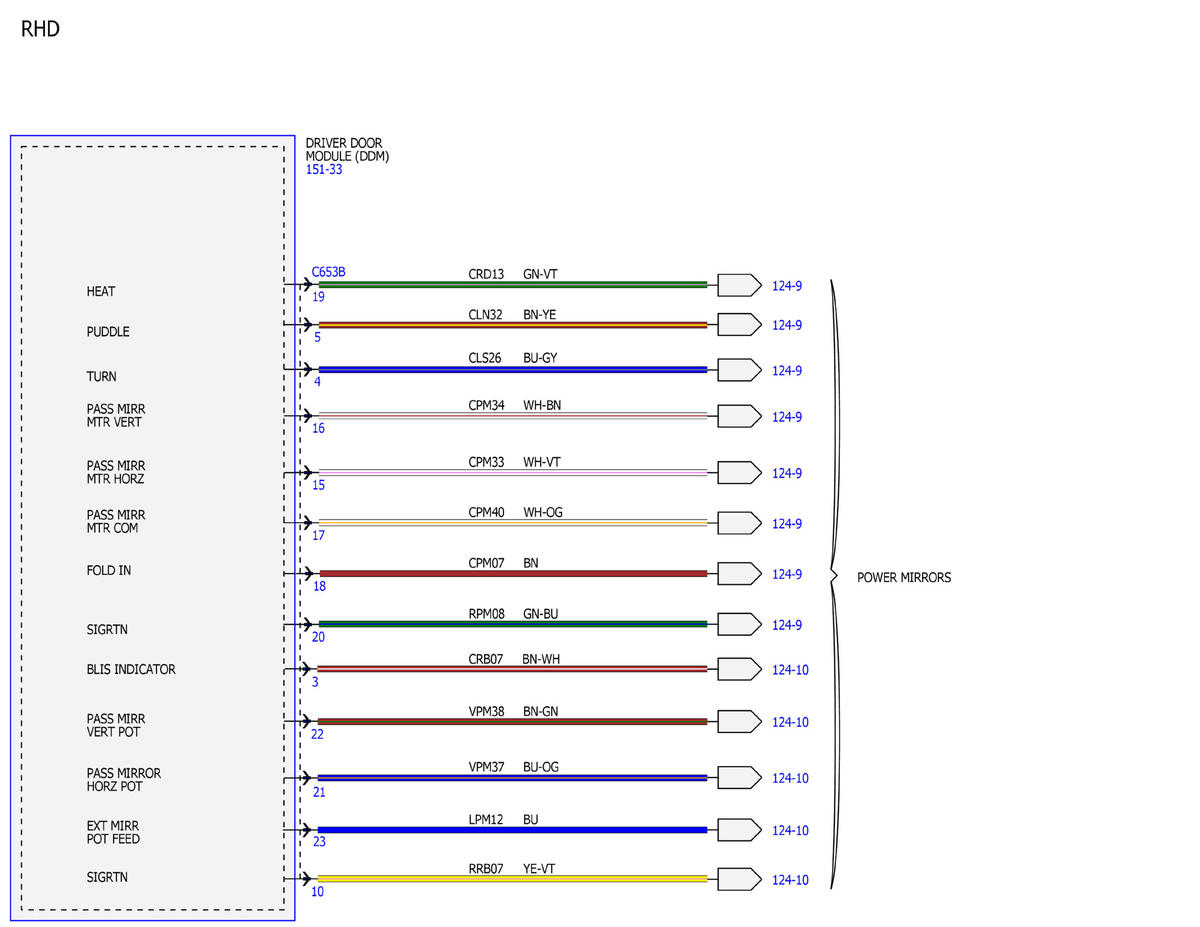

Fig 12: Power Windows Wiring Diagrams (12 Of 16)

GFDWR145408

Courtesy of FORD MOTOR COMPANY

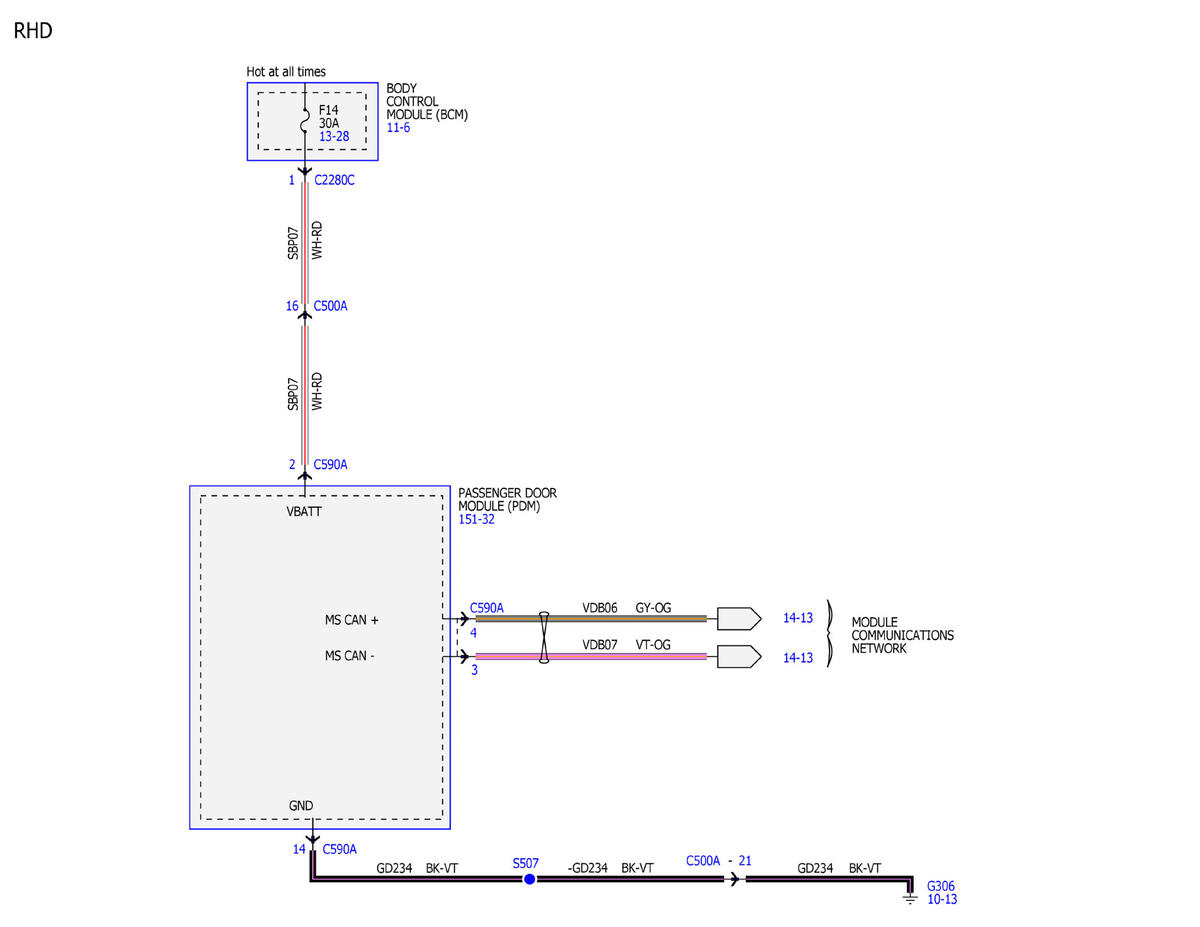

Fig 13: Power Windows Wiring Diagrams (13 Of 16)

GFDWR145409

Courtesy of FORD MOTOR COMPANY

Fig 14: Power Windows Wiring Diagrams (14 Of 16)

GFDWR145410

Courtesy of FORD MOTOR COMPANY

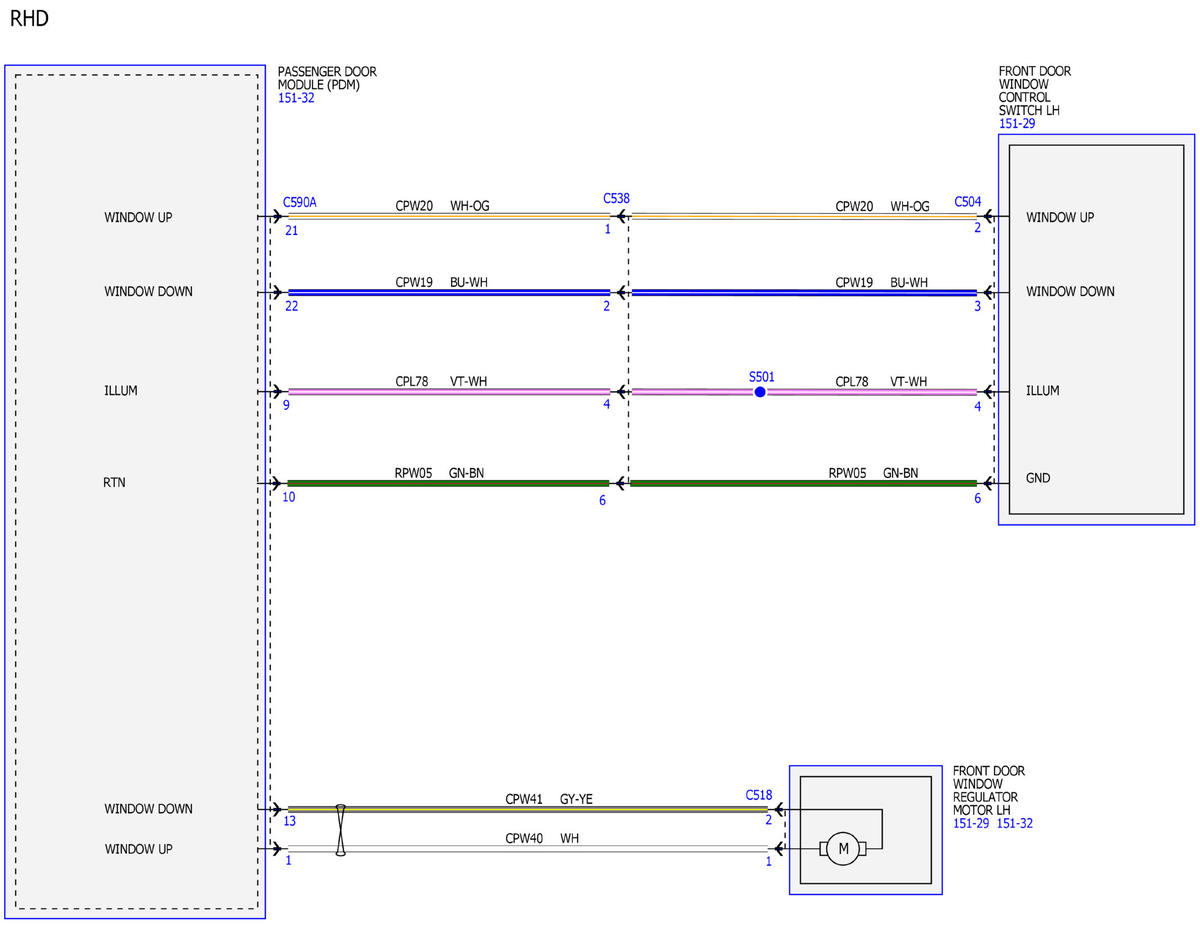

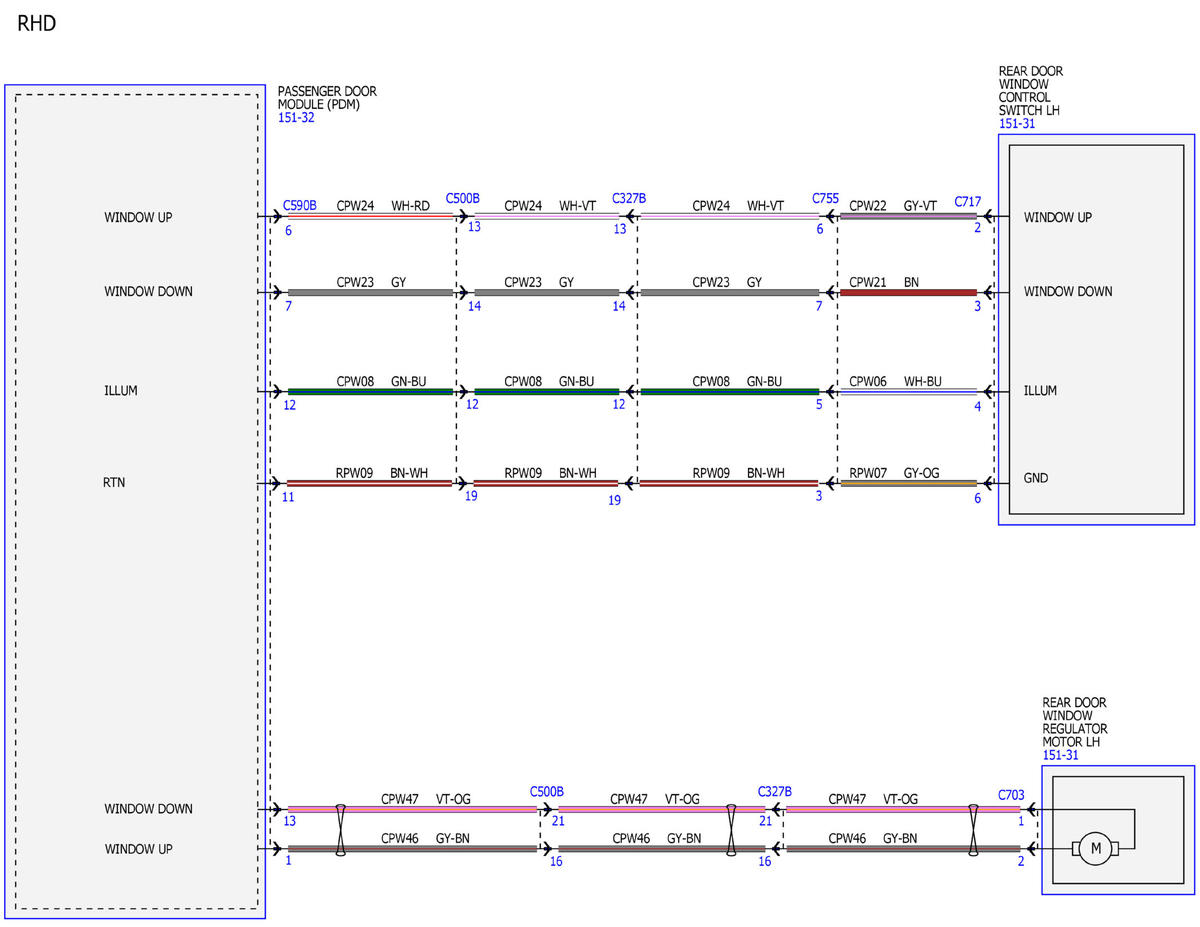

Fig 15: Power Windows Wiring Diagrams (15 Of 16)

GFDWR145411

Courtesy of FORD MOTOR COMPANY

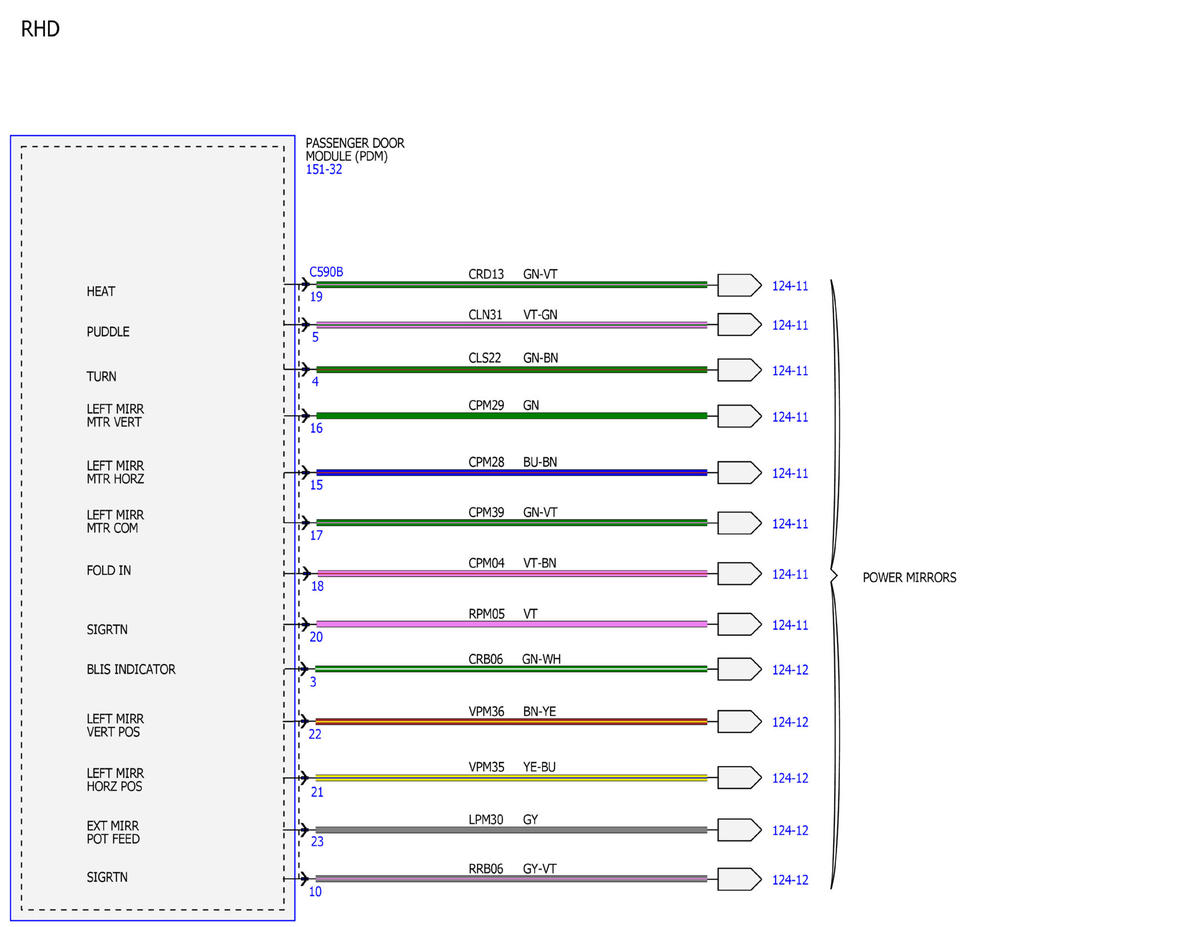

Fig 16: Power Windows Wiring Diagrams (16 Of 16)

GFDWR145412

Courtesy of FORD MOTOR COMPANY
