Cluster And Panel Illumination

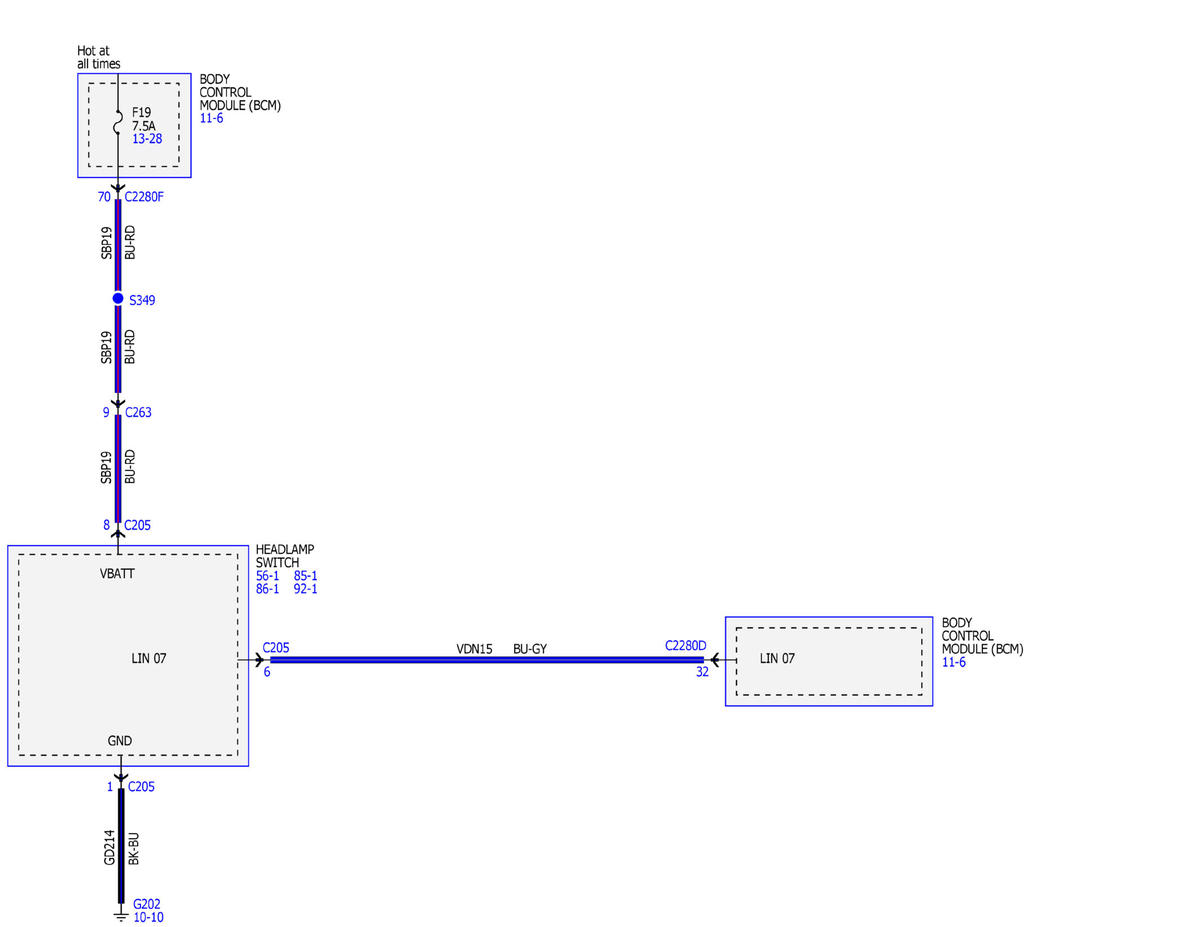

Fig 1: Cluster And Panel Illumination Wiring Diagrams (1 Of 8)
GFDWR145227Courtesy of FORD MOTOR COMPANY

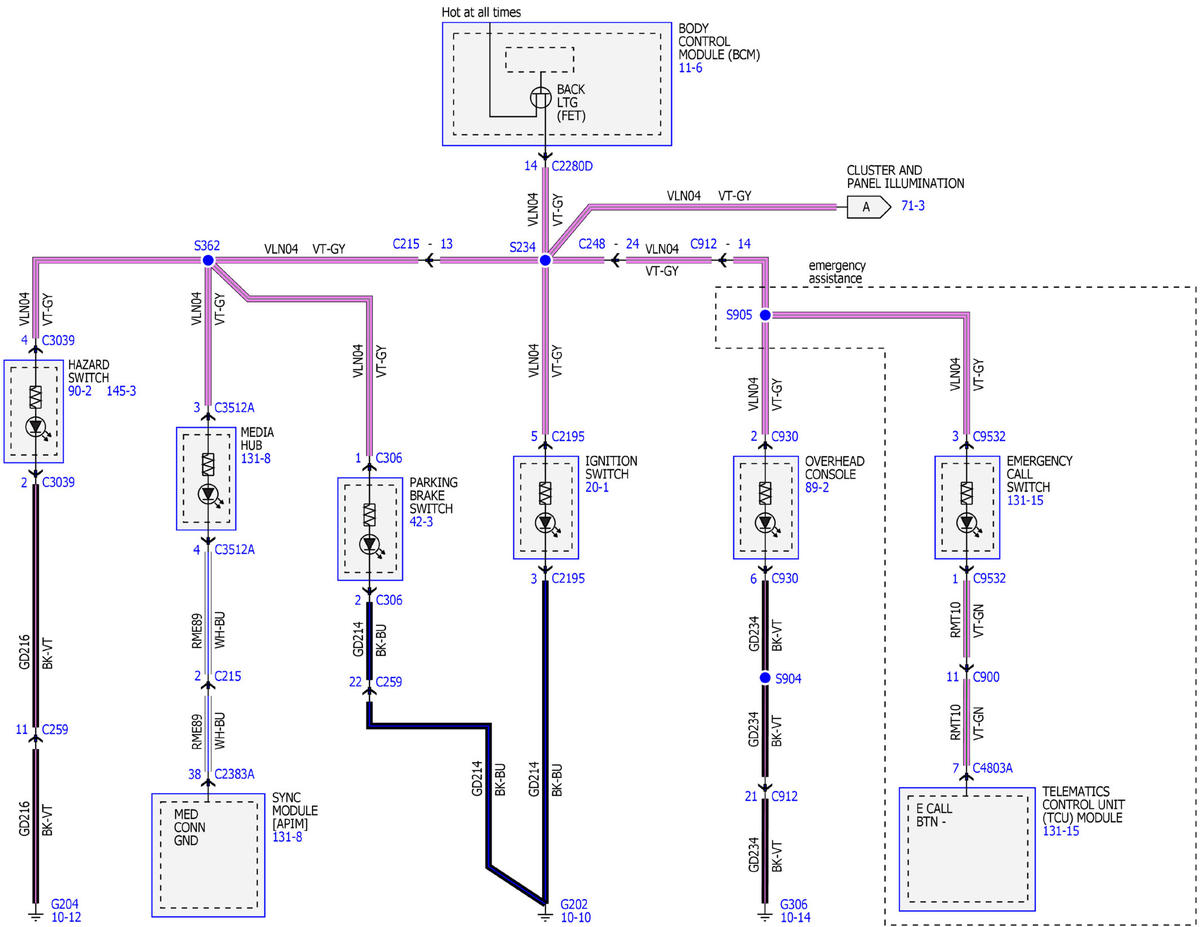

Fig 2: Cluster And Panel Illumination Wiring Diagrams (2 Of 8)
GFDWR145228Courtesy of FORD MOTOR COMPANY

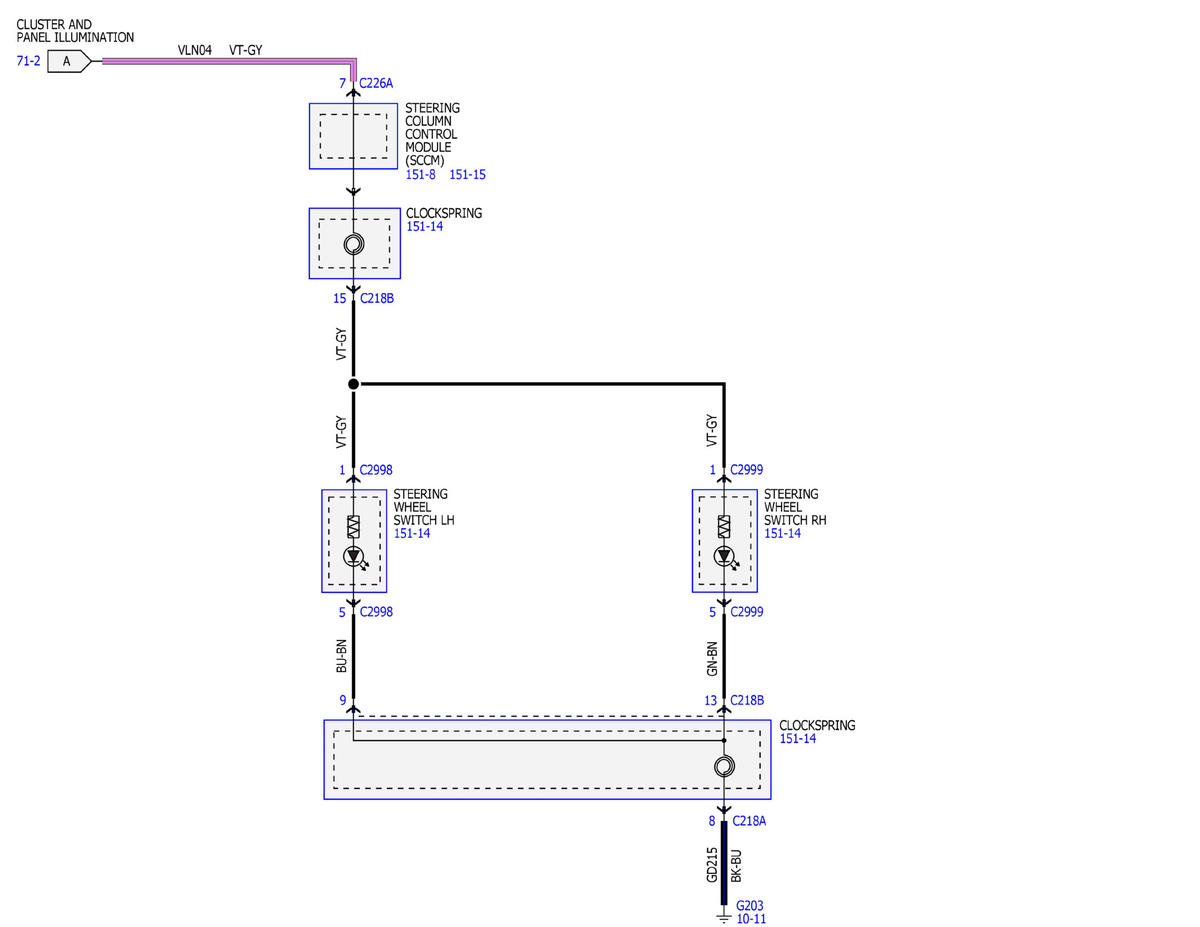

Fig 3: Cluster And Panel Illumination Wiring Diagrams (3 Of 8)
GFDWR145229Courtesy of FORD MOTOR COMPANY

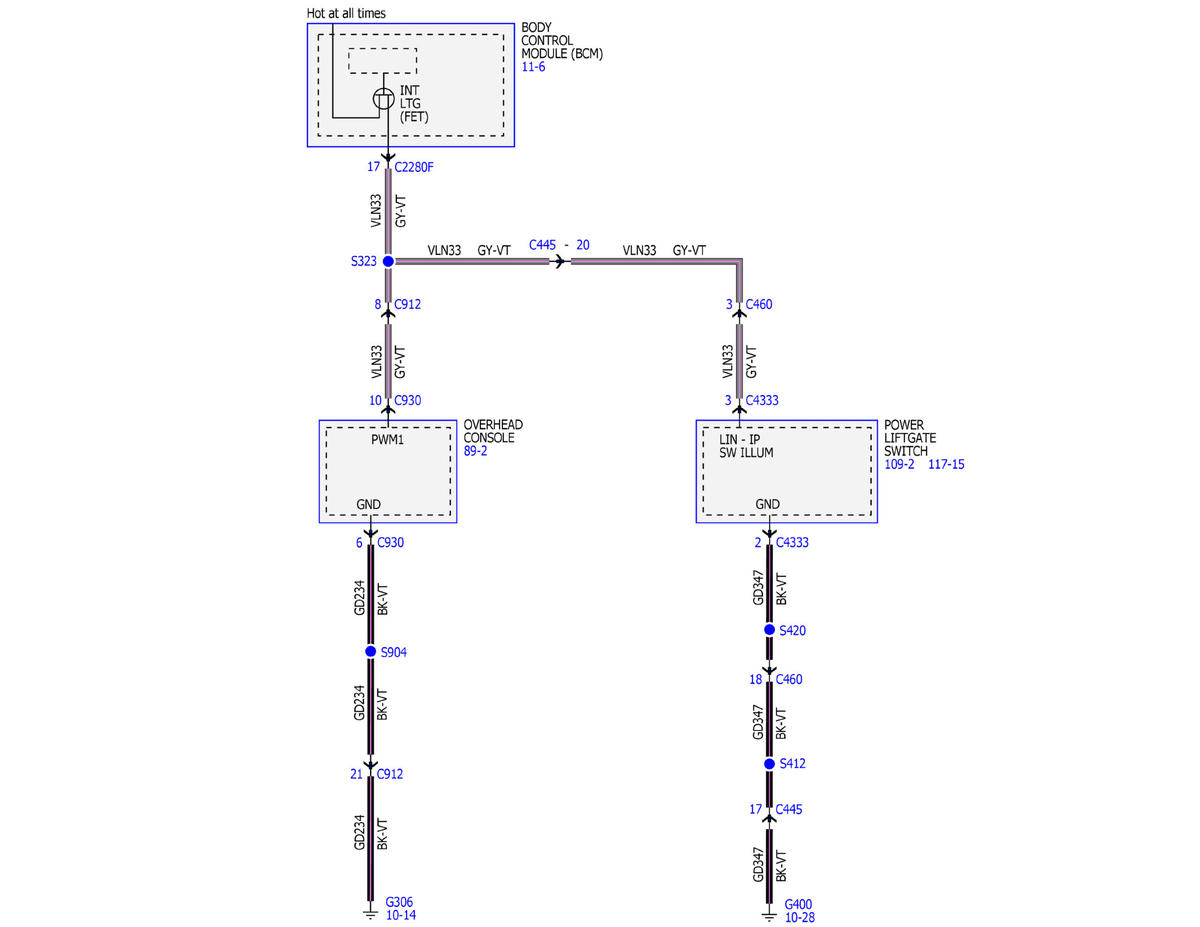

Fig 4: Cluster And Panel Illumination Wiring Diagrams (4 Of 8)
GFDWR145230Courtesy of FORD MOTOR COMPANY

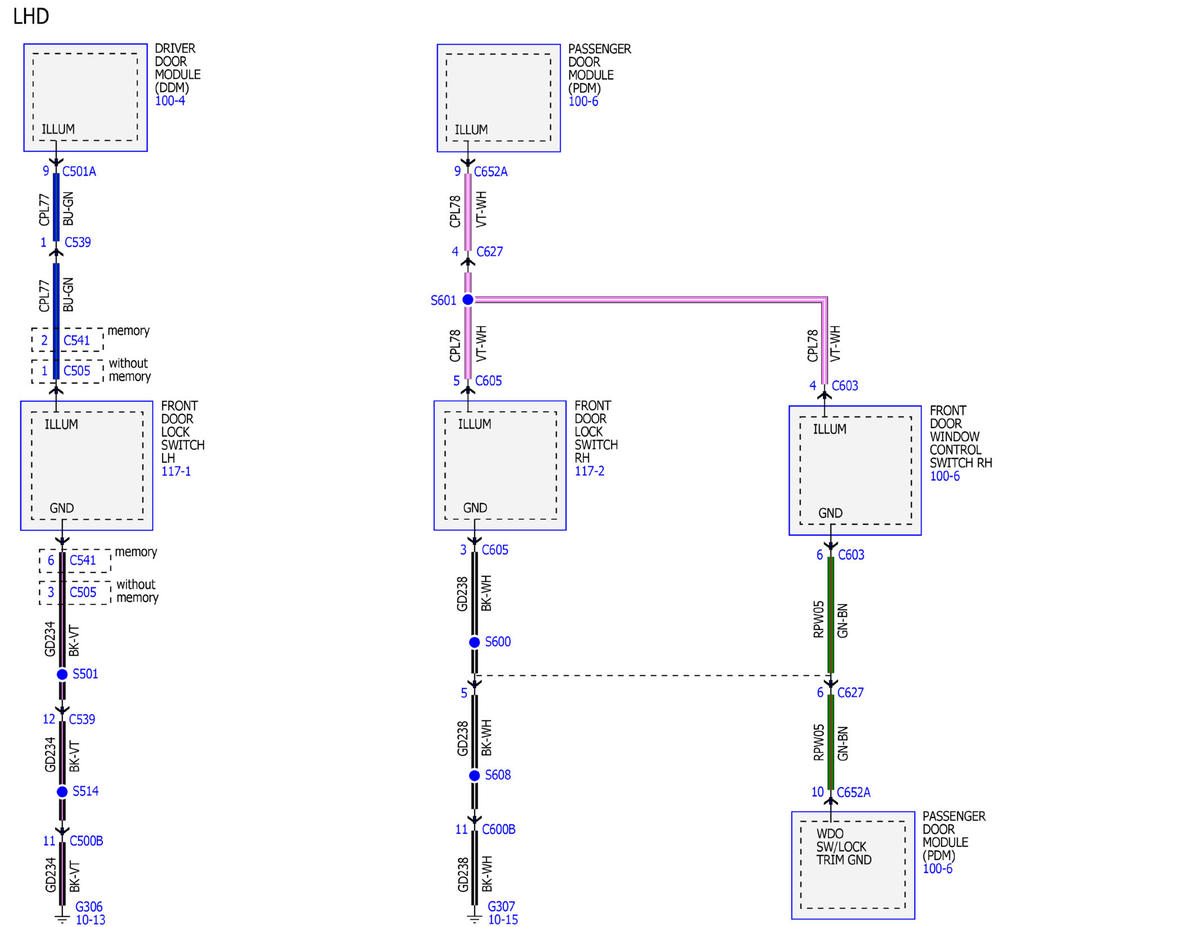

Fig 5: Cluster And Panel Illumination Wiring Diagrams (5 Of 8)
GFDWR145231Courtesy of FORD MOTOR COMPANY

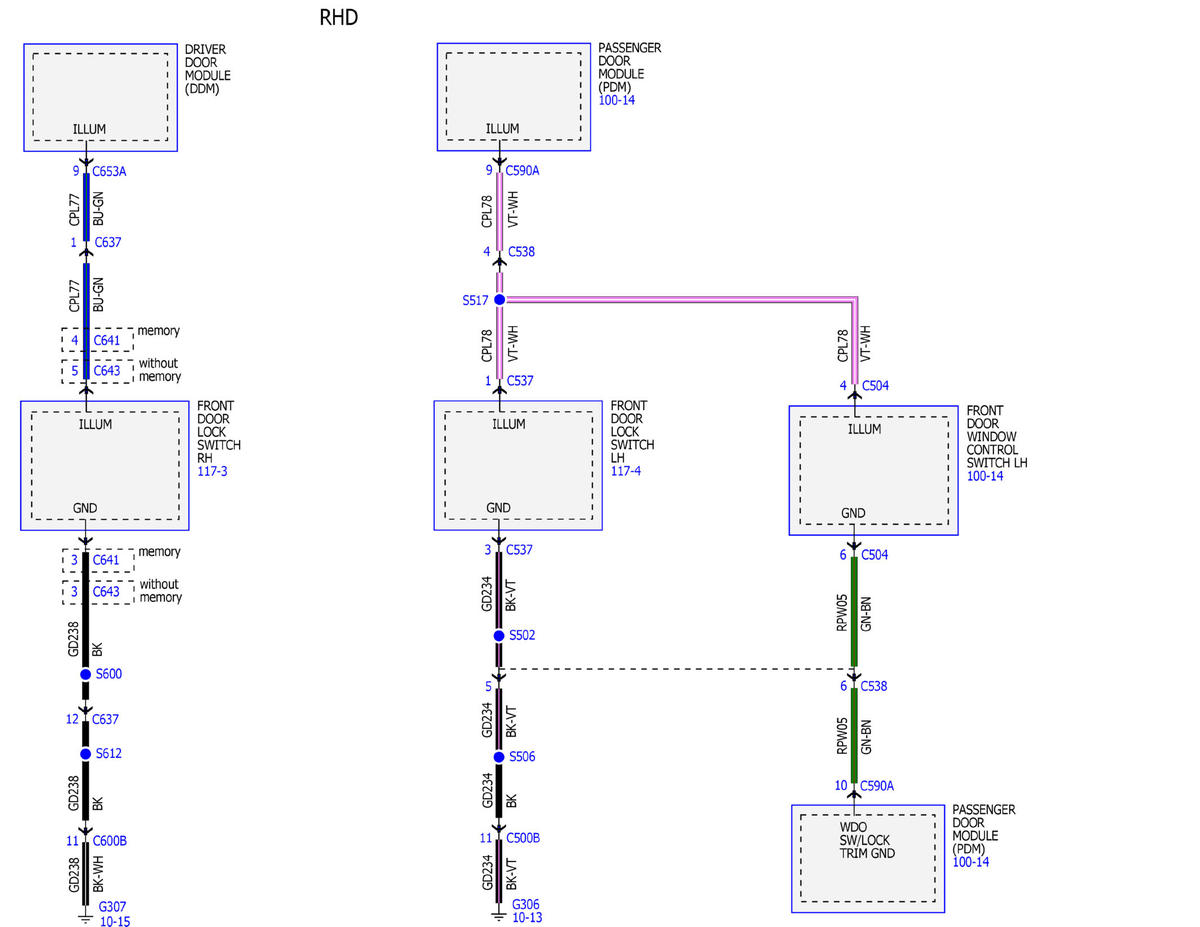

Fig 6: Cluster And Panel Illumination Wiring Diagrams (6 Of 8)
GFDWR145232Courtesy of FORD MOTOR COMPANY

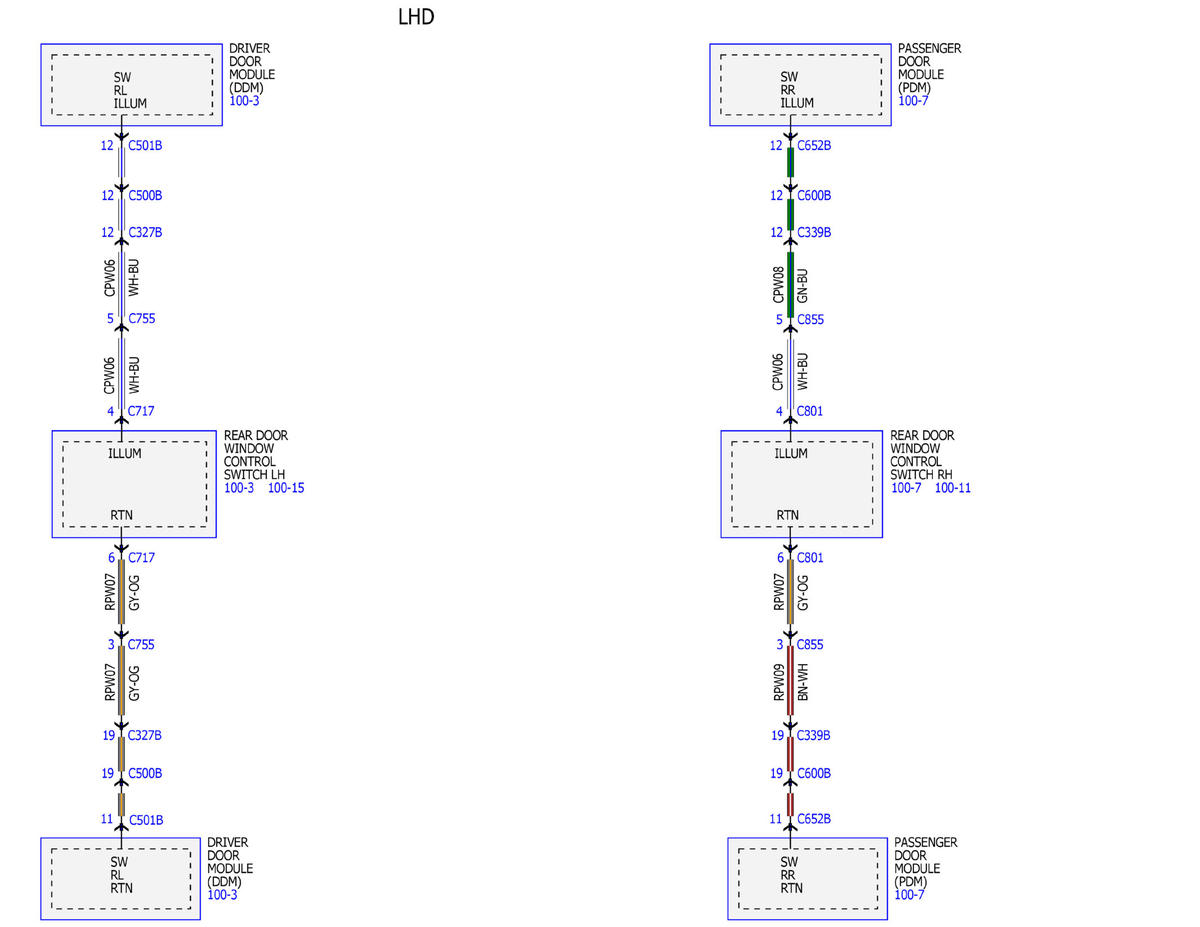

Fig 7: Cluster And Panel Illumination Wiring Diagrams (7Of 8)
GFDWR145233Courtesy of FORD MOTOR COMPANY

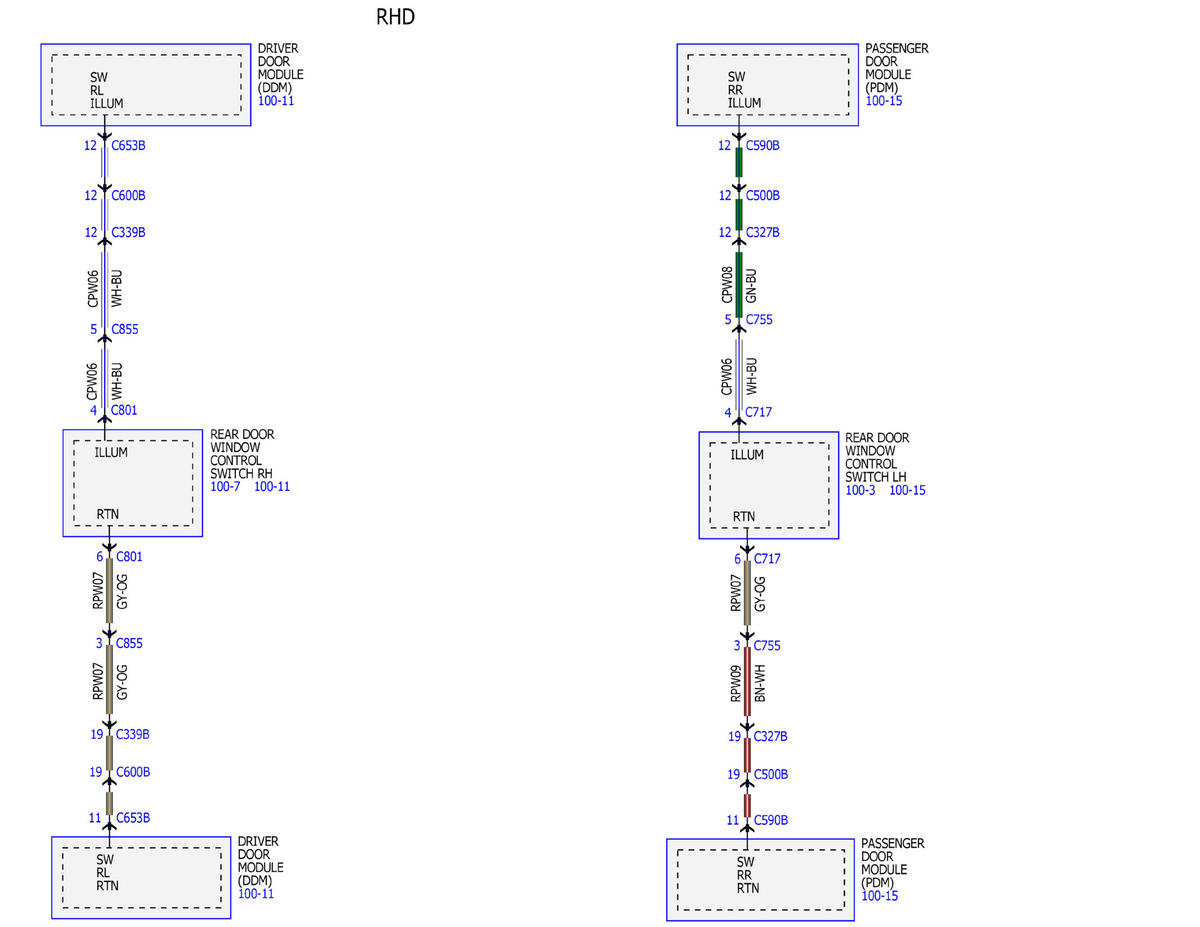

Fig 8: Cluster And Panel Illumination Wiring Diagrams (8 Of 8)
GFDWR145234Courtesy of FORD MOTOR COMPANY
