Audio System/Navigation - Sync

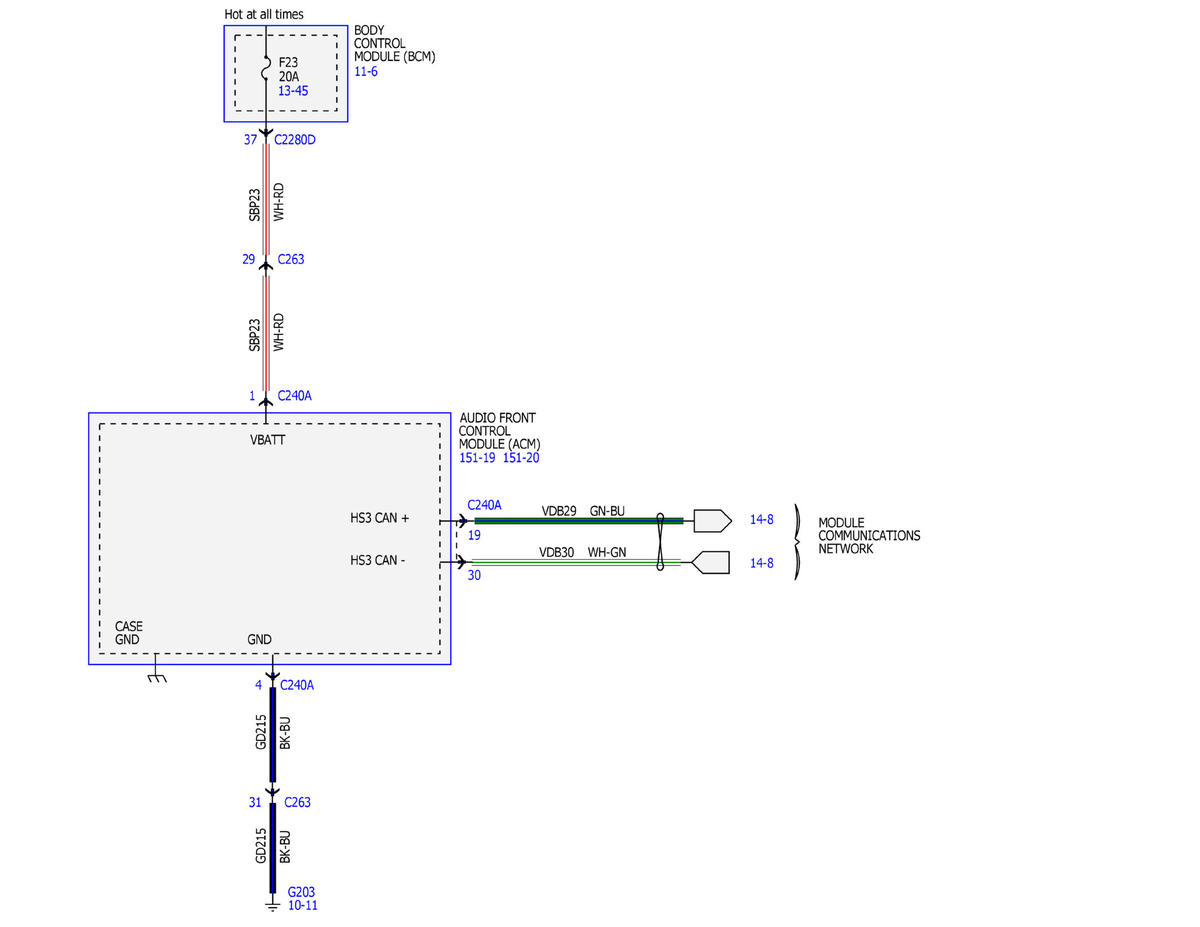

Fig 1: Audio System/Navigation - SYNC (1 Of 18)

GFDWR145182

Courtesy of FORD MOTOR COMPANY

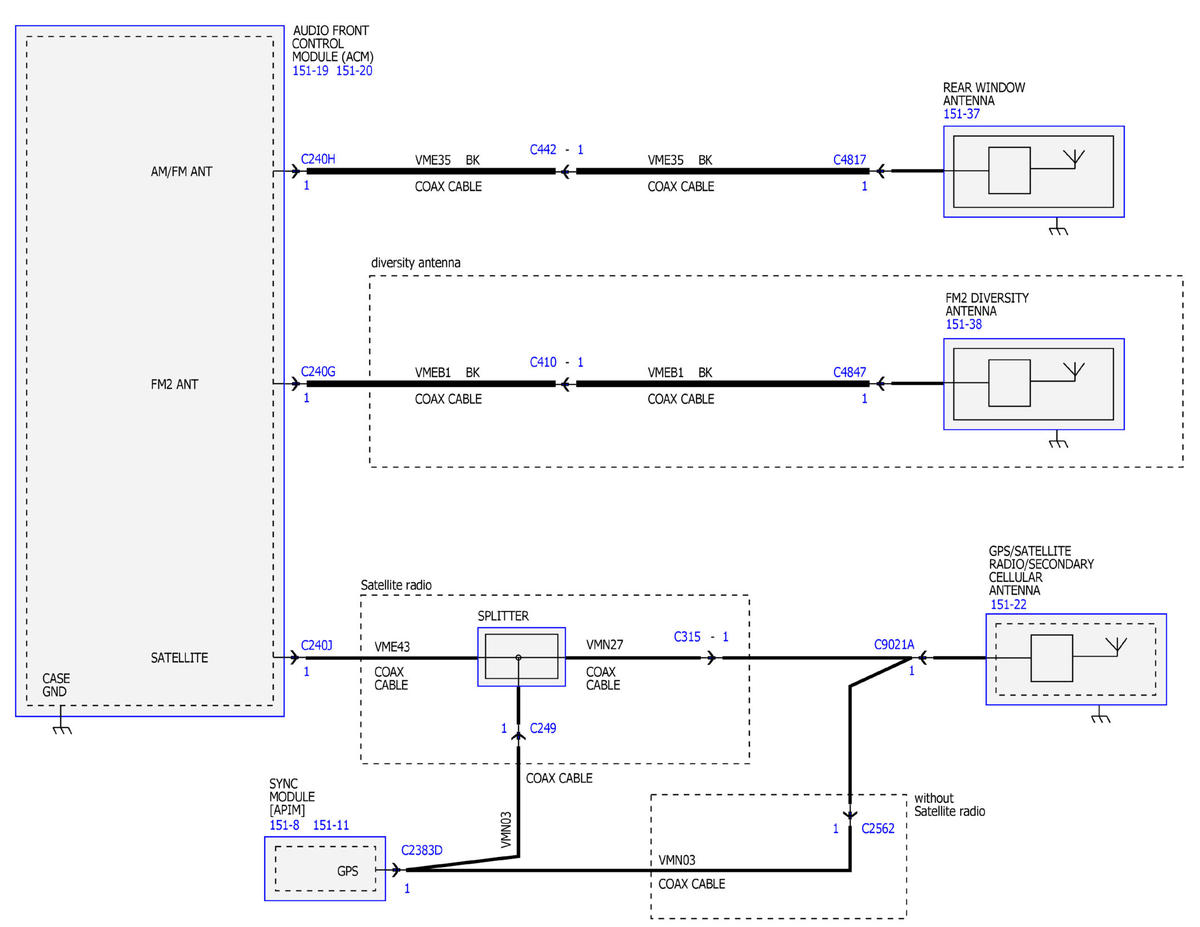

Fig 2: Audio System/Navigation - SYNC (2 Of 18)

GFDWR145192

Courtesy of FORD MOTOR COMPANY

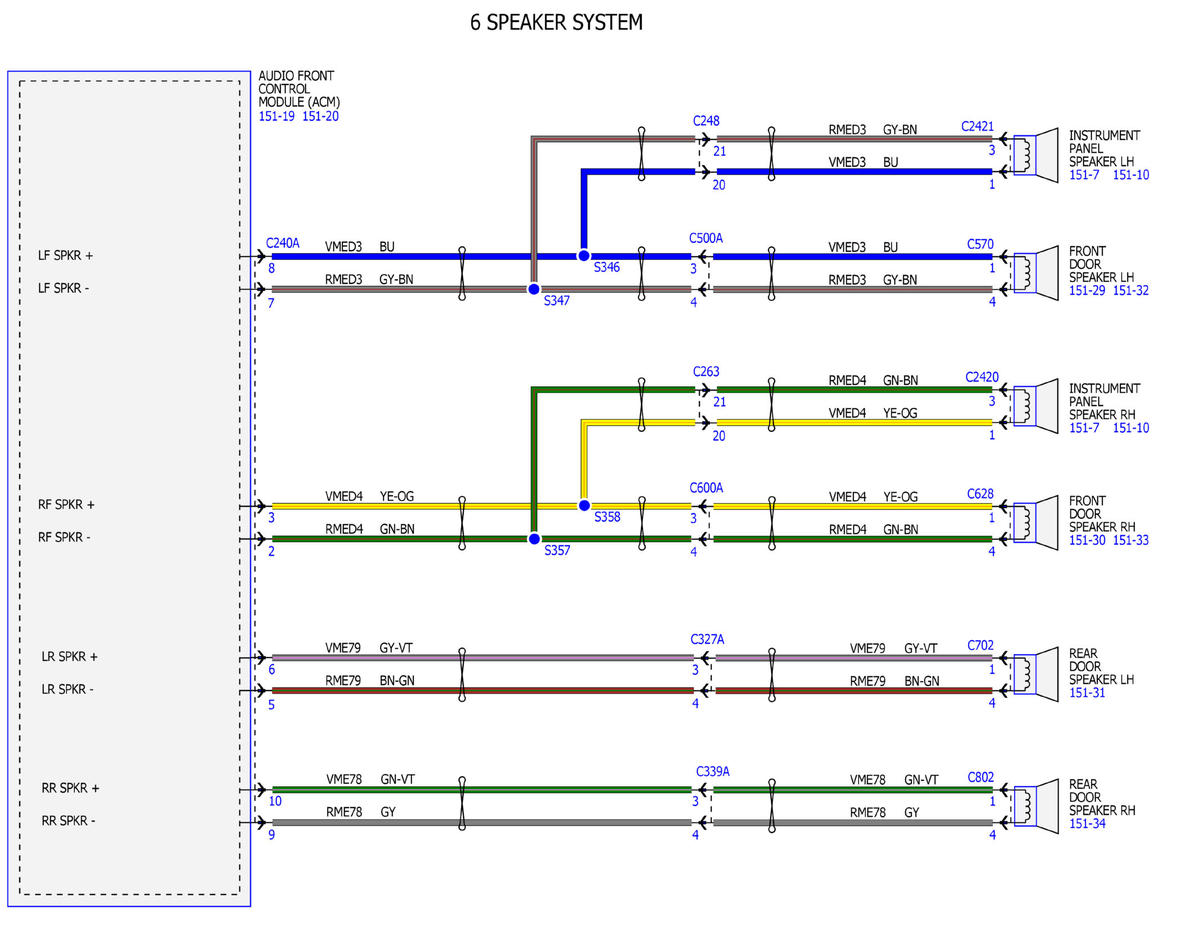

Fig 3: Audio System/Navigation - SYNC (3 Of 18)

GFDWR145193

Courtesy of FORD MOTOR COMPANY

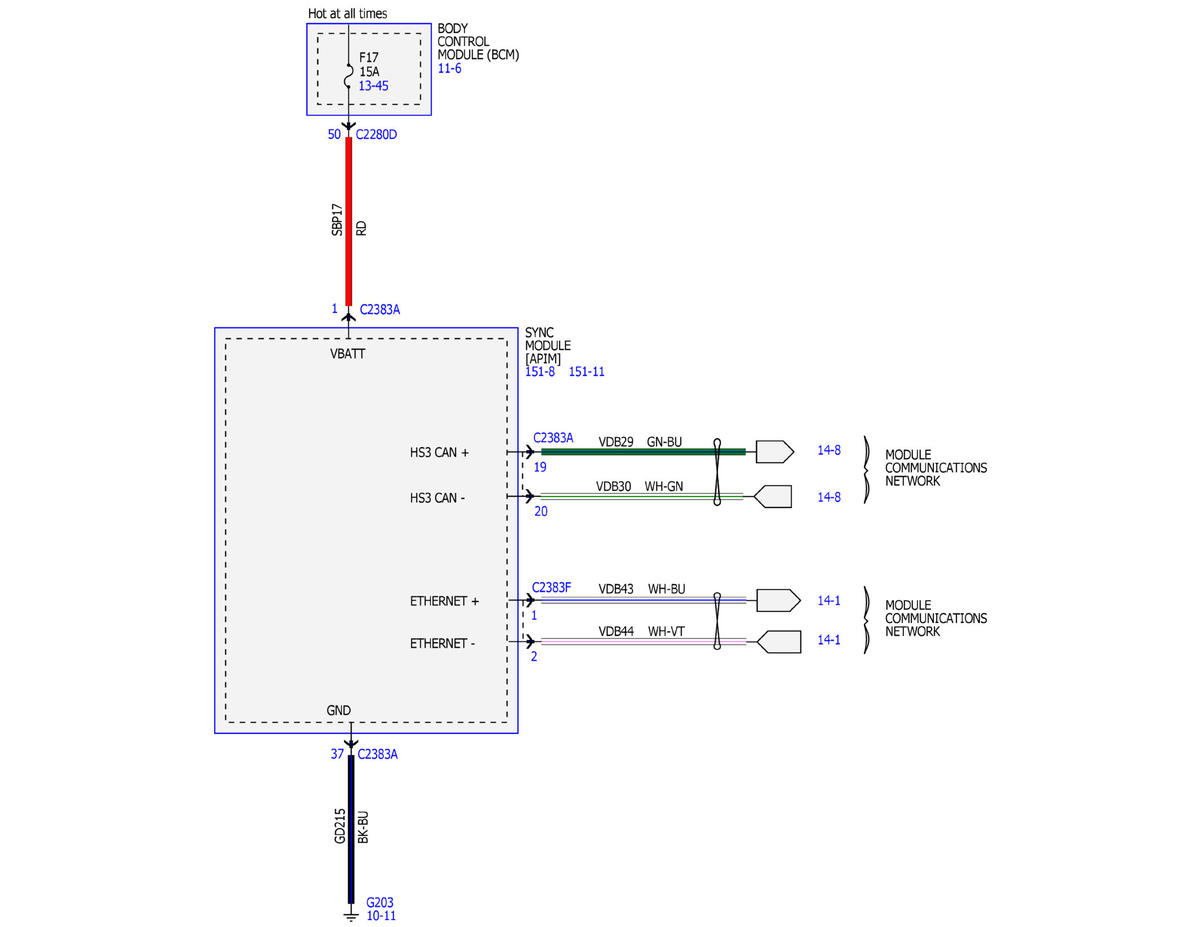

Fig 4: Audio System/Navigation - SYNC (4 Of 18)

GFDWR145194

Courtesy of FORD MOTOR COMPANY

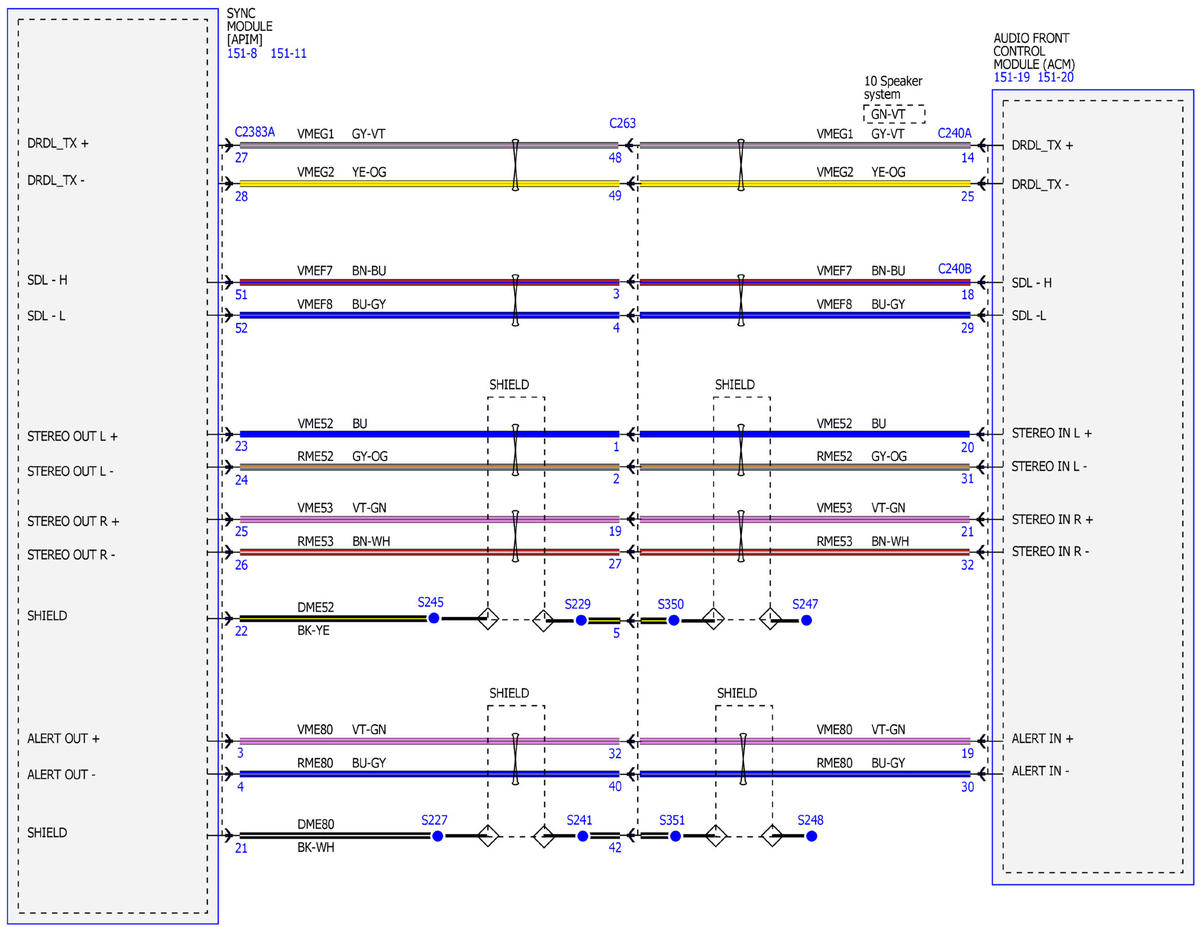

Fig 5: Audio System/Navigation - SYNC (5 Of 18)

GFDWR145195

Courtesy of FORD MOTOR COMPANY

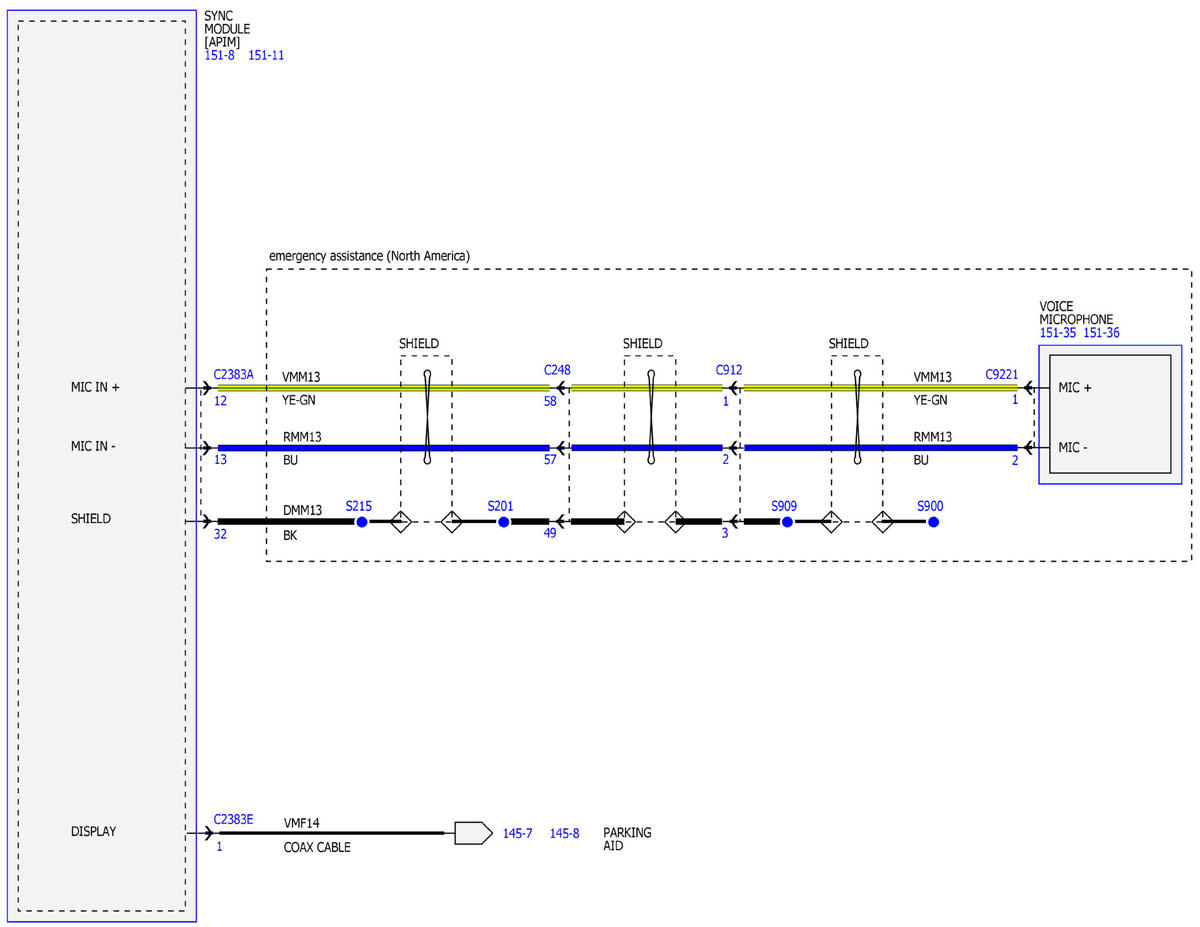

Fig 6: Audio System/Navigation - SYNC (6 Of 18)

GFDWR145196

Courtesy of FORD MOTOR COMPANY

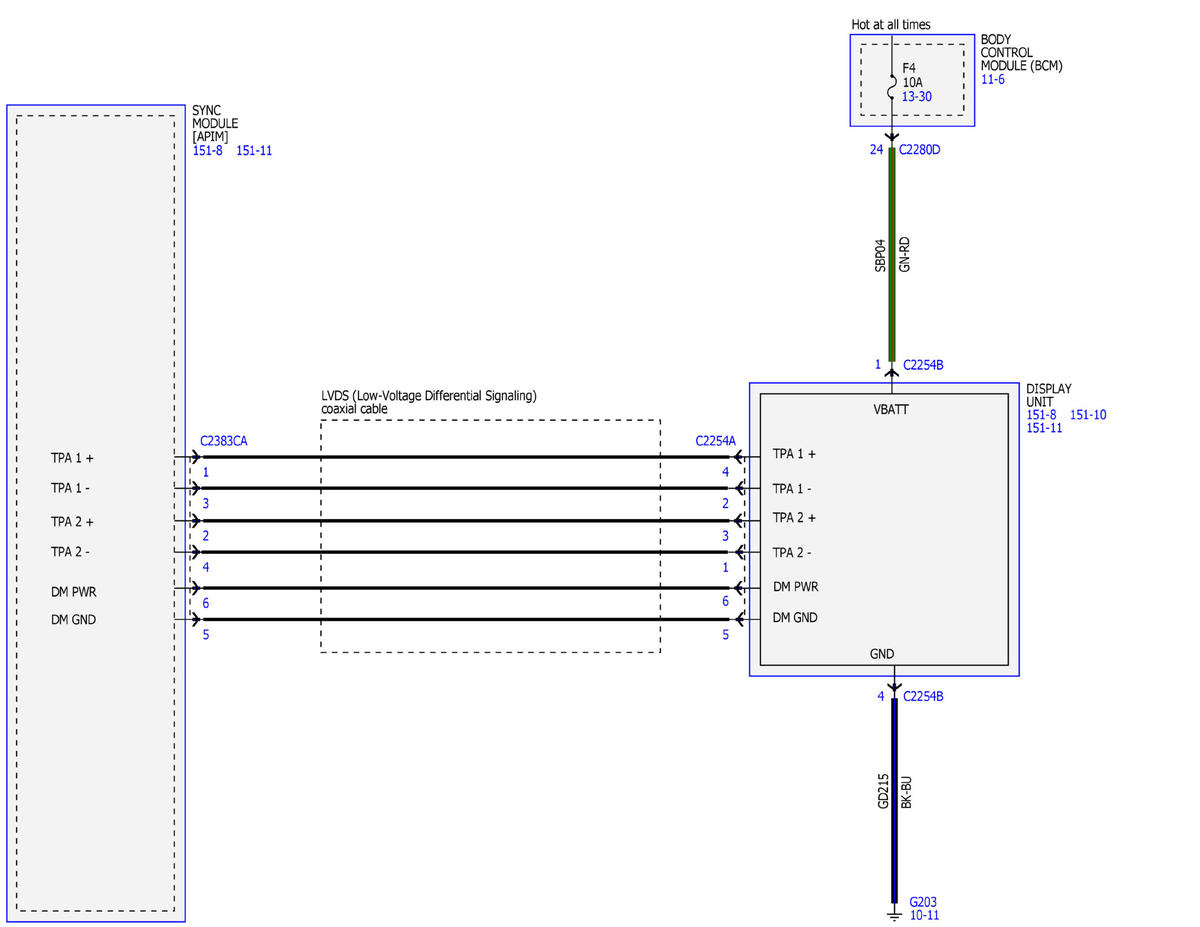

Fig 7: Audio System/Navigation - SYNC (7 Of 18)

GFDWR145197

Courtesy of FORD MOTOR COMPANY

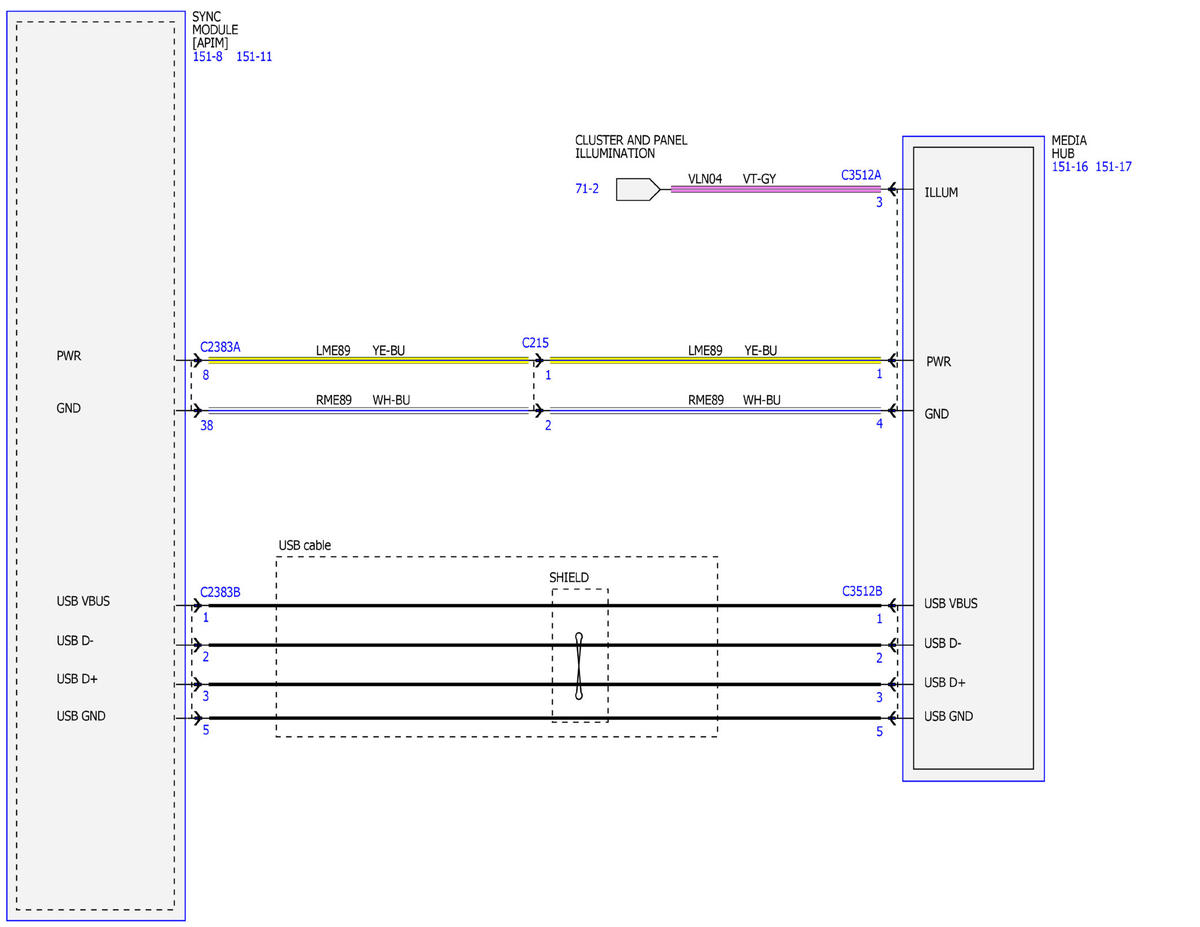

Fig 8: Audio System/Navigation - SYNC (8 Of 18)

GFDWR145198

Courtesy of FORD MOTOR COMPANY

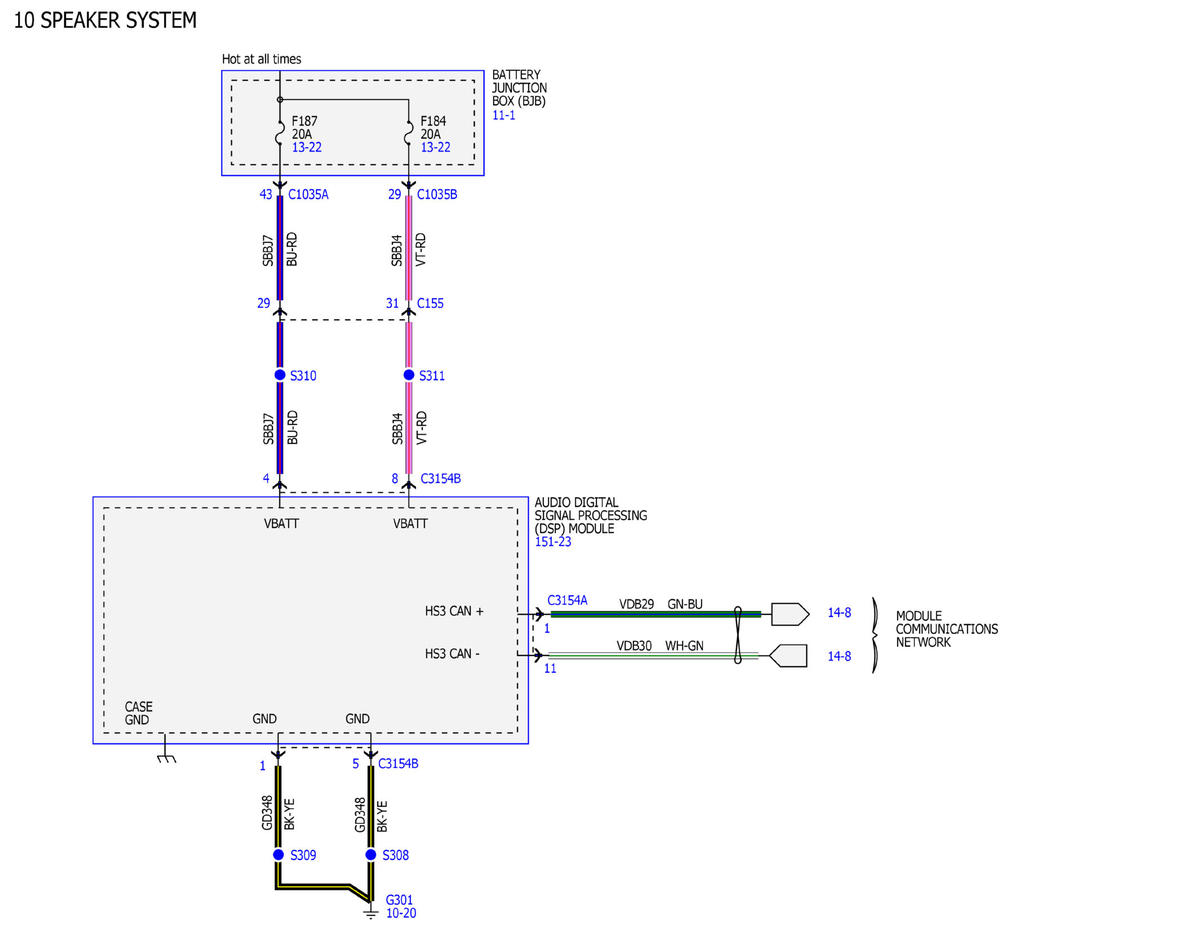

Fig 9: Audio System/Navigation - SYNC (9 Of 18)

GFDWR145199

Courtesy of FORD MOTOR COMPANY

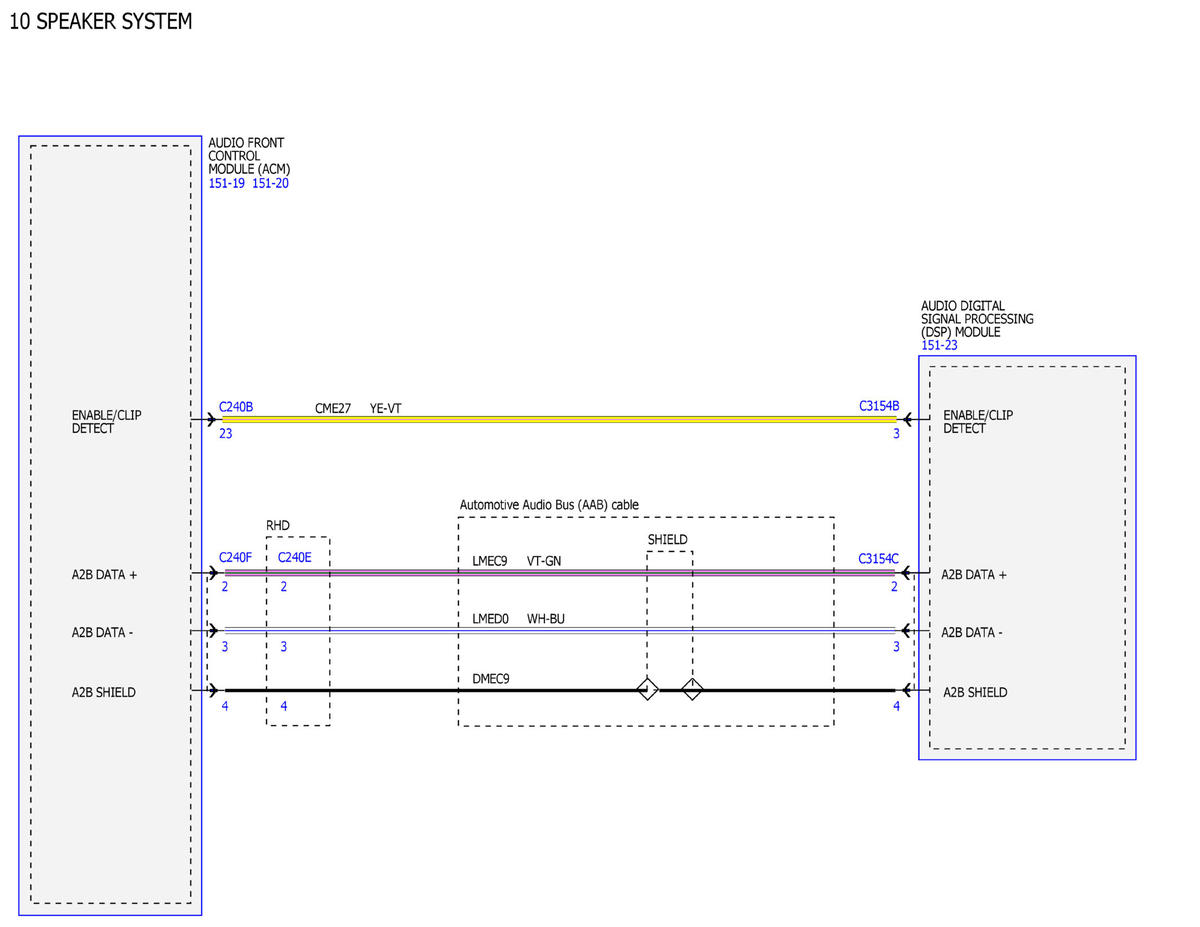

Fig 10: Audio System/Navigation - SYNC (10 Of 18)

GFDWR145183

Courtesy of FORD MOTOR COMPANY

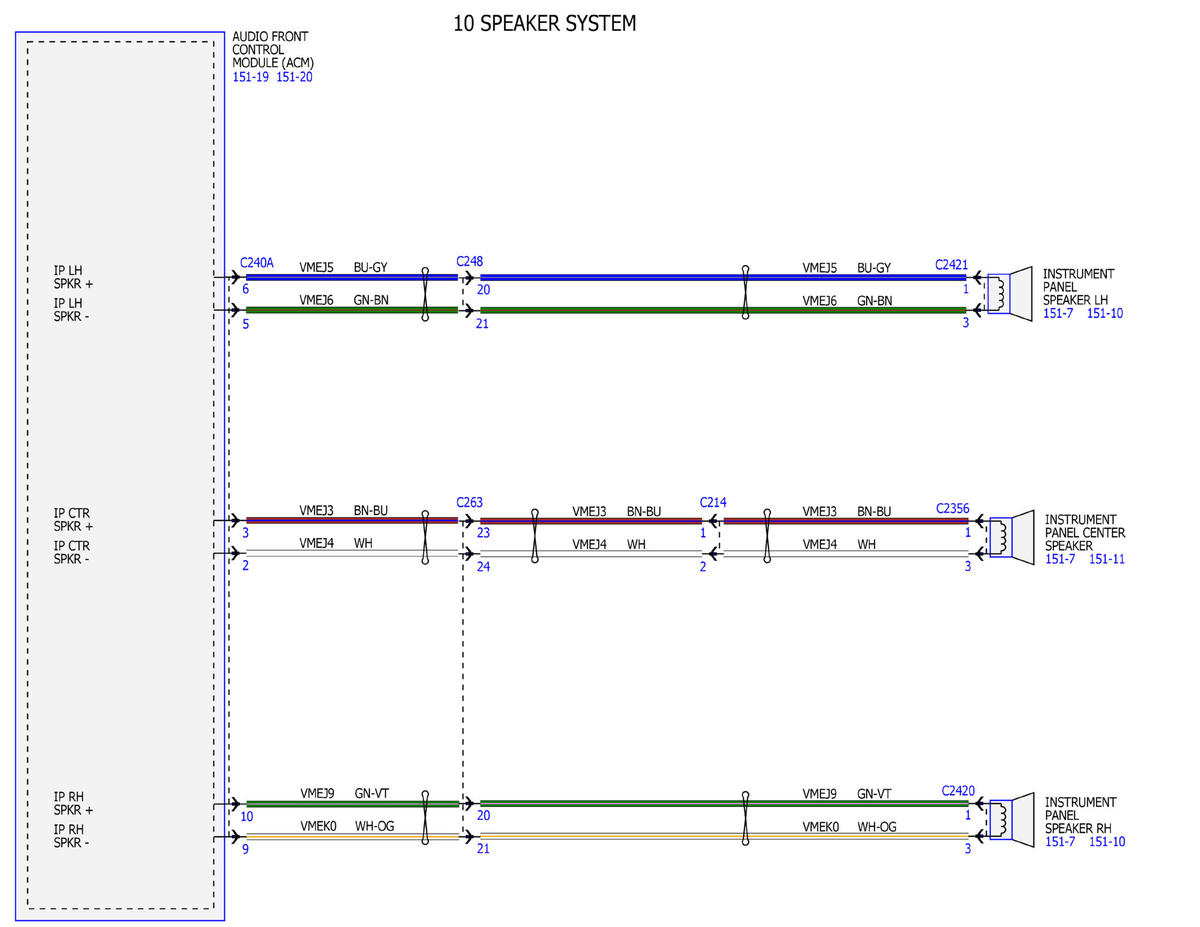

Fig 11: Audio System/Navigation - SYNC (11 Of 18)

GFDWR145184

Courtesy of FORD MOTOR COMPANY

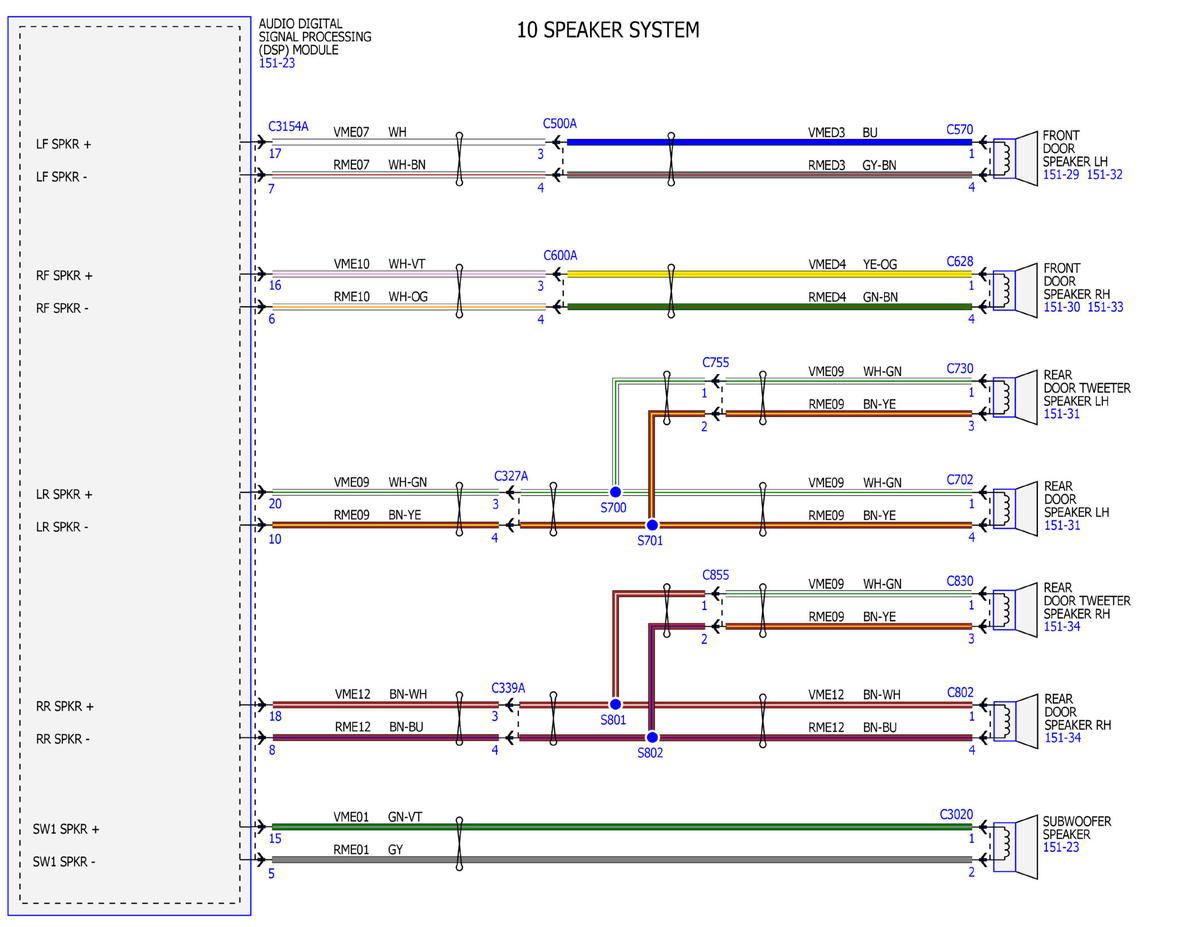

Fig 12: Audio System/Navigation - SYNC (12 Of 18)

GFDWR145185

Courtesy of FORD MOTOR COMPANY

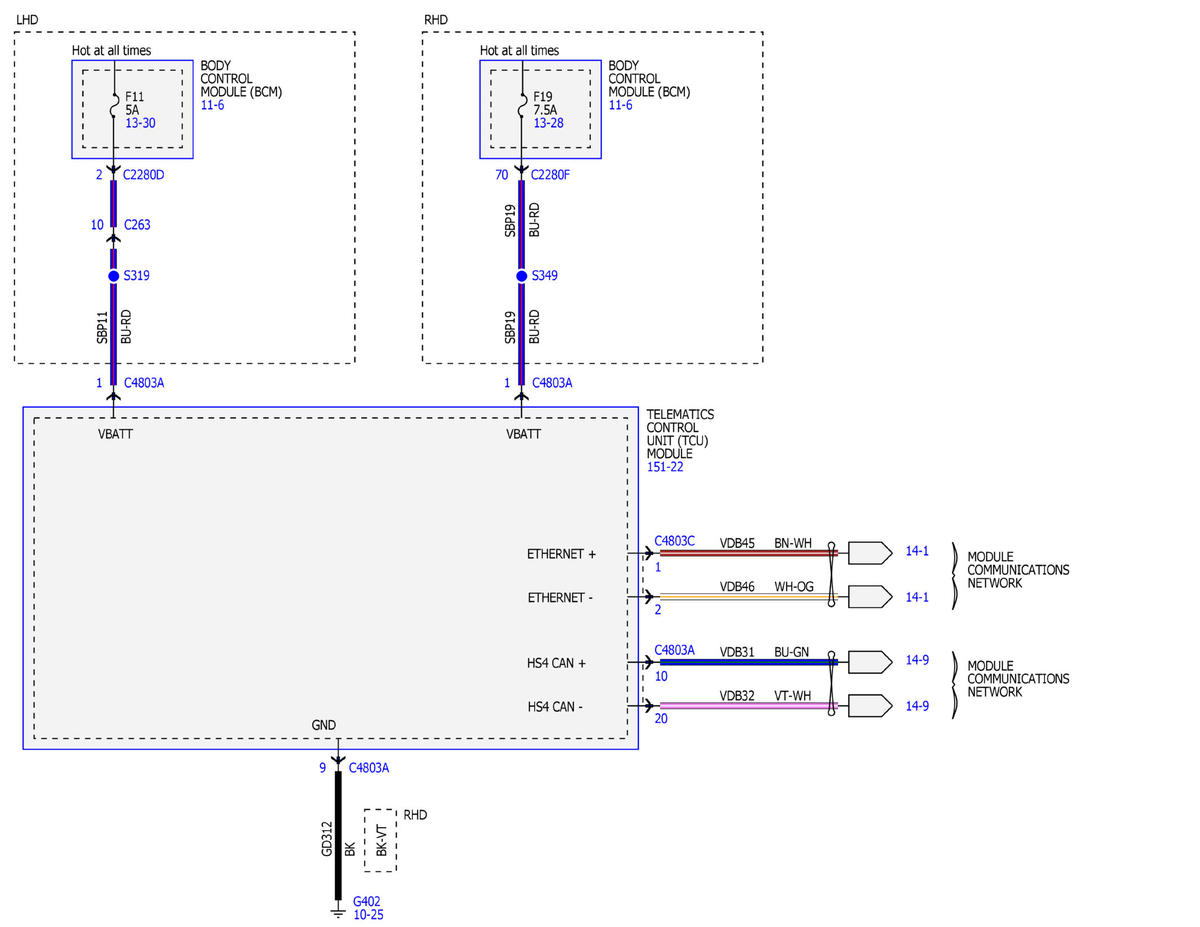

Fig 13: Audio System/Navigation - SYNC (13 Of 18)

GFDWR145186

Courtesy of FORD MOTOR COMPANY

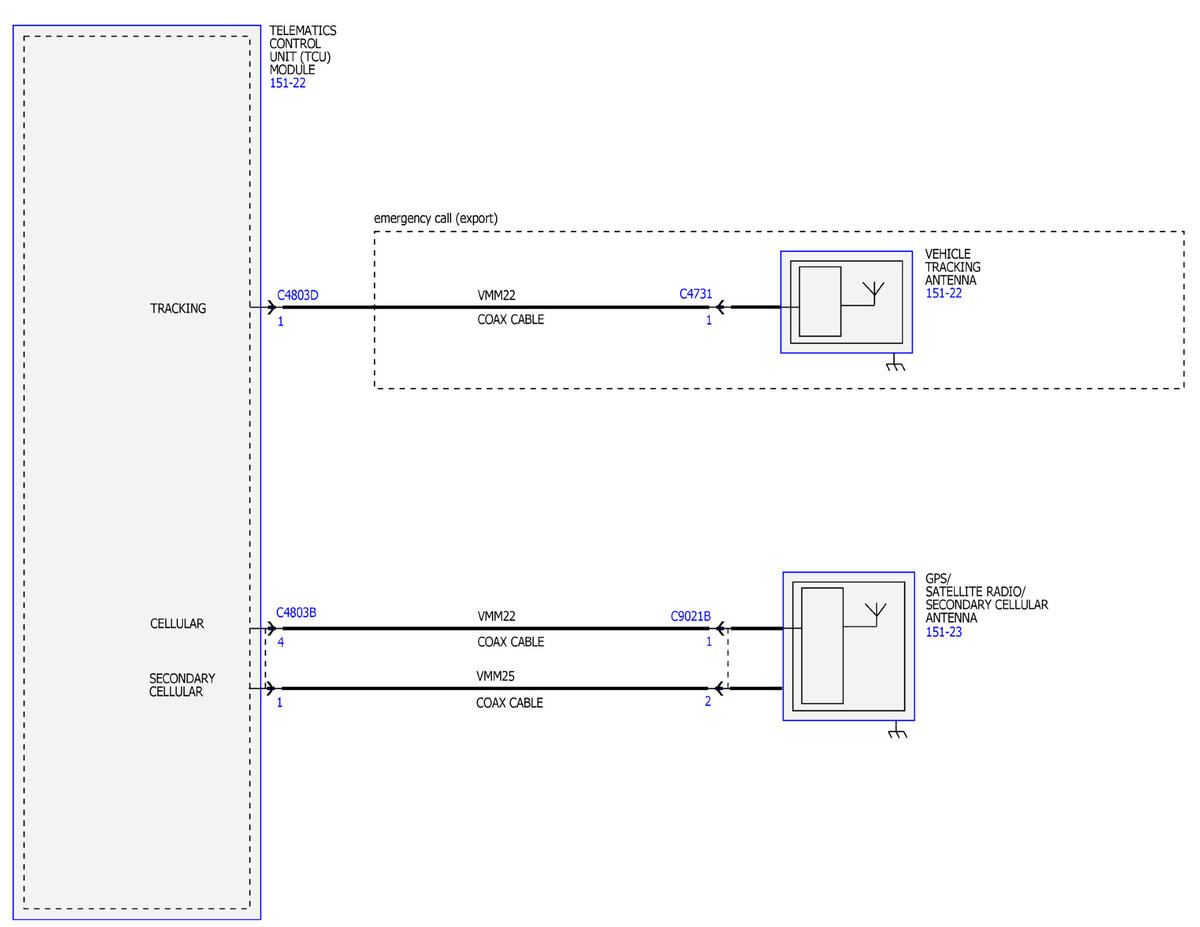

Fig 14: Audio System/Navigation - SYNC (14 Of 18)

GFDWR145187

Courtesy of FORD MOTOR COMPANY

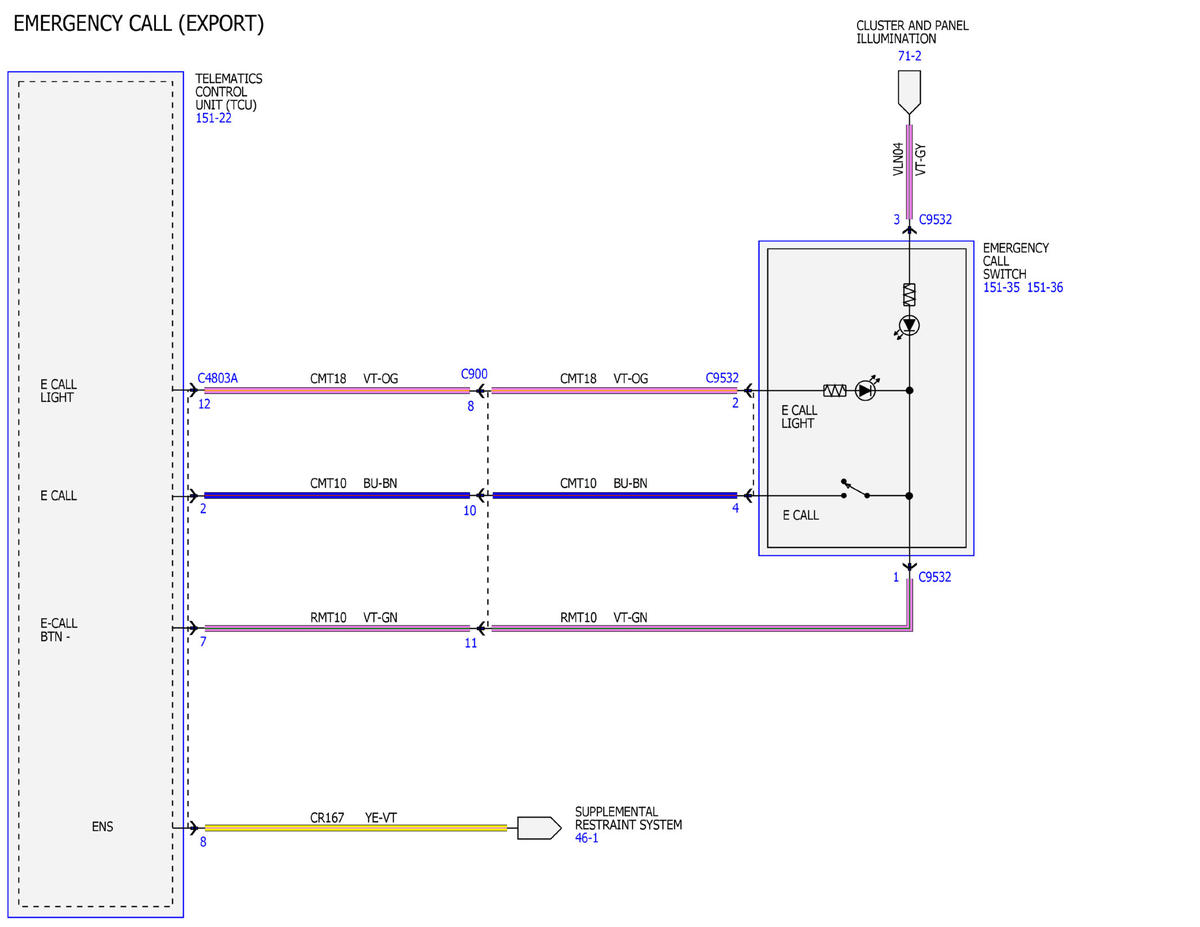

Fig 15: Audio System/Navigation - SYNC (15 Of 18)

GFDWR145188

Courtesy of FORD MOTOR COMPANY

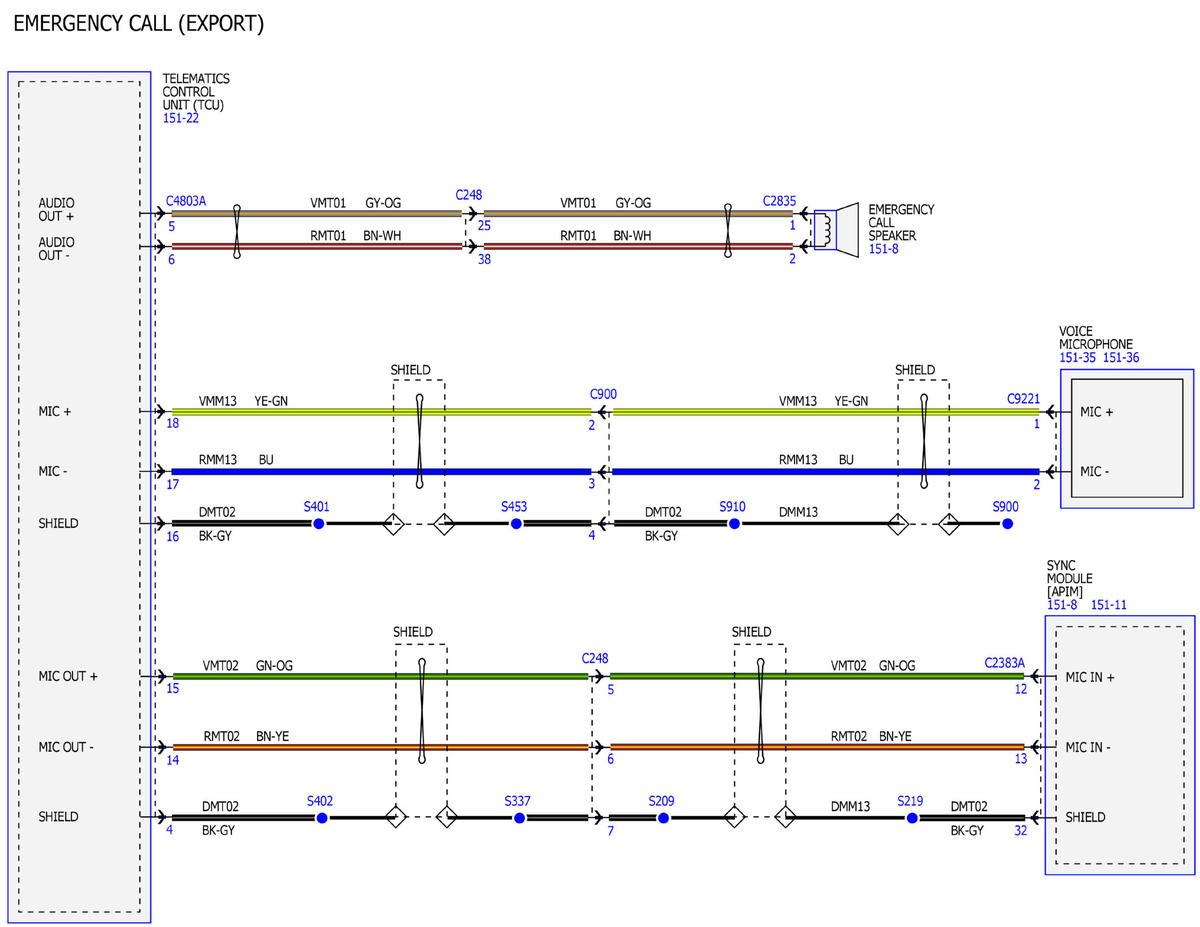

Fig 16: Audio System/Navigation - SYNC (16 Of 18)

GFDWR145189

Courtesy of FORD MOTOR COMPANY

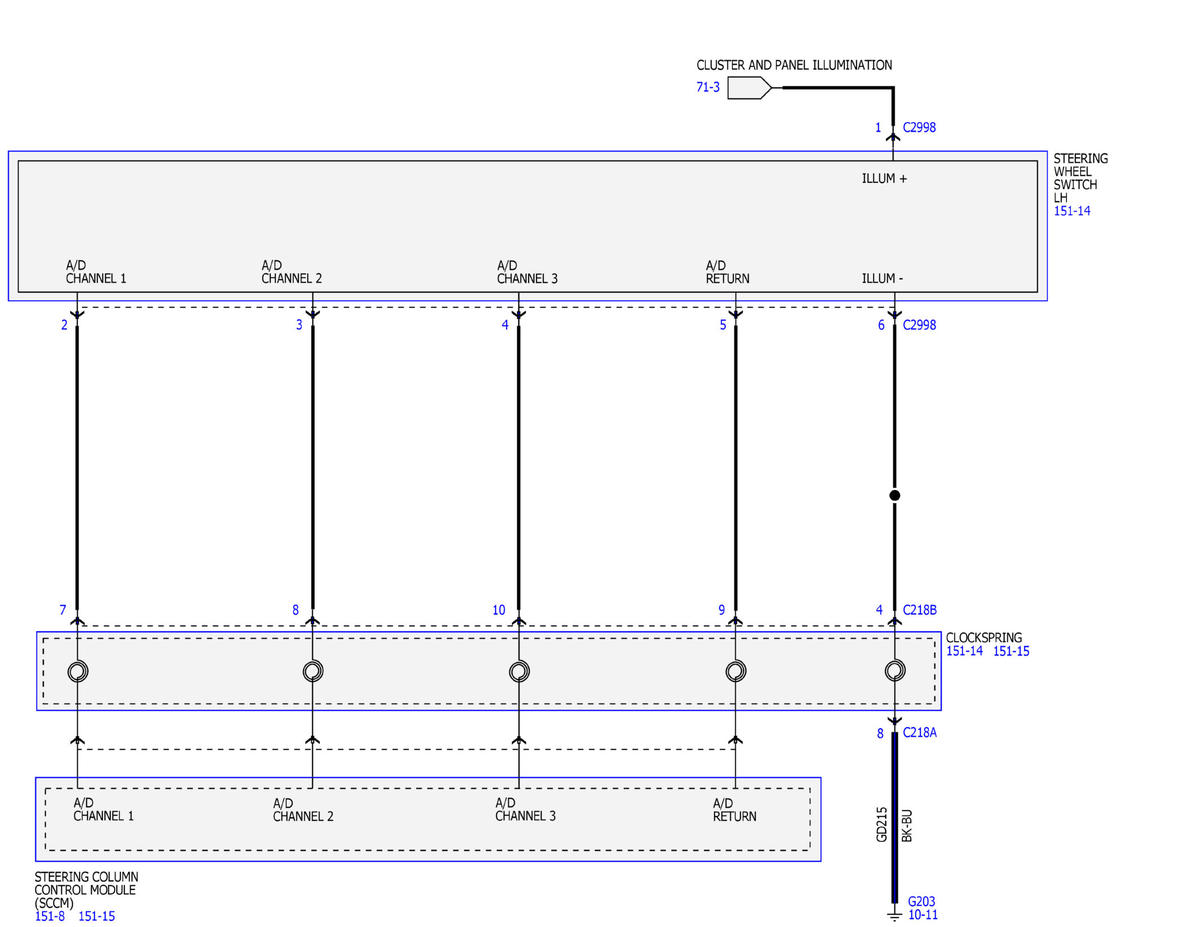

Fig 17: Audio System/Navigation - SYNC (17 Of 18)

GFDWR145190

Courtesy of FORD MOTOR COMPANY

Fig 18: Audio System/Navigation - SYNC (18 Of 18)

GFDWR145191

Courtesy of FORD MOTOR COMPANY
