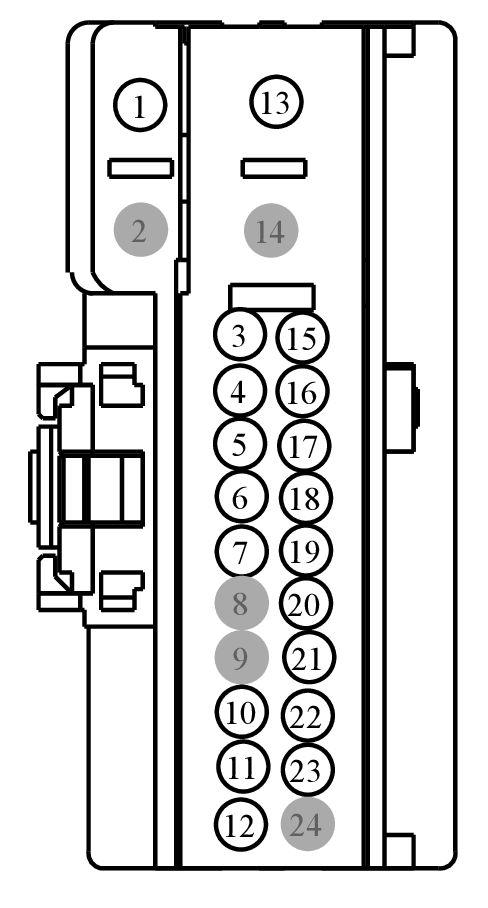

Connector End View C652B - PASSENGER DOOR MODULE (PDM)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C652B | PASSENGER DOOR MODULE (PDM) | BK | 14630 | part# N/A | See Below |
Pin: 5 - CLN32(BN-YE)-CTRL MOD. - PUDDLE LAMP RIGHT, Gauge 0.35
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| F8VB-14474-AA | EU2Z-14474-AB | 2.80 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPW52 (VT-WH) | 2.5 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # UP (IF POSITIVE) | F8VB-14474-AA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CRB07 (BN-WH) | 0.35 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER + | 8U5T-14474-BB | ||||
| 4 | CLS26 (BU-GY) | 0.35 | CTRL MOD. - TURN LAMP RIGHT MIRROR + | 8U5T-14474-BB | ||||
| 5 | CLN32 (BN-YE) | 0.35 | CTRL MOD. - PUDDLE LAMP RIGHT | 8U5T-14474-BB | ||||
| 6 | CPW24 (WH-VT) | 0.35 | SWITCH - POWER WINDOW REAR RIGHT # UP | 8U5T-14474-BB | ||||
| 7 | CPW23 (GY) | 0.35 | SWITCH - POWER WINDOW REAR RIGHT # DOWN | 8U5T-14474-BB | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | RRB07 (YE-VT) | 0.35 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER - | 8U5T-14474-BB | ||||
| 11 | RPW09 (BN-WH) | 0.35 | CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN | 8U5T-14474-BB | ||||
| 12 | CPW08 (GN-BU) | 0.35 | CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT ILLUMINATION | 8U5T-14474-BB | ||||
| 13 | CPW53 (YE-OG) | 2.5 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # DOWN (IF POSITIVE) | F8VB-14474-AA | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | CPM33 (WH-VT) | 0.35 | CTRL MOD. - RIGHT MIRROR RIGHT | 8U5T-14474-BB | ||||
| 16 | CPM34 (WH-BN) | 0.35 | CTRL MOD. - RIGHT MIRROR UP | 8U5T-14474-BB | ||||
| 17 | CPM40 (WH-OG) | 0.35 | CTRL MOD. - RIGHT MIRROR FOLD OUT (DRV) | 8U5T-14474-BB | ||||
| 18 | CPM07 (BN) | 0.35 | CTRL MOD. - RIGHT MIRROR FOLD IN | 8U5T-14474-BB | ||||
| 19 | CRD14 (WH-OG) | 0.35 | CTRL MOD. - HEATER MIRROR RIGHT | 8U5T-14474-BB | ||||
| 20 | RPM08 (GN-BU) | 0.35 | CTRL MOD. - RIGHT MIRROR RETURN | 8U5T-14474-BB | ||||
| 21 | VPM37 (BU-OG) | 0.35 | SENSOR - RIGHT MIRROR POSITION # HORIZONTAL | 8U5T-14474-BB | ||||
| 22 | VPM38 (BN-GN) | 0.35 | SENSOR - RIGHT MIRROR POSITION # VERTICAL | 8U5T-14474-BB | ||||
| 23 | LPM12 (BU) | 0.35 | CTRL MOD. - SENSORS MIRROR POSITION (RIGHT) + | 8U5T-14474-BB | ||||
| 24 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1608
Service Part Number:
KU2Z-14S411-UA
Gauge:
14 20
Pin material:
Tin (Greased) & Silver
Cavities:
24
Vehicle Uses:
- Module - Driver Door
- Module - Passenger Door
