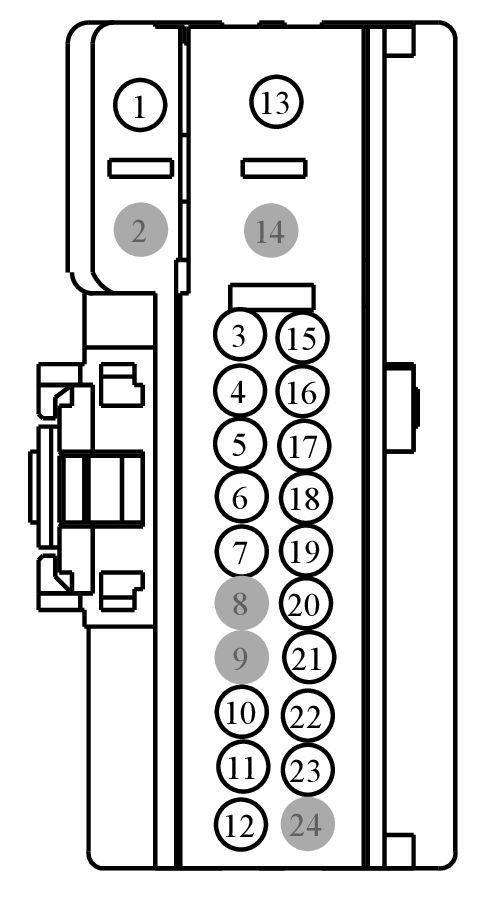

Connector End View C501B - DRIVER DOOR MODULE (DDM)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C501B | DRIVER DOOR MODULE (DDM) | BK | 14631 | part# N/A | See Below |
Pin: 5 - CLN31(VT-GN)-CTRL MOD. - PUDDLE LAMP LEFT, Gauge 0.35
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| F8VB-14474-AA | EU2Z-14474-AB | 2.80 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPW46 (GY-BN) | 2.5 | CTRL MOD. - WINDOW MOTOR REAR LEFT # UP (IF POSITIVE) | F8VB-14474-AA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CRB06 (GN-WH) | 0.35 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER + | 8U5T-14474-BB | ||||
| 4 | CLS22 (GN-BN) | 0.35 | CTRL MOD. - TURN LAMP LEFT MIRROR + | 8U5T-14474-BB | ||||
| 5 | CLN31 (VT-GN) | 0.35 | CTRL MOD. - PUDDLE LAMP LEFT | 8U5T-14474-BB | ||||
| 6 | CPW22 (GN-VT) | 0.35 | SWITCH - POWER WINDOW REAR LEFT # UP | 8U5T-14474-BB | ||||
| 7 | CPW21 (BN) | 0.35 | SWITCH - POWER WINDOW REAR LEFT # DOWN | 8U5T-14474-BB | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | RRB06 (GY-VT) | 0.35 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER - | 8U5T-14474-BB | ||||
| 11 | RPW07 (GY-OG) | 0.35 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN | 8U5T-14474-BB | ||||
| 12 | CPW06 (WH-BU) | 0.35 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT ILLUMINATION | 8U5T-14474-BB | ||||
| 13 | CPW47 (VT-OG) | 2.5 | CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN (IF POSITIVE) | F8VB-14474-AA | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | CPM28 (BU-BN) | 0.35 | CTRL MOD. - LEFT MIRROR RIGHT | 8U5T-14474-BB | ||||
| 16 | CPM29 (GN) | 0.35 | CTRL MOD. - LEFT MIRROR UP | 8U5T-14474-BB | ||||
| 17 | CPM39 (GN-VT) | 0.35 | CTRL MOD. - LEFT MIRROR FOLD OUT (DRV) | 8U5T-14474-BB | ||||
| 18 | CPM04 (VT-BN) | 0.35 | CTRL MOD. - LEFT MIRROR FOLD IN | 8U5T-14474-BB | ||||
| 19 | CRD13 (GN-VT) | 0.35 | CTRL MOD. - HEATER MIRROR LEFT | 8U5T-14474-BB | ||||
| 20 | RPM05 (VT) | 0.35 | CTRL MOD. - LEFT MIRROR RETURN | 8U5T-14474-BB | ||||
| 21 | VPM35 (YE-BU) | 0.35 | SENSOR - LEFT MIRROR POSITION # HORIZONTAL | 8U5T-14474-BB | ||||
| 22 | VPM36 (BN-YE) | 0.35 | SENSOR - LEFT MIRROR POSITION # VERTICAL | 8U5T-14474-BB | ||||
| 23 | LPM30 (GY) | 0.35 | CTRL MOD. - SENSORS MIRROR POSITION (LEFT) + | 8U5T-14474-BB | ||||
| 24 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1608
Service Part Number:
KU2Z-14S411-UA
Gauge:
14 20
Pin material:
Tin (Greased) & Silver
Cavities:
24
Vehicle Uses:
- Module - Driver Door
- Module - Passenger Door
