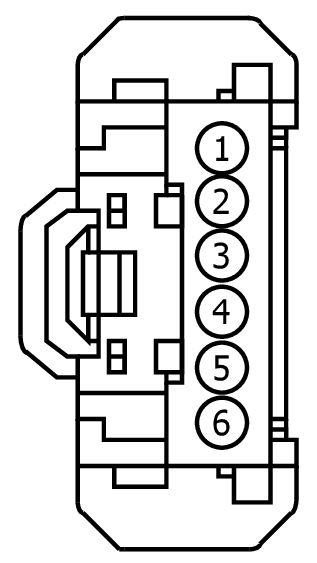

Connector End View C2999 - STEERING WHEEL SWITCH RH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2999 | STEERING WHEEL SWITCH RH | WH | PIA | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VLN04 (*) | * | CTRL MOD. - IP/SWITCH ILLUMINATION | N/A | ||||
| 2 | LX103 (*) | * | A/D CHANNEL 1 | N/A | ||||
| 3 | LX104 (*) | * | A/D CHANNEL 2 | N/A | ||||
| 4 | LX105 (*) | * | A/D CHANNEL 3 | N/A | ||||
| 5 | RX102 (*) | * | RETURN RIGHT | N/A | ||||
| 6 | GD215 (*) | * | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT | N/A | ||||
