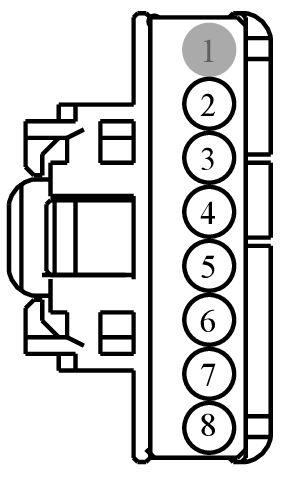

Connector End View C226A - STEERING COLUMN CONTROL MODULE (SCCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C226A	STEERING COLUMN CONTROL MODULE (SCCM)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-MA	DU2Z-14474-BA	0.64
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	SBP22 (BN-RD)	0.5	FUSE - 22 OR CIRCUIT BREAKER	9U5T-14474-MA
3	VX107 (YE-GY)	0.35	CTRL MOD. - FRONT WIPER / RAIN SENSOR LIN BUS	9U5T-14474-LA
4	CRW15 (BN-WH)	0.35	CTRL MOD. - FRONT WIPER HIGH	9U5T-14474-LA
5	VDB25 (GN-OG)	0.35	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14474-LA
6	VDB26 (GY-BU)	0.35	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14474-LA
7	VLN04 (VT-GY)	0.35	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-LA
8	GD214 (BK-BU)	0.5	GROUND - INSTRUMENT PANEL STRUCTURE	9U5T-14474-MA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1219

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DAAC

Gauge:

18

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Switch - Ambient Lighting Dimmer
• Switch - Door Lock (LH)
• Switch - Message Center
• Switch - Moon Roof/Sun Roof
• Switch - Seat Memory
