Side Parking Aid Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.

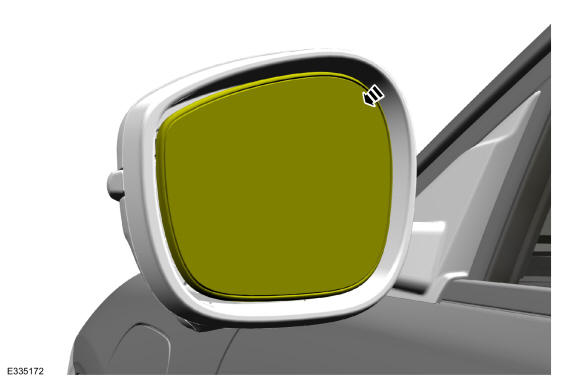

Position the side view mirror glass up and in.

Courtesy of FORD MOTOR COMPANY

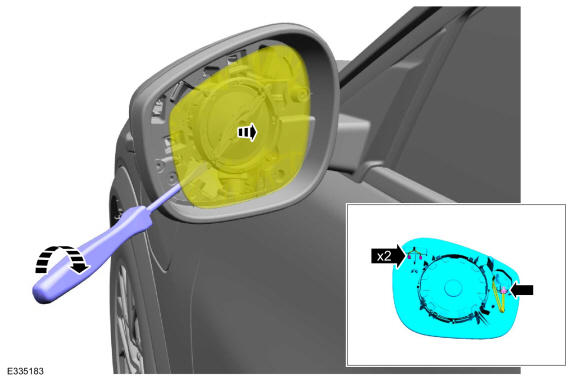

Release the tabs, position the mirror glass, disconnect the connectors and remove the exterior mirror glass.

Courtesy of FORD MOTOR COMPANY

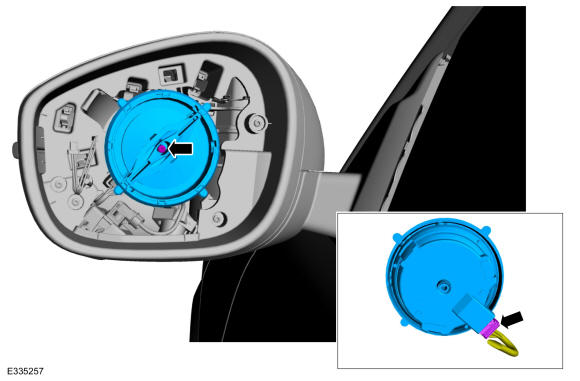

Remove the screw, position the motor out, disconnect the electrical connector and remove the exterior mirror motor.

Courtesy of FORD MOTOR COMPANY

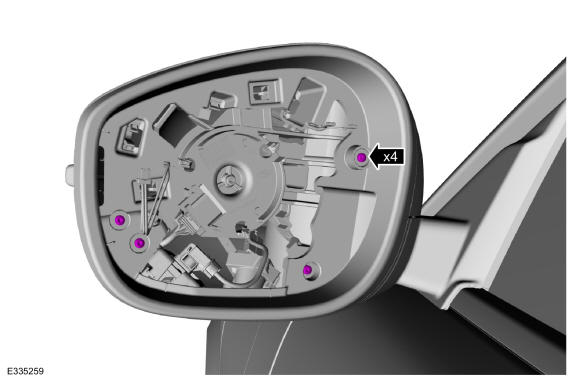

Remove the screws.

Courtesy of FORD MOTOR COMPANY

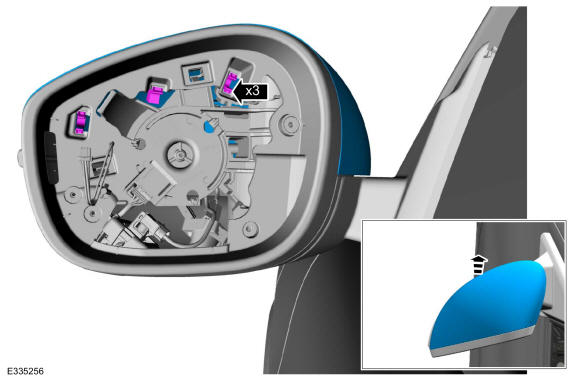

Release the tabs and remove the exterior mirror cover.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connector and remove the mirror mounted turn signal.

Courtesy of FORD MOTOR COMPANY

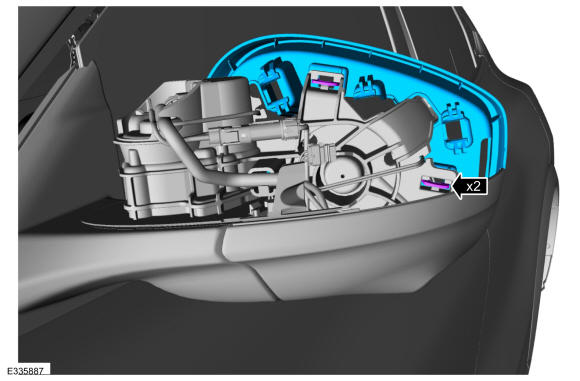

Release the tabs and remove the exterior mirror bezel.

Courtesy of FORD MOTOR COMPANY

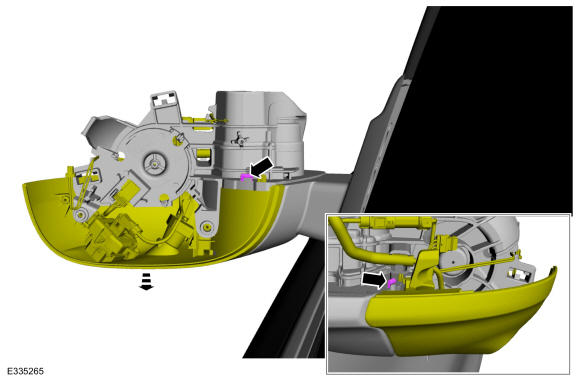

Release the tabs, separate the lower cover from the inner bezel screw collar and position the lower cover down.

Courtesy of FORD MOTOR COMPANY

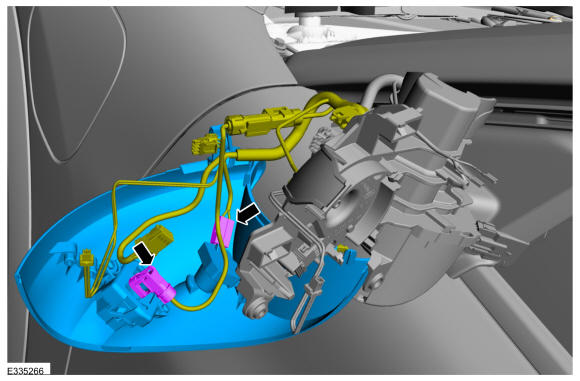

Disconnect the electrical connectors and remove the exterior mirror lower cover.

Courtesy of FORD MOTOR COMPANY

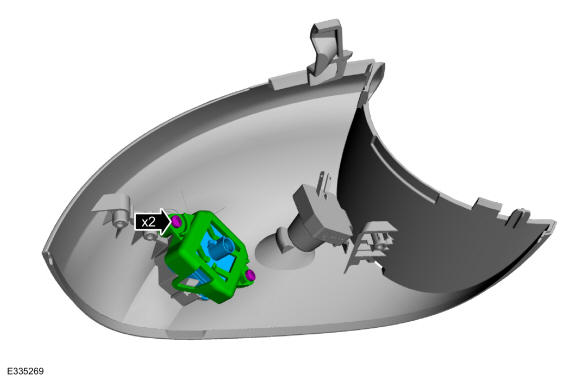

Remove the screws, the bracket and the side parking aid camera.

Courtesy of FORD MOTOR COMPANY
