Rear Parking Aid Camera: Removal

  1. Remove the rear window wiper motor. Refer to: Rear Window Wiper Motor .

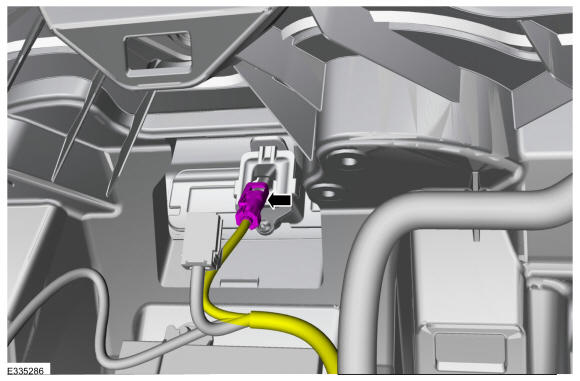

  2. Disconnect the electrical connector.
    GFD609732Courtesy of FORD MOTOR COMPANY

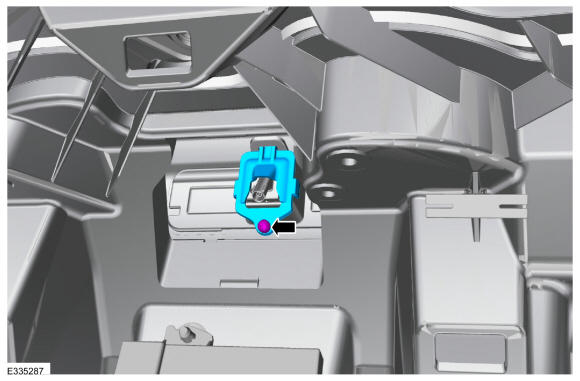

  3. Remove the screw and the rear parking aid camera bracket.
    GFD609733Courtesy of FORD MOTOR COMPANY

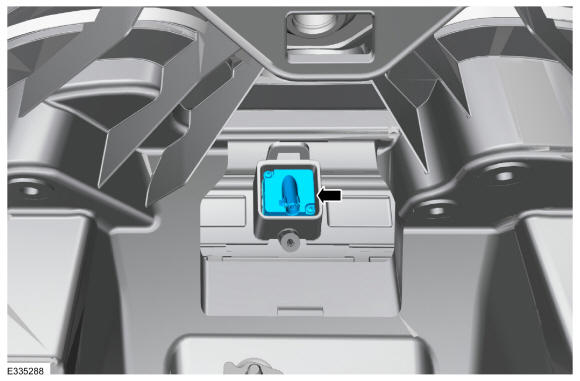

  4. Remove the rear parking aid camera.
GFD609734Courtesy of FORD MOTOR COMPANY
