Front Parking Aid Camera: Removal

  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

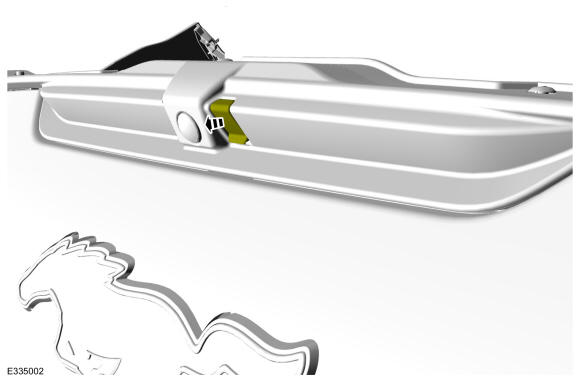

  2. Position the front washer nozzle and cover out.
    GFD609727Courtesy of FORD MOTOR COMPANY

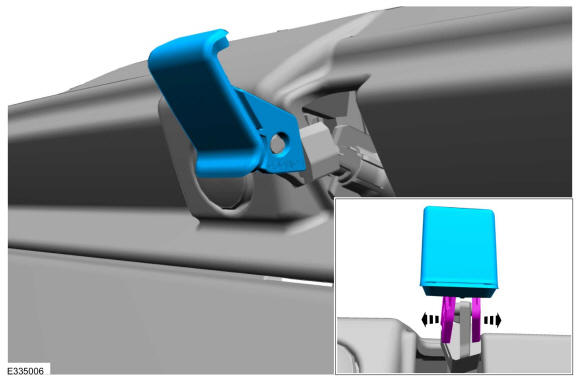

  3. Flex the cover tabs and remove the front washer nozzle cover.
    GFD609728Courtesy of FORD MOTOR COMPANY

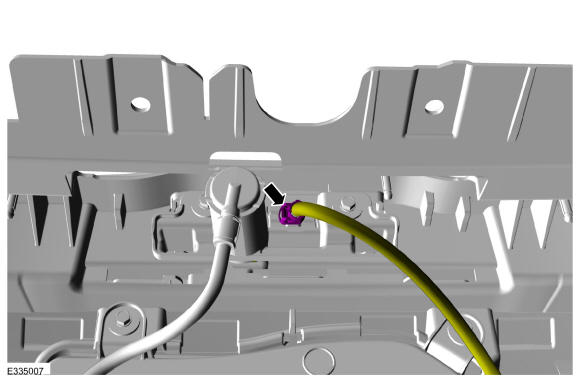

  4. Disconnect the front parking aid camera electrical connector.
    GFD609729Courtesy of FORD MOTOR COMPANY

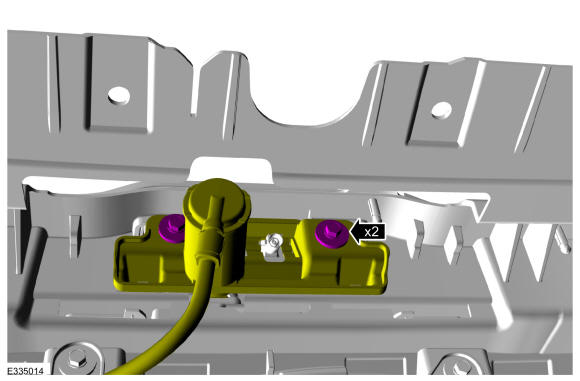

  5. Remove the screws and position the front parking aid camera washer and bracket aside.
    GFD609730Courtesy of FORD MOTOR COMPANY

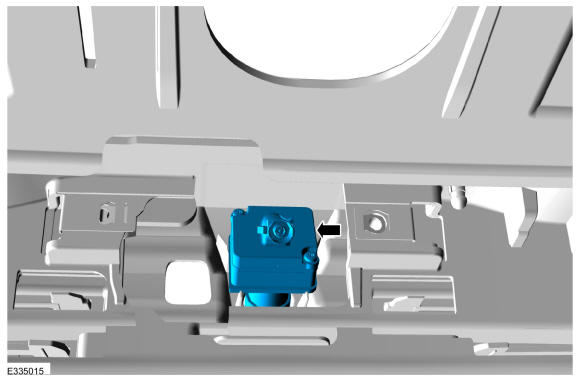

  6. Remove the front parking aid camera.
GFD609731Courtesy of FORD MOTOR COMPANY
