Active Park Assist Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

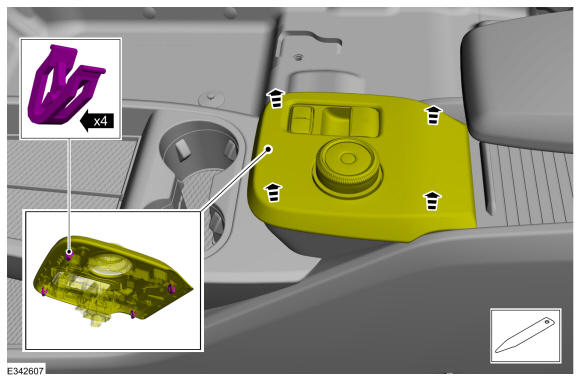

Release the clips and position the floor console center finish bezel panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

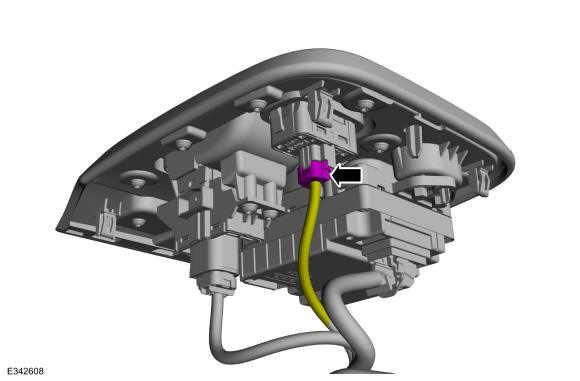

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

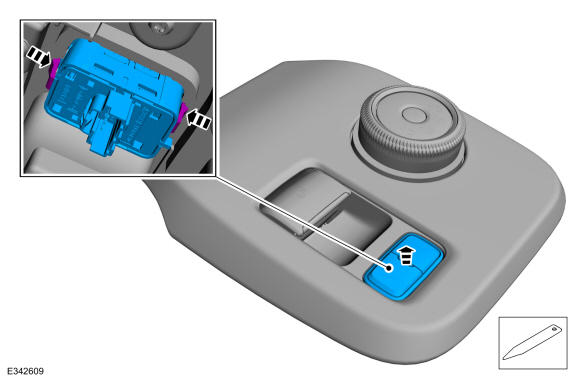

Release the tabs and remove the active park assist switch. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
