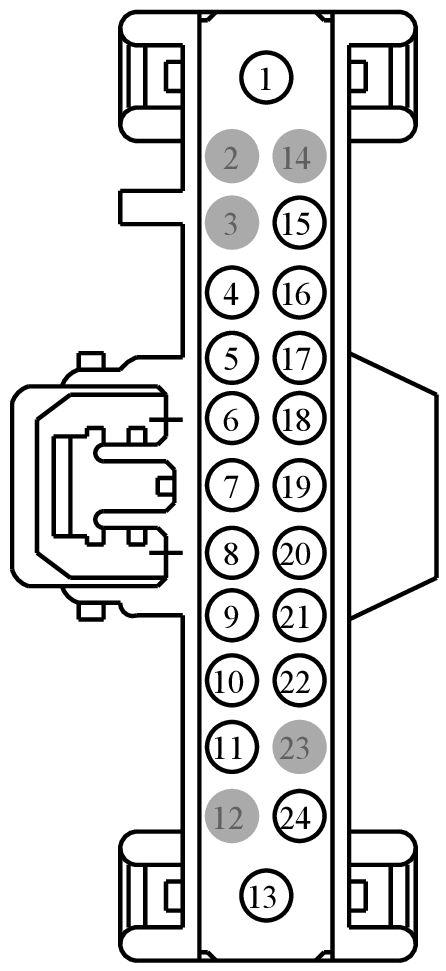

Connector End View C4242A - IMAGE PROCESSING MODULE A (IPMA)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C4242A | IMAGE PROCESSING MODULE A (IPMA) | BK | 14A005 | part# N/A | See Below |
Pin: 7 - VMF29(BU)-SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE, Gauge 0.35
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-BBA | DU2Z-14474-EA | 2.80 |
| DU5T-14474-EAB | DU2Z-14474-CA | 0.64 |
| 97BG-14474-BCA | DU2Z-14474-EA | 2.80 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB25 (WH-OG) | 1 | FUSE - 25 OR CIRCUIT BREAKER | 97BG-14474-BBA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | RMP07 (GN-WH) | 0.35 | CTRL MOD. - PARKING AID # SENSORS REAR - | DU5T-14474-EAB | ||||
| 5 | VMF27 (YE-VT) | 0.35 | SENSOR - PARKING AID # REAR # (RIGHT INNER) | DU5T-14474-EAB | ||||
| 6 | VMF28 (VT-OG) | 0.35 | SENSOR - PARKING AID # REAR # (RIGHT OUTER) | DU5T-14474-EAB | ||||
| 7 | VMF29 (BU) | 0.35 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE | DU5T-14474-EAB | ||||
| 8 | VMF30 (GY-VT) | 0.35 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE | DU5T-14474-EAB | ||||
| 9 | VMF23 (WH) | 0.35 | SENSOR - PARKING AID # FRONT # (RIGHT INNER) | DU5T-14474-EAB | ||||
| 10 | VMF24 (BN-WH) | 0.35 | SENSOR - PARKING AID # FRONT # (RIGHT OUTER) | DU5T-14474-EAB | ||||
| 11 | RMP06 (YE-OG) | 0.35 | CTRL MOD. - PARKING AID # SENSORS FRONT - | DU5T-14474-EAB | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | GD312 (BK) | 1.5 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 2ND POINT | 97BG-14474-BCA|97BG-14474-BBA | ||||
| 13 | GD312 (BK) | 1 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 2ND POINT | 97BG-14474-BCA|97BG-14474-BBA | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | LMP07 (BU-WH) | 0.35 | CTRL MOD. - PARKING AID # SENSORS REAR + | DU5T-14474-EAB | ||||
| 16 | VMF26 (BU-GY) | 0.35 | SENSOR - PARKING AID # REAR # (LEFT INNER) | DU5T-14474-EAB | ||||
| 17 | VMF25 (GY-BN) | 0.35 | SENSOR - PARKING AID # REAR # (LEFT OUTER) | DU5T-14474-EAB | ||||
| 18 | VMF32 (BU-BN) | 0.35 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR RIGHT SIDE | DU5T-14474-EAB | ||||
| 19 | VMF31 (BU-GN) | 0.35 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR LEFT SIDE | DU5T-14474-EAB | ||||
| 20 | VMF22 (VT-GN) | 0.35 | SENSOR - PARKING AID # FRONT # (LEFT INNER) | DU5T-14474-EAB | ||||
| 21 | VMF21 (GN-OG) | 0.35 | SENSOR - PARKING AID # FRONT # (LEFT OUTER) | DU5T-14474-EAB | ||||
| 22 | LMP06 (VT-GY) | 0.35 | CTRL MOD. - PARKING AID # SENSORS FRONT + | DU5T-14474-EAB | ||||
| 23 | * | * | Not Used | N/A | ||||
| 24 | CMP18 (GN-BN) | 0.35 | SWITCH - PARKING AID | DU5T-14474-EAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1533
Service Part Number:
FU2Z-14S411-ALB
Gauge:
14 20
Pin material:
Tin & Silver
Cavities:
24
Vehicle Uses:
- DVD Player
- Module - Audio Control
- Module - Body Control
- Module - Fuel and Damper Control
- Module - Gateway
- Radio
- Test Connector - Diagnostic
Pigtail Kit Part Number WPT-1440
Service Part Number:
FU2Z-14S411-ALA
Gauge:
14 20
Pin material:
Tin & Silver
Cavities:
24
Vehicle Uses:
- DVD Player
- Module - Audio Control
- Module - Body Control
- Module Gateway
- Radio
- Test Connector - Diagnostic
