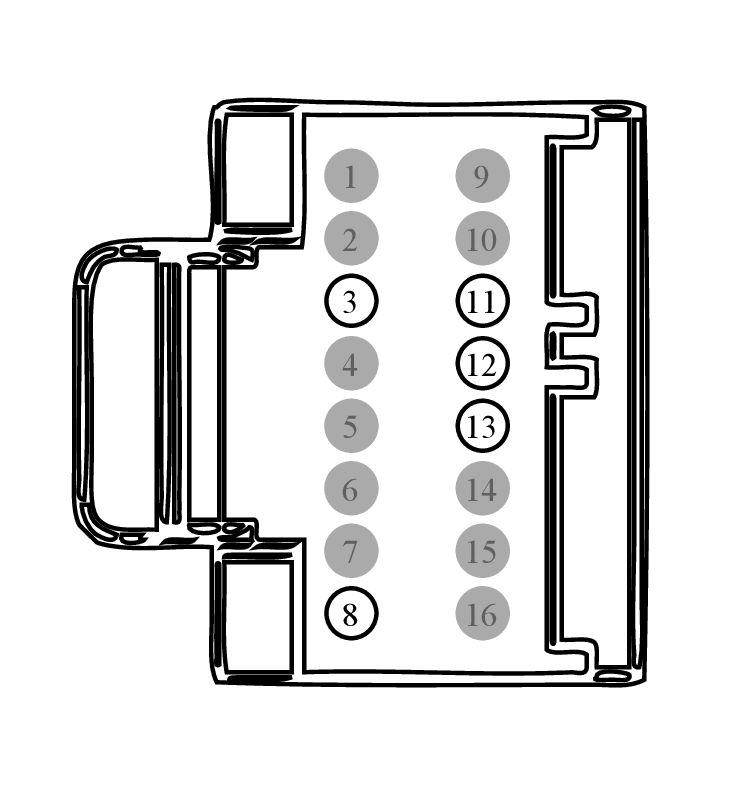

Connector End View C220A - INSTRUMENT PANEL CLUSTER (IPC)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C220A	INSTRUMENT PANEL CLUSTER (IPC)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
9U5T-14474-YB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	GD214 (BK-BU)	0.5	GROUND - INSTRUMENT PANEL STRUCTURE	9U5T-14474-DB
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	SBP22 (BN-RD)	0.5	FUSE - 22 OR CIRCUIT BREAKER	9U5T-14474-DB
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	CMC20 (GY)	0.5	SWITCH - LOW LEVEL WASHER FLUID	9U5T-14474-DB
12	VDB29 (GN-BU)	0.13	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	9U5T-14474-YB
13	VDB30 (WH-GN)	0.13	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	9U5T-14474-YB
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1560

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-APA

Gauge:

20

Pin material:

Tin

Cavities:

16

Vehicle Uses:

• Instrument Cluster
• Module - Seat Memory
• Module - Upfitter Interface
• Radio - Amplifier
